Скачать или смотреть 【DIY】我做出了世界最小的游戏手柄 | I Built the World’s Smallest Game Controller

我制作了全球最小的微型游戏手柄，同时制作了TMR摇杆，最终实现完整核心功能。视频展示了从整体项目流程、3D 打印、CNC、PCB设计及焊接、摇杆制作到组装的过程，并进行了 Steam Deck 实机测试。
I have created the world's smallest micro game controller, featuring custom-built TMR joysticks and fully functional core controls. This video documents the entire project lifecycle: from initial 3D modeling and structural design to CNC machining, 3D printing, and manual SMT soldering. We’ll dive into the fabrication of the TMR joysticks, the final assembly, and a real-world gameplay test on the Steam Deck.

00:00 开场
00:13 前言：微型手柄的设计初衷 | Intro: The Miniature Idea
01:33 功能实现对比：Xbox手柄与微型控制器 | Xbox vs. Micro: Functionality
04:58 主要辅助制作设备 | Primary Fabrication Equipment
06:03 3D建模与结构堆叠 | 3D Modeling & Structural Stacking
07:07 微型摇杆设计细节 | Micro-Joystick Design
07:23 确定 1:3.65 比例 | 1:3.65 Scale
08:13 PCB 工艺与原理展示 | PCB Design & Electronics
09:05 3D 打印 | 3D Printing the Shell
09:24 细节及表面处理 | Sanding & Surface Finishing
10:28 按键硅胶翻模 | Silicone Button Molding
10:42 View/Menu/Share 键制作 | Crafting View/Menu/Share Button
11:08 ABXY 三色按键制作 | Crafting ABXY Three-Color Buttons
12:38 PCB 元器件焊接 | PCB Component Soldering
13:47 传感器选型与功耗测试 | Sensor Selection & Power Test
14:27 CNC 加工摇杆外壳 | CNC Machining the Joystick Housing
15:56 点焊与结构测试 | Spot Welding & Structural Test
17:18 微型摇杆展示 | Micro-Joystick Showcase
17:35 各部件展示 | Final Component Display
17:59 微型手柄组装 | Micro Controller Assembly
22:57 3D 渲染组成动画 | 3D Exploded View Animation
23:09 微型手柄成品展示 | Finished Product Showcase
23:41 固件烧录与连接测试 | Firmware Flashing & Connectivity
24:22 Steam Deck 菜单与按键测试 | Steam Deck Interface & Input Test
🎮 游戏测试 / Gaming Test
27:22 忍者神龟：施莱德的复仇 | TMNT: Shredder's Revenge
27:35 怪物猎人：世界 | Monster Hunter: World
27:52 最终幻想VII：重制版 | Final Fantasy VII Remake
28:33 街头霸王 V | Street Fighter V
29:41 我的世界：基岩版 | Minecraft: Bedrock Edition
30:18 极品飞车：最高通缉 | Need for Speed: Most Wanted
31:01 极限竞速：地平线 5 | Forza Horizon 5
32:44 黑神话：悟空 | Black Myth: Wukong
35:28 结语 | Conclusion
35:54 片尾 | Outro

━━ 关于作者 ━━
我是 MEAKYI，一名来自中国的 DIY 爱好者。某天饭后突发奇想：我能不能制作出一款世界上最小的、拥有完整核心功能的微型游戏控制器？

━━ 关于项目 ━━
这个项目我断断续续耗时 5 个月，除了控制器本身相关的制作，还包括了全过程拍摄、剪辑以及部分 3D 动画渲染。由于我并非专业人士，视频中的大部分内容对我来说都是首次尝试，因此投入了大量时间进行可行性验证。

━━ 技术规格 ━━

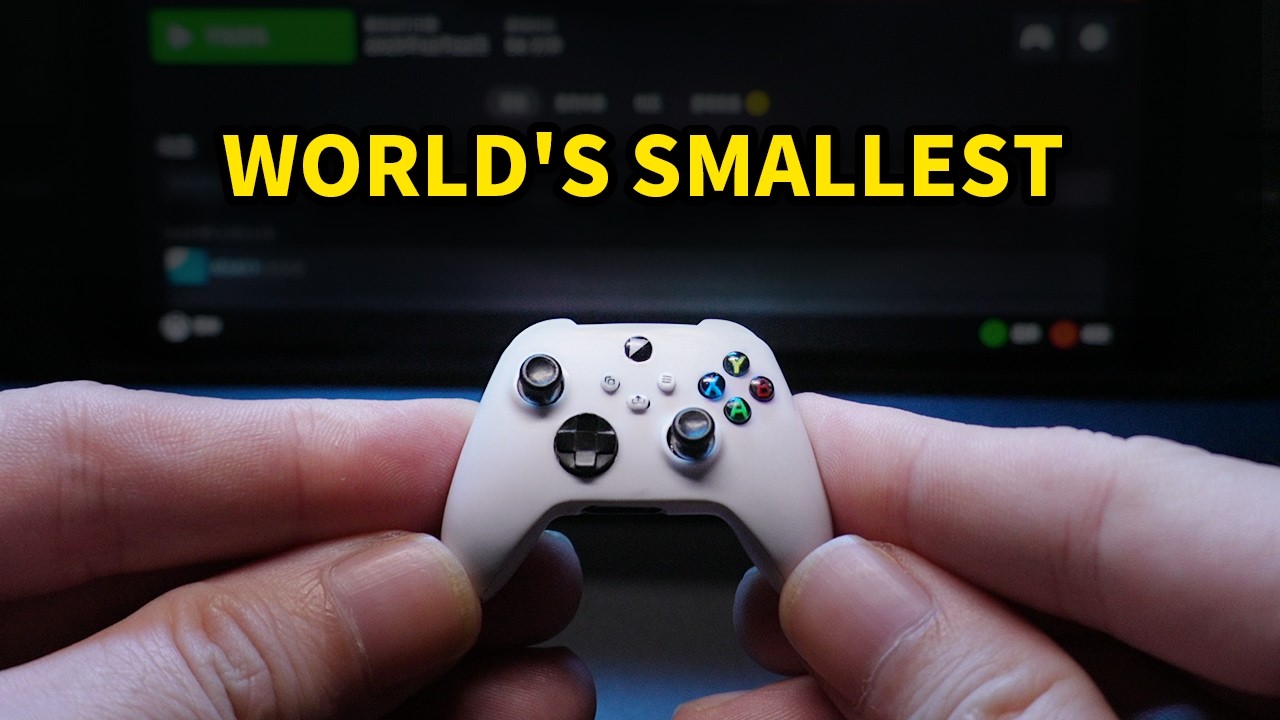

微型手柄比例: 1:3.65 ( Xbox Scale Ref )
尺寸: 42.4 x 29.5 x 18 mm
主控: nRF52832 ( BLE 5.0 )
输入: 支持全功能按键、摇杆、扳机及震动触觉反馈
TMR 隧道磁阻传感器微型摇杆
电池: 30mAh（ 0.11Wh ）
电路: 定制 PCB
制作工艺: 3D 打印、CNC 加工、点焊、PCB 元件焊接
耗时: 5 个月

为了实现 1:3.65（Xbox Scale Reference）的极限尺寸，本设计保留了核心游戏功能，包括：
完整按键输入
双摇杆（支持线性输入与按压）
线性模拟扳机
振动触觉反馈
受体积与内部空间限制，省略了非核心功能，包括：
扳机独立震动（Impulse Trigger Rumble）
附件扩展接口
3.5mm 音频接口
━━ About the Creator ━━
I'm MEAKYI, a DIY enthusiast from China. One day, a spontaneous idea sparked after dinner: "Could I build the world's smallest functional game controller?"

━━ About this Project ━━
This project took me 5 months of intermittent work. It wasn’t just about the hardware; I had to learn everything from scratch—filming the process, video editing, and even 3D animation rendering. As I'm not a professional, much of this content represents my first attempts, requiring extensive time to verify and test each possibility.

━━ Technical Specs ━━
Micro Controller Scale : 1:3.65 ( Xbox Scale Ref )
Dimensions : 42.4 x 29.5 x 18 mm
Main Controller : nRF52832 ( BLE 5.0 )
Input/haptics : Fully functional buttons, joysticks, triggers, and haptics
Micro Joystick Custom TMR Sensor
Battery : 30mAh（ 0.11Wh ）
Circuit: Custom Designed PCB
Manufacturing : 3D Printing, CNC Machining, and Precision PCB Soldering
Build Time: 5 Months

To achieve the extreme 1:3.65 scale (Xbox scale reference), this controller retains all core gaming functions, including:
Full button input
Dual analog joysticks (with linear input and press)
Linear analog triggers
Haptic vibration feedback
Due to size and internal space constraints, non-core features were omitted, including:
Impulse Trigger Rumble
Accessory expansion port
3.5mm audio jack

━━ Originality Statement / 原创声明 ━━
All footage, design, modeling, circuitry, and animation in this video are entirely original and independently created by the author.
The external appearance is inspired by the Xbox Wireless Controller ( Model 1914 ). However, to achieve a 1:3.65 miniature scale, all internal structures and components were completely redesigned and adapted for 3D printing.
Any third-party trademarks, product appearances, or images shown in the video are used solely for functional explanation and comparison purposes, and do not imply any affiliation or endorsement.

━━ Music & Sound Effects / 音乐与音效 ━━
Suno AI (Paid License): Used for background BGM
YouTube Audio Library: Used for 3D animation sequences ( No Attribution Required )
