GameChange Solar MaxSpan™ with Preassembled TwistClamps™
Increases Install Speed 400%

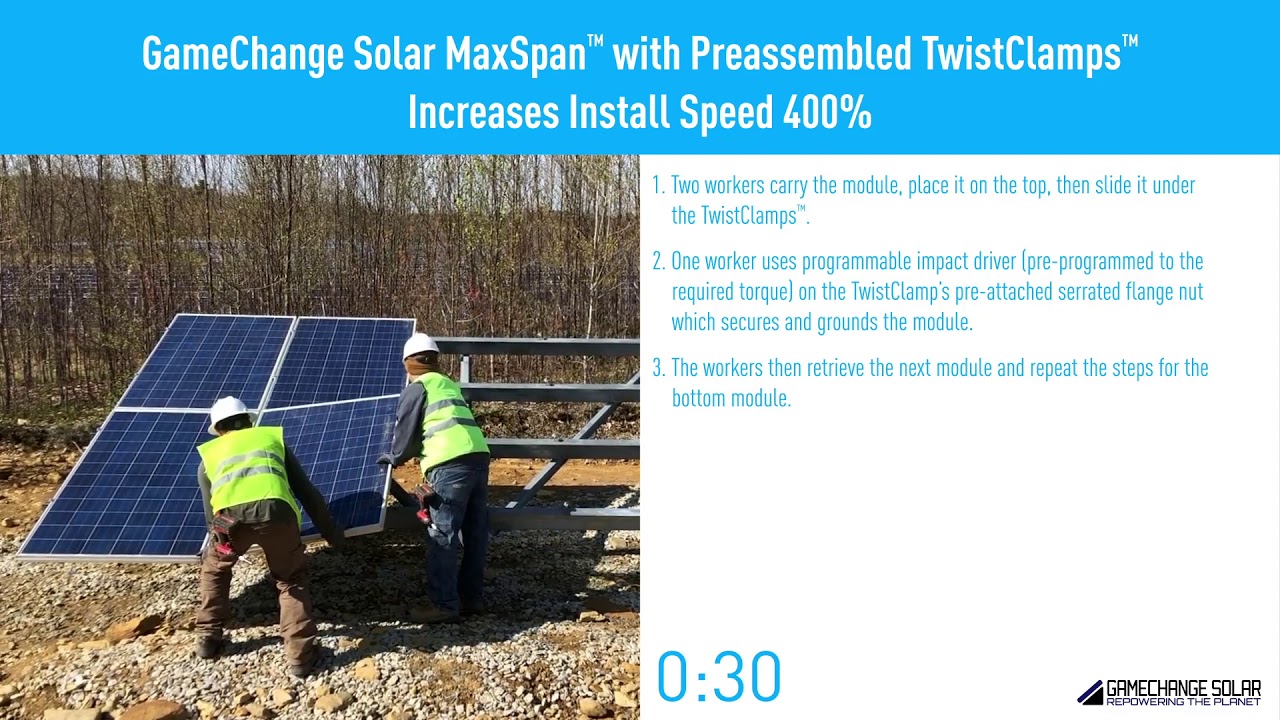

1. Two workers carry the module, place it on the top, then slide it under
the TwistClamps™.
2. One worker uses programmable impact driver (pre-programmed to the
required torque) on the TwistClamp’s pre-attached serrated flange nut
which secures and grounds the module.
3. The workers then retrieve the next module and repeat the steps for the
bottom module.

• Modules always align even if posts and beams are far out of alignment
since workers can slide modules north and south under TwistClamps™.
• No follow-up torquing operations required.
• 2 workers installed one module every 18.25 seconds, or 670.7 modules per
worker per day. However, these numbers were reduced for purposes of the
time study by 33% to 447.1 per worker per day to factor in worker fatigue.
