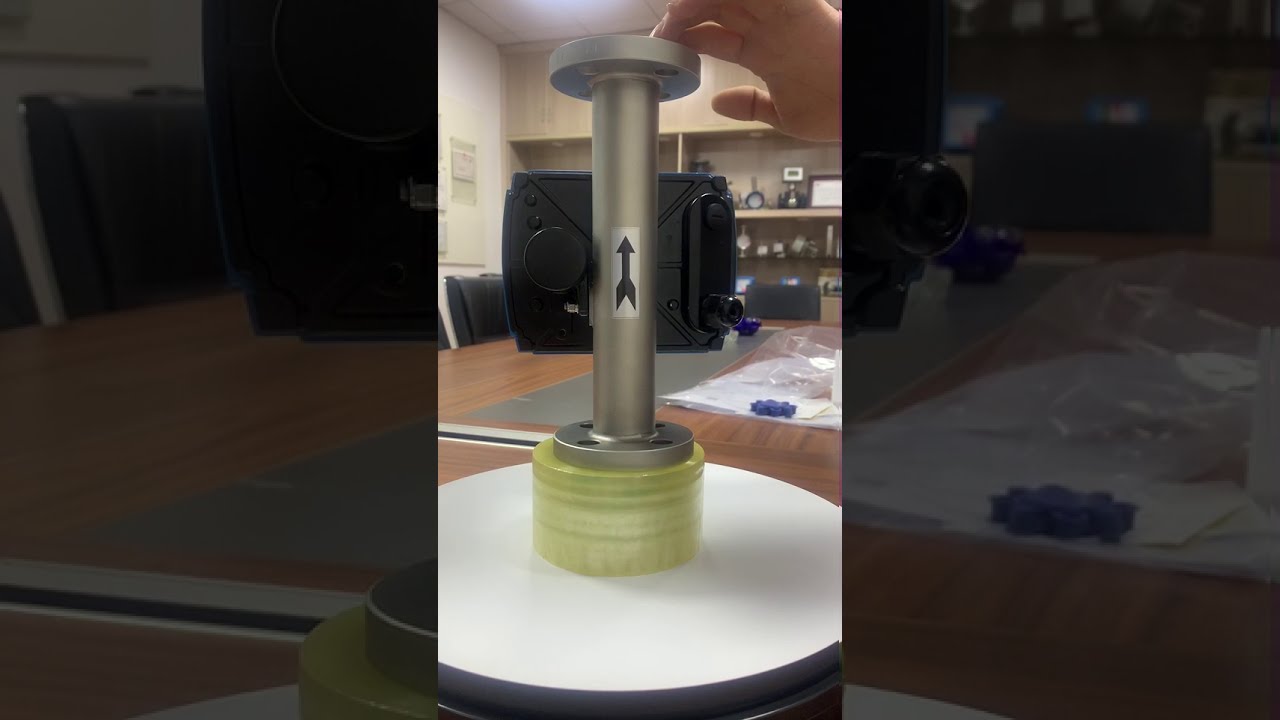

Скачать или смотреть BCST DN15 metal tube flowmeter with LCD display

Variable area flowmeters are simple and versatile devices that operate at a relatively constant pressure drop and measure the flow of liquids, gases, and steam. Variable Area (VA) flowmeters make use of a float, piston or vane placed inside a flow body, which changes position in response to changes in flow rate of the measure fluid media. The position of the float, piston or vane provides a direct visual indication of flow rate. Either the force of gravity or a spring is used to return the float to its resting position when the flow lessens.

BCST metal tube flow meter is of the spring operated variety, which allows the meter to be mounted in either horizontal or vertical orientations. BCST makes use of rugged, metal tube construction making it ideal for high pressure, high temperature and other demanding flow applications where safety is a concern. Features include mechanical readouts for use in locations where power is not available or in hazardous areas; analog and digital LCD local display options, multiple process connection options; several different materials of construction for metering of aggressive fluids and corrosion resistance; and HART enabled 4-20mA output to allow for remote monitoring and control.

For more details, pls visit www.bcstgroup.com
