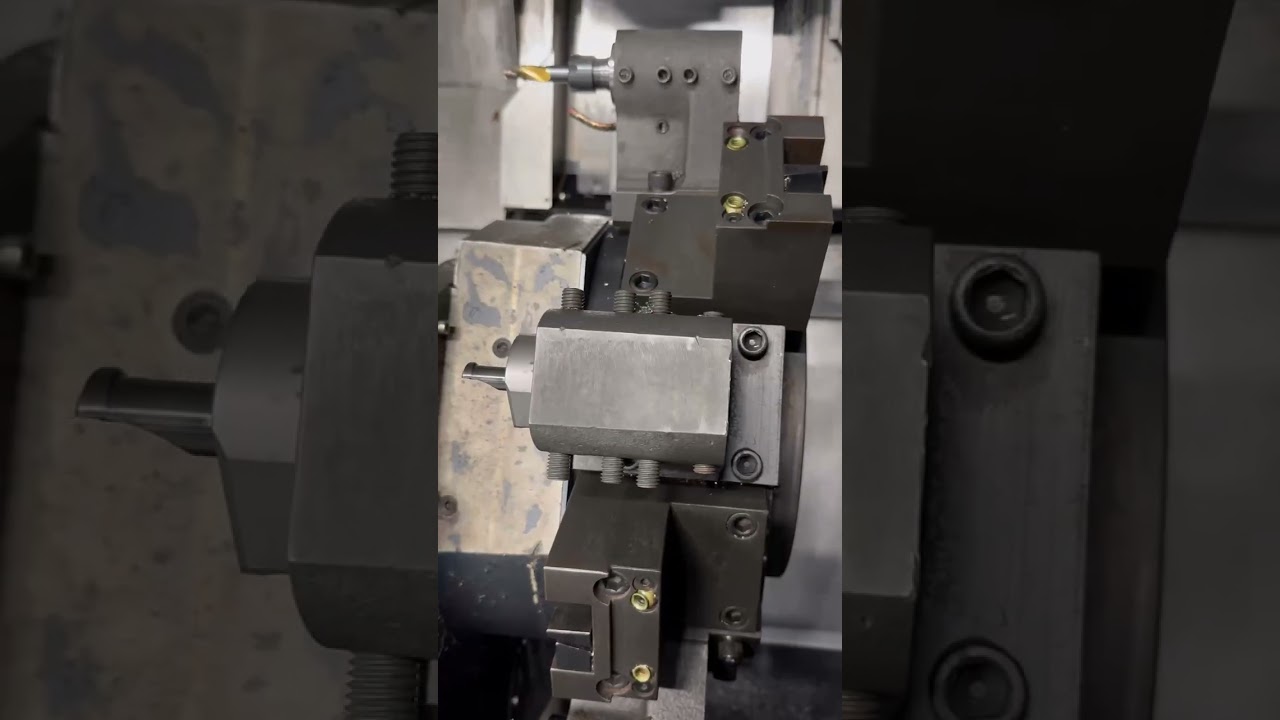

Скачать или смотреть Doosan Puma MX2500ST Multi Axis CNC Lathe, 2009 - Sub Spindle, Fanuc Control, C Axis

Max Swing Over Bed: 29.5"
Max Turning Diameter: 21.7"
Max Turning Length: 40.15"
X-Axis Travel: 21.7"
Z-Axis Travel: 43.1"
Y-Axis Travek: 6.3"
Universal Head Rotary Tool: 20 HP
Max Universal Head Rotary Tool Spindle Speed: 10,000 RPM
X2-Axis (Cross Travel of Lower Turret): 7.5"
Z2-Axis (Longitudinal Travel of Lower Turret): 40.9"
C-Axis (Indexing Positions of Main Spindle): .001°
C2-Axis (Indexing Positions of Sub Spindle): .001°
Main Spindle Thru Hole: 2.99"
Main Spindle Nose: A2-8
Main Spindle Horsepower: 35 HP
Max Main Spindle Speed: 3,500 RPM
Sub-Spindle Nose: A2-8
Sub-Spindle Horsepower: 35 HP
Max Sub-Spindle Speed: 3,500 RPM
Automatic Tool Changer Capacity: 40
Lower Turret Tool Capacity: 12
Lower Turret Live Tool Positions: 12
Max Lower Turret Live Tooling Speed: 5,000 RPM

Equipped With:

Fanuc 18iTB Control
Chip Conveyor
C Axis
Y Axis
Sub Spindle
