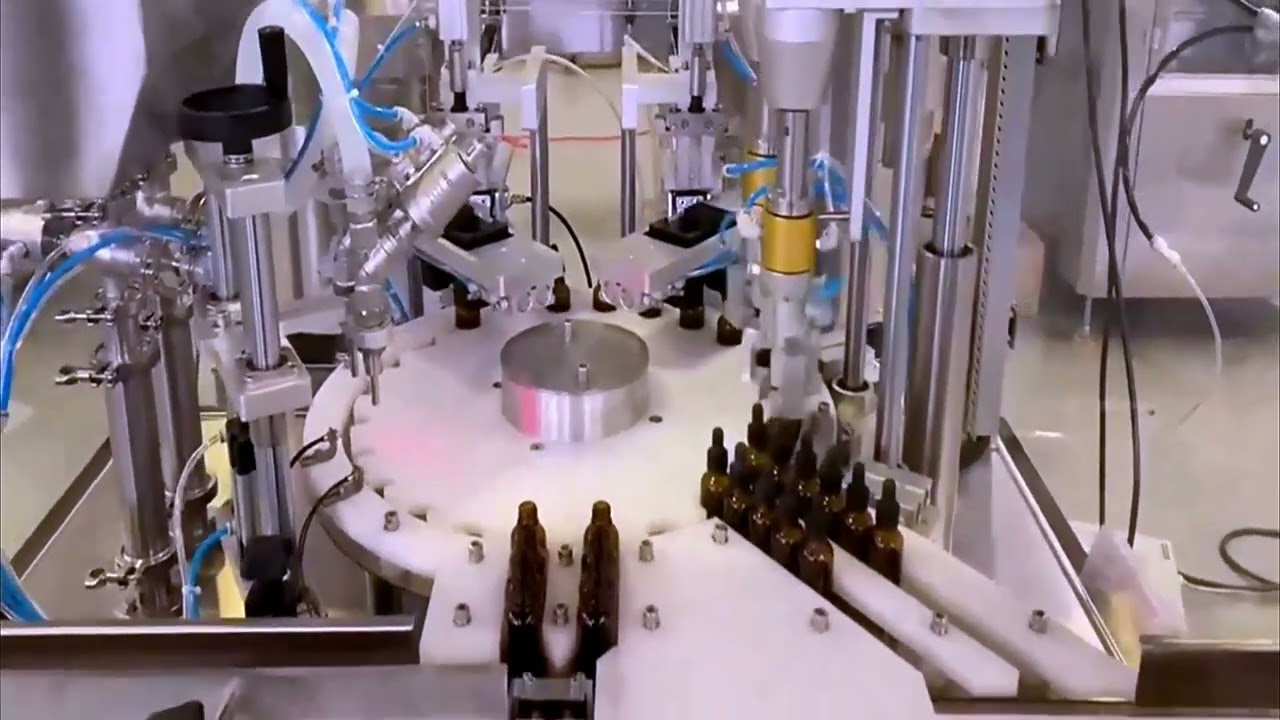

Скачать или смотреть Essential oil bottles filling capping machine two nozzles liquid filler bottling line

Essential oils and extracts are high value, low viscosity products typically sold in small size glass vials. The peristaltic machine is Ideal for these products because of accuracy of small fill sizes, ease of cleanup, and because there can be no cross contamination of different products run on the same filling machine.
Cross contamination is avoided because the only thing that touches the liquid is the peristaltic tubing itself which is composed of silicone or other inert specialty polymer materials. This tubing is inexpensive and can be easily cleaned, dedicated to a particular liquid, or simply thrown away after use. The size of tubing chosen in this machine depends on the fill size and accuracy required. The smaller diameter of tubing used, the higher the accuracy but the slower the fill rate. This explains why this machine is best utilized on small fills where high accuracy is needed. Large fill sizes greater than 1 liter are typically not filled on this type of machine because the fill cycle time can be lengthy. But for a typical fill size of 5 to 10 ml, again this is the ideal machine. The peristaltic filling machine dominates this industry because there is little to no waste of an expensive product.
Must read before first use *
1: Before the machine is plugged in, make sure the power switch is in the 【close】 state, and then follow the instructions.
2: The machine should be wiped with dry cloth if it does not run for a long time; corrosive cleaning agent should not be used.
3: It is strictly prohibited to splash liquid into the electricity box of the machine, so as to avoid corrosion of internal electrical components and resulting in short circuit.
4: According to the equipment packing list, check that the equipment, material model, specification and quantity should meet the requirements of design and product standards, and have certificate of product qualification.
5: Check that the appearance of the equipment should have no deformation, damage or corrosion, the rotation of the rotating shafts should be flexible and without clighting stagnation.
6: This machine is single phase AC 110V, the power plug is flat 2 plug, which should be inserted into power socket with ground wire.
Overview
The 3 in1 filling machine is mainly applied for automatic labeling on the product flat or curved surface in various shapes in the fields of medicine, daily chemical, toy and foodAdopted high-precision labeling position is suitable for the product labeling in various sizes.It saves labor and improves labeling precision and consistency.Imported electric eyes and programming controller are adopted to control cylinder labeling; all exposed parts are made from stainless steel, engineering plastics and high-strength alloy aluminum whose surface is treated by anodic oxidation, with corrosion resistance, complying with GMP standard.
Technical parameters of filling-capping-labeling with 2rotary turntables
Model YX-50G:
Filling capping labelling oil bottles.jpg
New capping heads (3)PENGLAICHINA.jpg
Filling volume:1ml to 150ml
Filling nozzle:2set
Weight： around 550 kg
Power supply： 220V 50Hz
Power consumption:1.75kw
Air pressure： 4-7kgf/cm2
Capacity ：Around 20~30pcs/min
Overall dimensions ： 3500mm*3000mm*1700mm
After-sales service on the machine shown in the video:
Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse,misapplication, storage damage,
negligence, or modification to the Equipment or its components.
ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install
and test the machine and also training your worker to operating the machine (The time of train depend on you worker).
The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After-sale service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible.The cost should be in your account.(as above).
