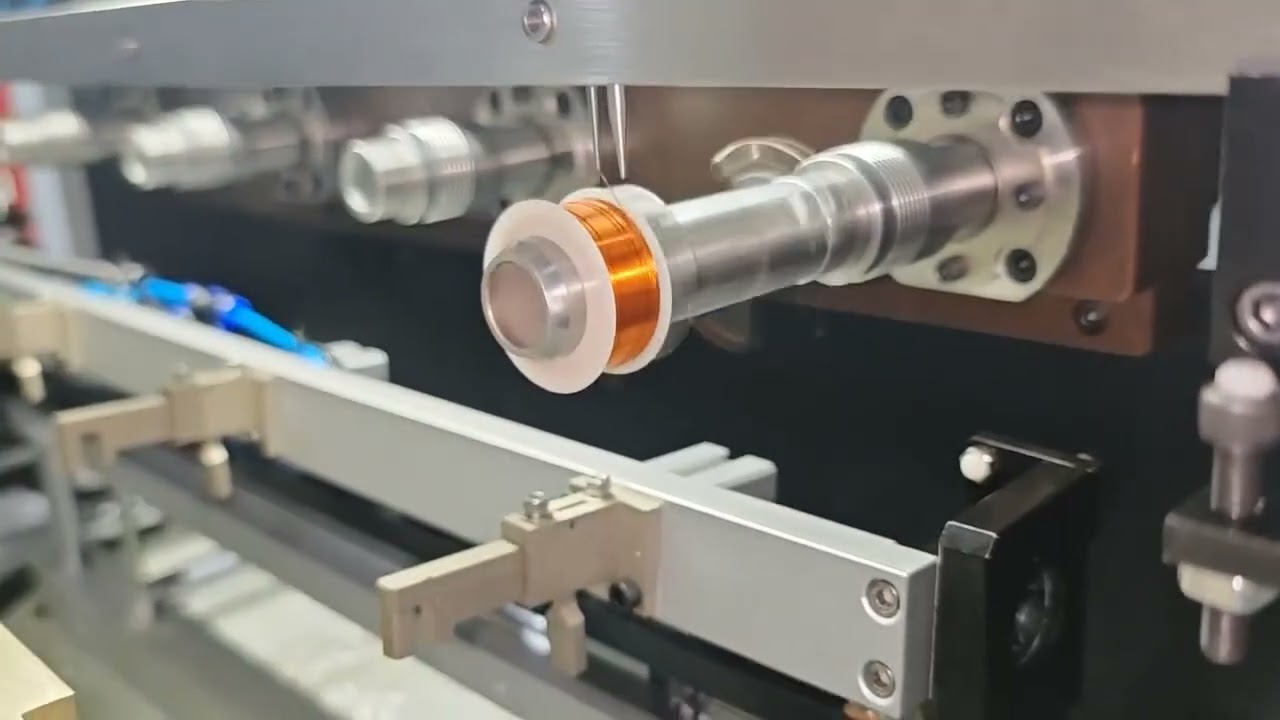

Скачать или смотреть KXP4-200 Fully Automatic Four Spindles Coil Winding Machine

Fully Automatic Four Spindles Coil Winding Machine Specification

Model:KXP4-200
Number of winding spindles: 4
Spindle speed: 3000rpm
Wire diameter: 0.4-1.4mm (more than 0.4mm need to add different accessories)
Spindle spacing: 200mm
Maximum bobbin outer diameter: 80mm

Toroidal Transformer Winding Machine Features

◆The spindle box of this machine adopts the fine processing of the whole material to minimize assembly errors caused by assembly and ensure the relative position of each part and the long-term use.

◆ The control part adopts the most advanced multi-axis motion control system, with excellent performance such as straight line, circular interpolation, spiral wrap, etc., in addition to easy automatic feeding, automatic winding head, automatic winding, precision cable, automatic winding Automatic tailing, automatic thread trimming, automatic cutting and other automatic machine basic steps, but also to achieve such as right angle outlet, pressure line into the slot and other difficult steps.

◆ The man-machine interface is simple and easy to understand, easy to operate, and responsive, and has a password storage function to prevent non-related personnel from modifying the program.

◆ All sports parts are driven by AC INOVANCE servo motor, high speed, precise positioning and long service life.

◆ Imported brands are used for important parts.

◆ The needle bar can be rotated 0 degrees, 90 degrees, and 135 degrees (optional) to achieve high-impact tangles, outlets, and tangents.

Toroidal Coil Winding Machine Application Scope

◆ Inductor coil
◆ Relay coil
◆ LCD backlight high and low voltage coils
◆ Ignition high and low voltage coil
◆ Sensor coil
◆ Solenoid valve coil
◆ Car injector coil
◆ Automobile ABS, charger coil
◆ Automotive instrument coil
◆ Auto brake coil
◆ Switching power transformer
◆ EE type transformer
◆ EI type transformer
◆ Stepper motor coil
◆ Other parallel outer coils

Transformer Coil Winding Machine Optional Device

◆ Tensioner
◆ Stranding machine
◆ Pressing angle device
◆ Pneumatic Cutting Shears
◆ Loose line device
◆ Double wire and around
◆ Automatic upper and lower skeleton device
◆ Automatic tape device, etc.

Mob:+8617622605414
E-mail:[email protected]
WhatsApp:8617622605414
