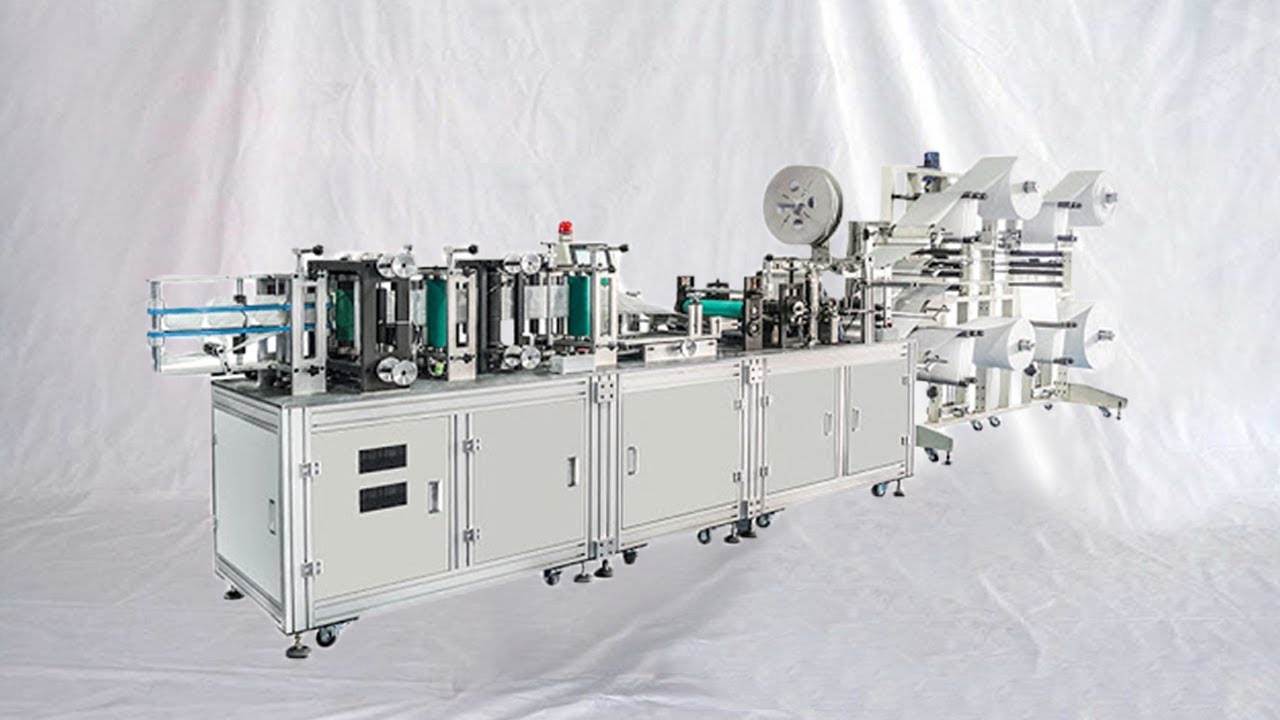

Model YX-FM40 fully automatic KN95 face masks making machine folding respirator manufacturing line mascaras haciendo linea designed and manufactured by our engineer team in cosmetic&food&pharma making and packaging machinery is widely used in the daily chemical industry like masks line and such like.We as a famous manufacturer moreover can design and produce the packaging machine according to the special requirements from customers.
The face mask making machine of multi-layer non-woven fabric rolls are subjected to compound roll welding after feeding. Nasal lines are welded after unrolling and cutting. Two rolls of rubber band are welded after automatically unrolling and cutting to designated length. Then masks are folded in half. After ultrasonic welding and fusion, the masks are rolling-cut and formed. Finally, we get finished N95 masks.
Multi-layer face mask composed by:Non-woven fabric,filter cotton (filter paper),nose rib,elastic ear string.
The working process of ASCEN medical N95 mask making machines are as follows:
Procedure 1:Material loading
The multi-layer non-woven fabric rolls feeding
Procedure 2:Mask forming
the nasal line insertion, pattern welding, Filter valve hold cutting and prewelding
Procedure 3:Logo text printing
Procedure 4:Ear loop feeding and welding
Procedure 5:Labeling(optional)
Procedure 6:N95 face mask cutting and waste disposal process
face mask making machine Features:
1.N95 Mask making production line feeding system: aluminum alloy frame structure, beautiful, strong and rust free, to ensure the size of finished products;Stainless steel fixture, adjustable;The setting of tensioning wheel can adjust the tensioning degree of the cloth, so as to effectively guarantee the beauty and flatness of the finished product;Nose clip line conveying group, easy to adjust and maintain.
2.Mask making production folding molding system: folding folding device, high folding degree and easy to control, large diameter welding wheel, effectively reduce product deformation.
3. N95 mask making ear band welding system: automatic feeding and automatic cutting of ear band;Double ultrasonic automatic welding;Realize automatic folding of ear band.
4. High stability, low failure rate and low noise.
5. Imported servo motor, high precision.
6. Electric inspection of feeding, feeding speed is fast
7. The machine is easy to install and debug, and is attached with a fixed device.
8. Stop automatically without material and send alarm.
9. There are only 2 stations in the full automatic mask making production line to collect the finished masks, which can save 3–4 people compared with the single operating equipment, greatly saving the labor cost and management cost.
Basic parameters of face masks line:
Product model YX-FM40
Machine size 9600mm(L) x 1400mm(W) x 2000mm(H)
Machine color Standard Color
Weight ≤1800kg,Ground bearing volume≤500kg/square meter
Electric source 380V,50HZ,15KW
Air pressure 0.5-0.7M Pa,useful discharge about 300L/minute
Capacity about 35-40 pieces per minute
Fold symmetry +/- 2mm
Brand Name PENGLAI
