Balancing a high-speed turbine rotor to ISO standards is far more difficult than it looks.

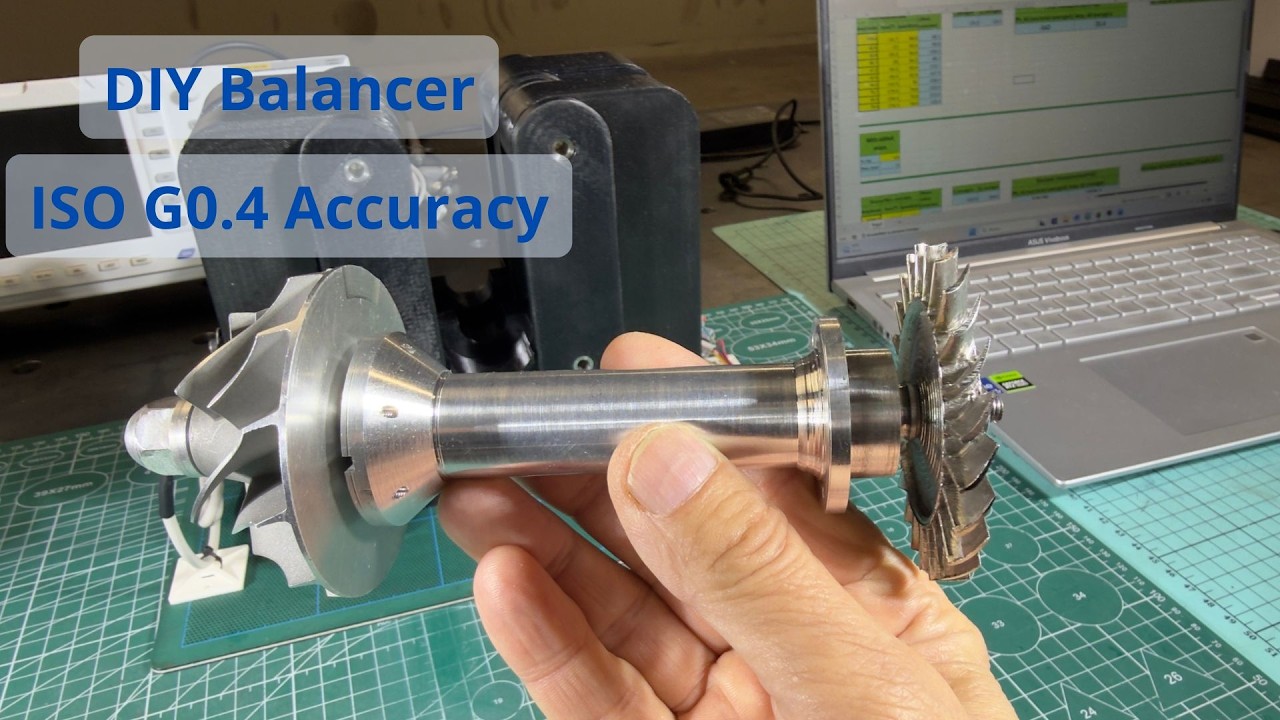

In this video (Part 4 of my RC turbine project), I redesign my DIY balancing machine to reach ISO 21940 G0.4 quality, equivalent to correcting an imbalance smaller than a 1 mm ball of sticky tack.
Starting from the limitations of my previous design, I rebuild the rotor assembly, improve the mechanical setup, upgrade the sensor system, and implement advanced signal processing techniques on an ESP32.
🔧 What you’ll see in this video:
• Why my previous balancer was not ISO compliant
• Understanding ISO 21940 G0.4 requirements
• Full rotor assembly with shaft tunnel and ceramic bearings
• DIY hybrid ceramic bearing construction
• Mechanical redesign of the balancing machine
• BMI160 accelerometer vs ADXL335
• ESP32 signal processing: filtering and lock-in detection
• Test mass balancing method
• Achieving ISO-level imbalance in only two iterations
📂 Software & Files:
• ESP32 / Arduino code: https://drive.google.com/file/d/1-5xk...
• Excel balancing tool: https://drive.google.com/file/d/1p9A8...
• 3D printed parts: https://drive.google.com/file/d/1Me_u...

📌 Previous video (Part 3): DIY Turbine Rotor Balancing
📌 Next video (Part 5): Dual-plane balancing and further improvements
If you enjoy CNC machining, turbine engineering, sensors, and precision measurement systems, consider subscribing.
Thanks for watching!
#cnc #engineering #balancing #turbine #esp32 #diymachining #iso21940 #rcjet
