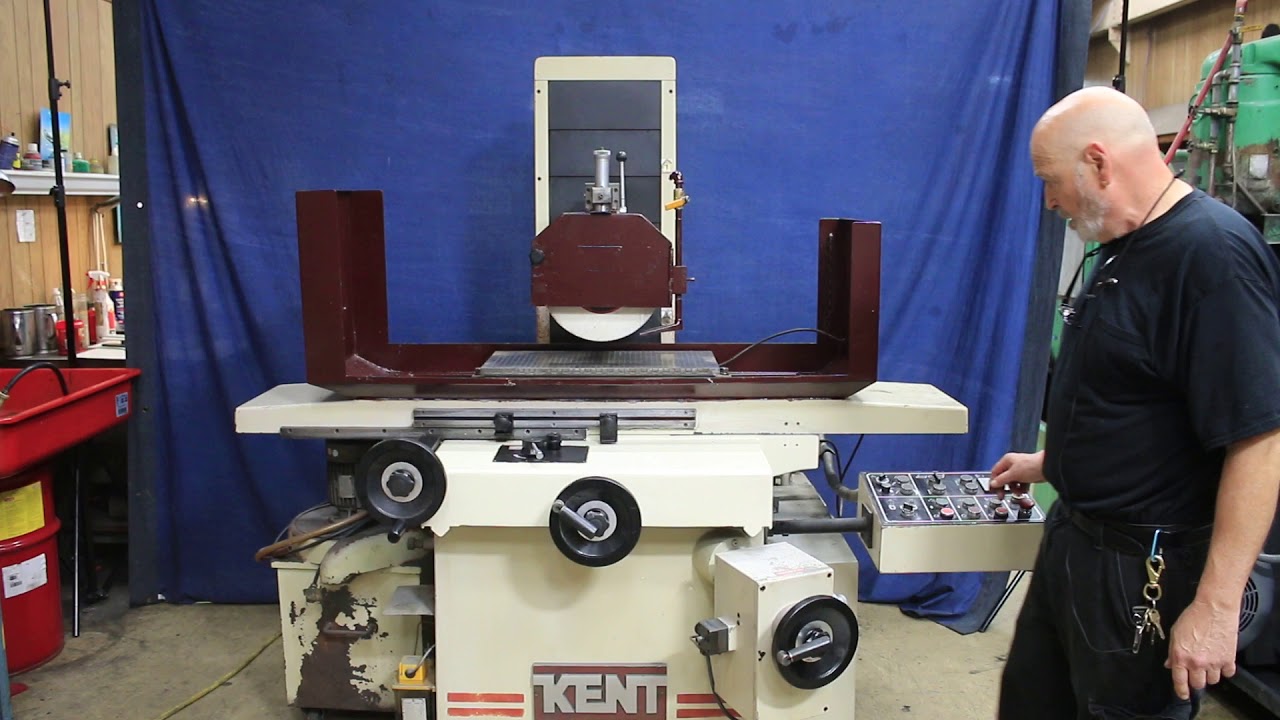

12" X 24" KENT (MADE IN TAIWAN) HYDRAULIC SURFACE GRINDER
W/AUTO INCREMENTAL DOWNFEED

MODEL: KGS306-AHD S/N: 870154-2 NEW: 1987

MAX. GRINDING CAPACITY ............................. 12" X 24"
DIST. FROM SPINDLE CENTER TO TABLE ................. 21- 1/4"
LONGITUDINAL TABLE TRAVEL .......................... 28"
CROSS TRAVEL ....................................... 13- 3/8"
VARIABLE TABLE SPEED, HYDRAULIC .................... 6.5' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT ...................... 0.02" TO 0.4"
RAPID CROSS TRAVERSE RATE .......................... 48" IPM
DOWNFEED HANDWHEEL PER GRADUATION .................. 0.0005"
AUTO INCREMENTAL DOWNFEED .......................... 0.001" TO .0001"
PER REVOLUTION ..................................... 0.1"
CROSSFEED HANDWHEEL PER GRADUATION ................. 0.001"
PER REVOLUTION ............. ....................... 0.2"
SPINDLE MOTOR ...................................... 3 H.P.
GRINDING WHEEL ..................................... 12"D X 2" X 5"

APPROX. WEIGHT ..................................... 4,290 LBS
APPROX. MACHINE SIZE ............................... 6' X 5'D X 6'H

EQUIPPED WITH:
SMALL FOOTPRINT FOR A 12" X 24" MACHINE
AUTO INCREMENTAL DOWNFEED, (10) STEPS ... 0.001" TO .0001"
INCREMENTS FOR BOTH SURFACE& PLUNGE GRINDING MODES.
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED
12" X 24" ELECTRO-MAGNETIC CHUCK W/VARIABLE HOLD NEUTROFIER CONTROL
"OVER-THE-WHEEL" WHEEL DRESSER
COOLANT SYSTEM
MEEHANITE CASTING
AUTOMATIC LUBRICATION
EXTERNAL HYDRAULIC SYSTEM

** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
