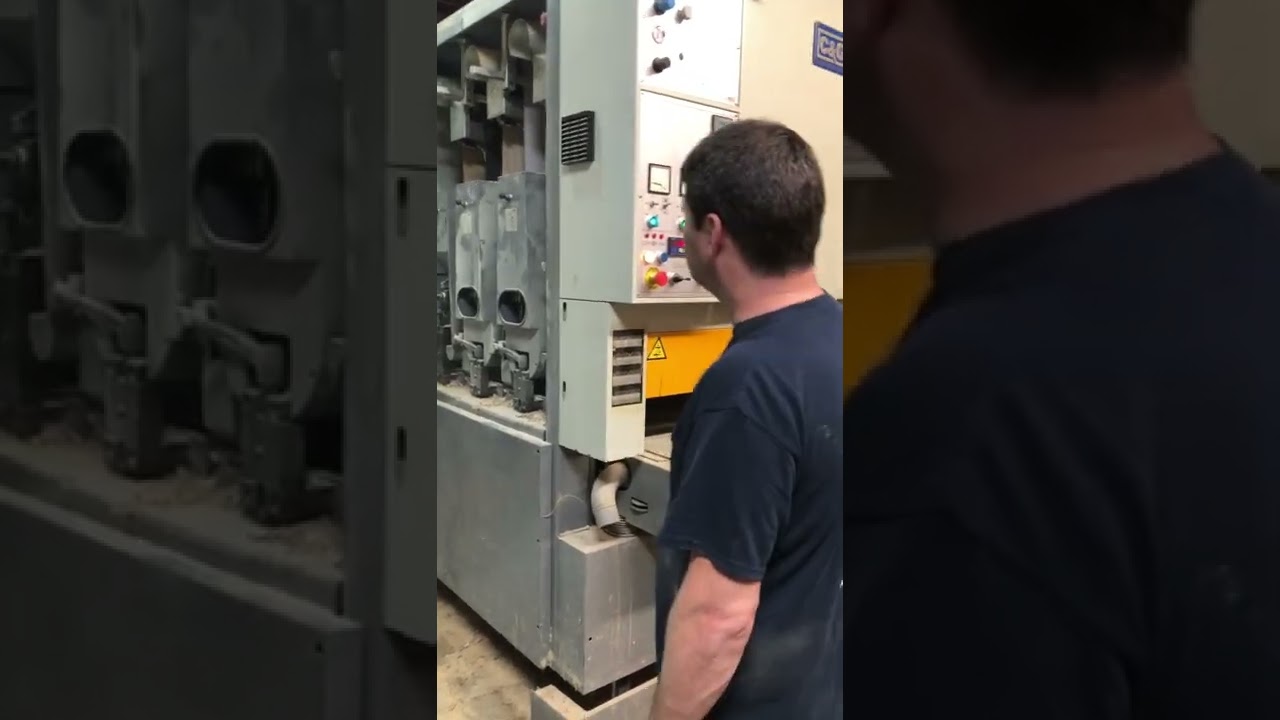

Скачать или смотреть COSTA KA CCT 1350 3 Head Sander

COSTA KA CCT 1350 3-Head Sander: 52" width capacity
Direct link to listing: https://www.exfactoryauctions.com/Auc...
(SX-320033)

Excellent Veneer and Solid wood sander with (2) Contact rolls and (1) Segmented platen.

Head Configuration:
1st Head: Rubber covered contact roll, 9-7/8" dia., 35 HP motor.
2nd Head: Rubber covered contact roll, 9-7/8" dia. approx. 40 shore covering, 30 HP motor;
3rd Head: Segmented finishing platen, electronically controlled narrow segments conform to panel width and length for thin veneer sanding, 25 HP motor.
Sanding Belt Info: 53" x 103" abrasive belts, air blast abrasive belt cleaning, pneumatic belt tensioning with electronic tracking.
At Outfeed: Rotary panel cleaning brush, 7" dia. with 2 HP motor.

Other Specifications:
Equipped with: PLC processor controls.
Feed System & Conveyor Bed: Variable feed speed conveyor with inverter control 16 - 82 FPM.
Floating bed assembly for veneer sanding, vacuum conveyor bed assembly; Infeed & outfeed spring loaded hold down shoes on all heads;
Features & Complete with: Anti-static bar and rotary air jet abrasive belt blowers; Powered raise & lower conveyor bed with LED readout; motor load meters on all sanding head motors.
Actual Model is COSTA KA CCT 1350 3-Head sander
Dimensions: 90" L x 80" W x 96" H; weight approx. 10,000 Lbs.
Machine State: Still in place, but disconnected
Inspection: Available for Inspection (By Appointment Only)
