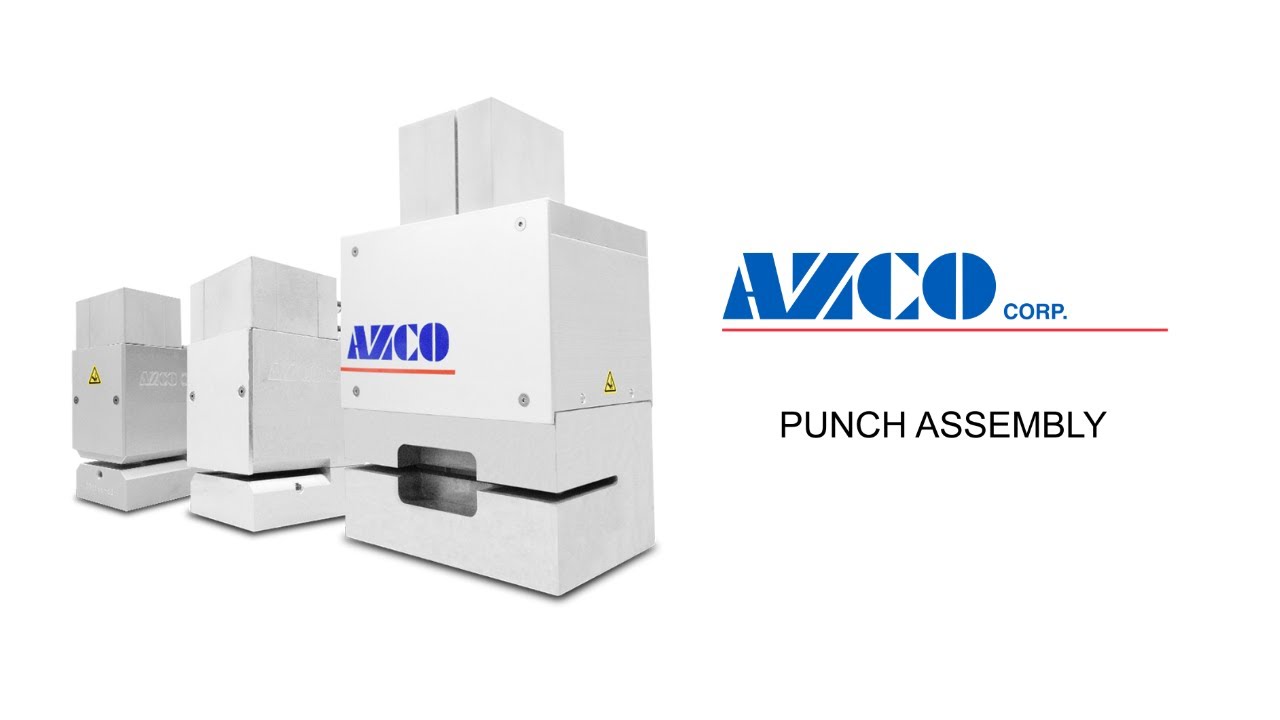

AZCO Corp. designed and manufactured a series of modular and pneumatic punch assemblies equipped with a punch-and-die design to make custom shaped cut-outs.

These units are available in pneumatic or electric configurations., Punch units use hardened-steel tooling that is clean-cutting and fast-acting. The assembly can be mounted in any orientation, and can be added to any converting, processing, or assembly line in any way you see fit! Just bolt it on!

Materials: Film, Foam, Foil, Laminates, Medical Devices, Mesh, Metalized Film, Nonwovens, Paper, PTFE, Rubber, Shrink Tubing, Tape, Thin Gauge Material

Specs:
Modular design and construction
Custom sizes and configurations
Pneumatically operated punch
Can be mounted in any orientation
Hardened and precision ground matched punch and matrix
Framework is supplied in clear anodized aluminum
Punch and matrix will be a matched set
Any design that fits within a 40mm [1.6″] diameter circle
Centerline of punch is 38mm [1.5″] from edge of web and can be modified to meet your requirements
NPT fitting
90 PSI [6 bar] compressed air

For more information, please visit: https://www.azcocorp.com/punch-assemb...

LinkedIn:   / azco-corporation-inc-
Facebook:   / azcocorp
Vimeo: https://vimeo.com/user181547753

ISO 9001:2015 Certified. Made in USA.
