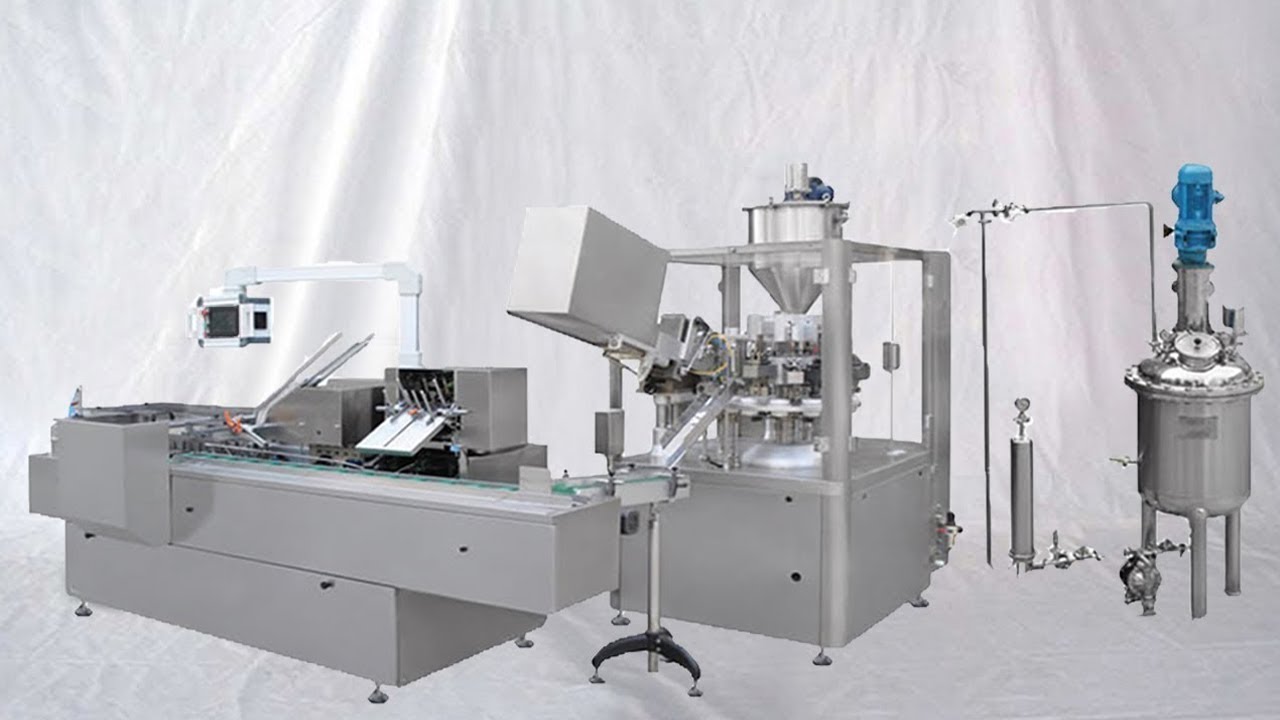

YX series automatic integrated packaging solution toothpaste tubes filling sealing carton boxing equipment 全自動牙膏包裝線 designed and manufactured by our engineer team in cosmetic&food&pharma making and packaging machinery is widely used in the daily chemical industry like packaging machinery and such like.We as a famous manufacturer moreover can design and produce the packaging machine according to the special requirements from customers.
The whole line includes the two main machines:
One is tubes filling sealing machine automatic Model YX-FS60
The other cartoning equipment model YX-CP100
The basic parameter given as below for machines respectively:
Model YX-FS60
Filling hopper Maximum volume: 65L
E equipped with liquid level controller, with output signal of either a pneumatic or electric pump and double deck heating hopper for option
Filling cylinder
3 sizes of filling cylinder are available:
20Ø mm filling cylinder for filling 3~40cc volume
45Ø mm filling cylinder for filling 20~200c volume
61Ø mm filling cylinder for filling 30~330cc volume
Working station Rotary working station, 12 stations, equipped with cam controller
Sealing device STRONG Brand Sealing device
Speed 30~70 pcs./min, depending on the tube diameter and filling volume
Main drive motor 1 HP variable speed motor
Motor for mixer 1/4 HP variable speed motor or 90W soeed regulating motor (for option)
Power supply 220V x 1Px 50/60 HZ，internal transformer 220V x 3Px 50/60 HZ
Air supply Pressure: 5~8 Kg/cm2, Comsumption: 250l/min
Equipped with water filter for compressed air
Dimension 2250x 1450x 2200 m/m
Weight N.W./ G.W.: 800/ 950 Kg
The tube-feeding, filling, sealing, tube-trimming, serial number typing process are automatic operation. End products will be ejected from the eject funnel.Use contact type heater to seal tube fastly. Suitable for soft plastic tubes, laminated plastic tubes, aluminum laminated tubes.
ADVANTAGE on customized tubes filling sealing machine curved tube filler sealer machinery model YX-FS60-II
1.This machine is equipped with a compiter program controlled man-machine-interface with a touch display unit and PLC comtrols, easy for adjustment and operation. The man-machine interface can adjust the speed of the main drive motor, the step motor and the driving motor for the Mixer and required quantity.
2. Safety protection function: In case of any occurance of the following: temperature too low, air pressure too low, the tubes to be filled are too high or tii low, the safety door is opened, the motor torque is too high, insufficient filling volume inside a tube or the connected cartooning machine is out of order etc., a signal of the related failure will be sent to the LED display to inform the operator for correction, so that the sealng quality and production quantity can be controlled. The hopper is equipped with automatic mixer which helps the filling process to be more smoothly. Optional filling hopper with temperatore and liquid level control function are available for selection.
3.Tubes packed in a box can fed automatically onto the tube holders by a special feeding devicee. This machine is equipped with fast-speed tube feeding device and special cleaning device can be comtrolled by a step motor with a photo-cell element for locating the accurate position of tubes; and the filling device.
4. Equipped with a safety device. If there os no tube available on the tube holder, no filling action will be made. If any tube is positioned too high or too low, the machine will stop. During the filling operation, the tubes can be lifted up and down.
5. The machine is equipped with a housing made of stainless steel to prevent from any contamination due to any peeling of any painting treatment.
Basic parameter of cartoning boxing equipment:"
model YX-CP100
Encasing speed 30-120 case/min
Box Quality requirement 250-350g/m*m
Dimension range (L× W× H) (50-180)mm* (30-85)mm* (15-50)mm
Leaflet
Quality requirement 50-65g/m²
Unfolded leaflet specification L× W (80-300)mm*(70-210)mm
Folded leafilet specification(1-4)*(L× W) (70-210)mm*(20-40)mm
Compressed air Working pressure 0.5-0.7mpa
Air consumption 120-160L/min
Power supply 220V 50HZ
Motor power 1.5kw
Machine dimension(L× W× H) 3200mm* 1200mm* 1900mm
Machine weight 1500kg
Our Factory since 1992 has been manufacturing the cosmetic&food making and packaging machinery.In these field we have the experience rich enough to solve the questions encountered by our customers from both home and abroad.For more information about various high quality machinery like YX series automatic integrated packaging solution toothpaste tubes filling sealing carton boxing equipment 全自動牙膏包裝線,please email via [email protected] or browse our website http://penglaichina.com.
