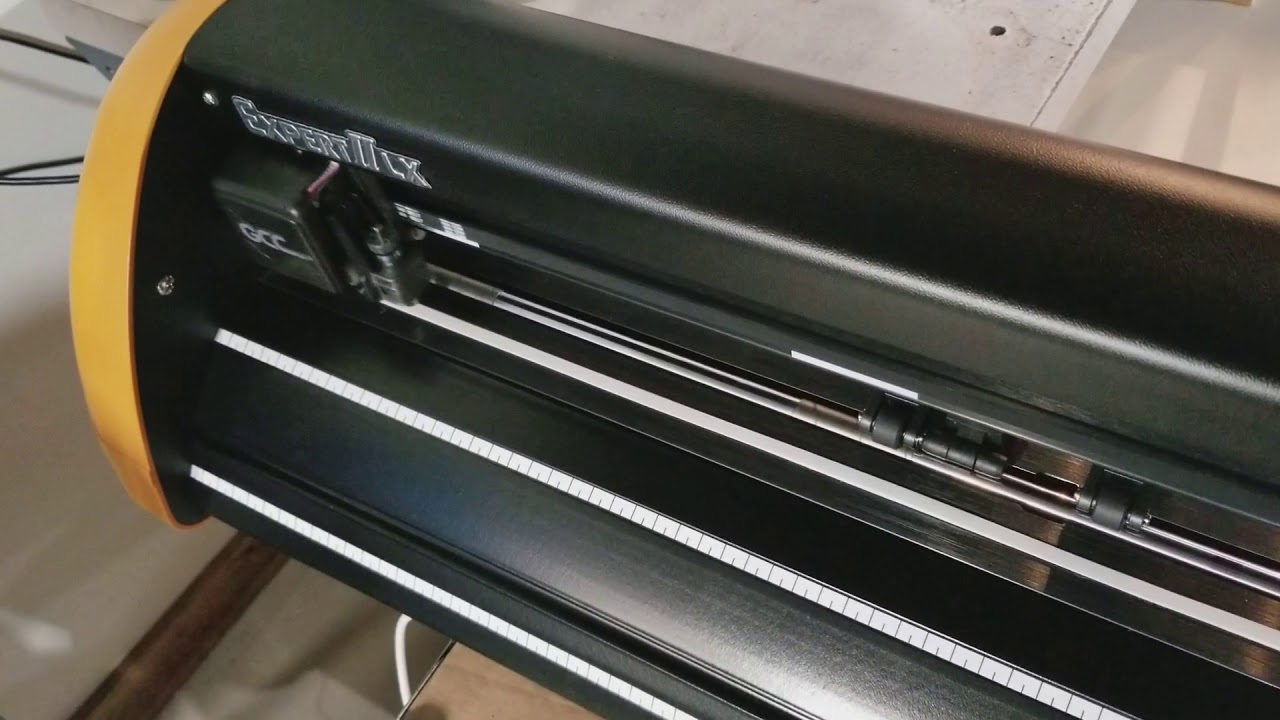

Скачать или смотреть GCC Expert II LX 24 Vinyl Cutter Homing Fixed

Please subscribe to my channel by clicking the link above or by clicking this link:
   / @stwerks

This plotter was never homing correctly since new. The carriage would run into the left side and make some noise, then finish the homing operation. This might not even be noticed if you are not aware how it should work. The homing optic sensor tab mounted on the back of the extrusion had to be modified and moved over. It could not be moved to the right (looking at front of machine) enough without slotting out the screw holes in the metal tab bracket.

This shows the problem
