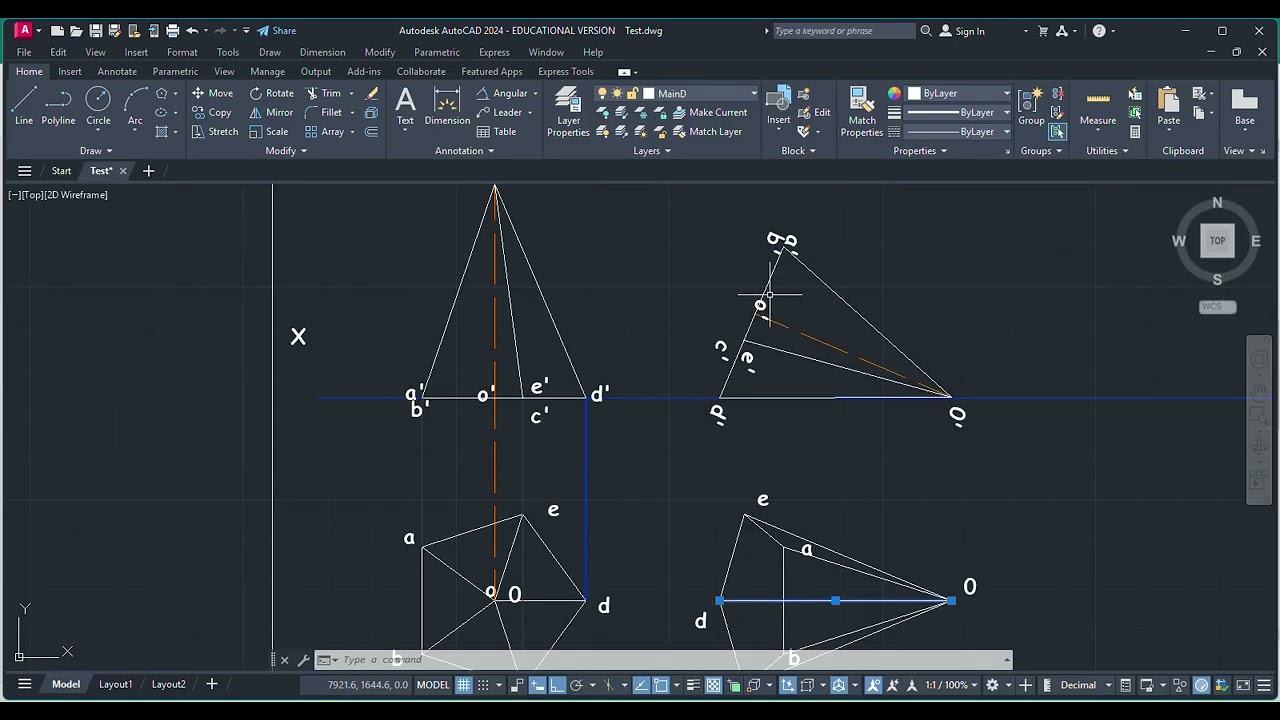

In this video, we’ll learn how to draw the projection of a pentagonal pyramid resting on the HP (Horizontal Plane) on a slant edge using AutoCAD. This step-by-step tutorial covers how to visualize the solid, position it correctly with respect to HP and VP, and create accurate top and front views following the first angle projection method.

This session is perfect for students studying Engineering Graphics, Mechanical Drawing, or CAD design. By the end of this video, you will understand how to:
✅ Construct the orthographic projection of a pentagonal pyramid resting on HP on an inclined edge.
✅ Apply reference line and projection techniques correctly.
✅ Use AutoCAD commands effectively for projection drawing.
✅ Improve your skills for academic assignments and design visualization.
