The TCR (Toner Concentration Ratio) developer adjustment process in Konica Minolta copiers is a delicate and critical maintenance task. However, the specific steps and procedures can vary from one Konica Minolta model to another. Here is a general guideline on how to perform TCR developer auto adjustment on Konica Minolta 215, 226, and 206 copiers, but please refer to your copier's manual for model-specific instructions:

Important Note: TCR developer adjustments are typically performed by trained technicians or service personnel. If you are not experienced with copier maintenance, it's recommended to contact Konica Minolta or a certified technician for assistance.

Materials Needed:

Service manual for your specific Konica Minolta model
Screwdrivers and tools as required
A voltmeter and a developer TCR sensor if necessary
A service password (if required)
Steps:

Safety Precautions: Ensure that the copier is turned off and unplugged from the power source. Follow all safety precautions in the service manual.

Access Service Mode: To enter service mode, you may need a service password. Refer to your service manual for the specific method to access service mode for your copier model.

Access Developer TCR Adjustment: In the service mode, locate the developer TCR adjustment menu. The specific menu path and options may vary depending on the model. Refer to your service manual for the correct procedure.

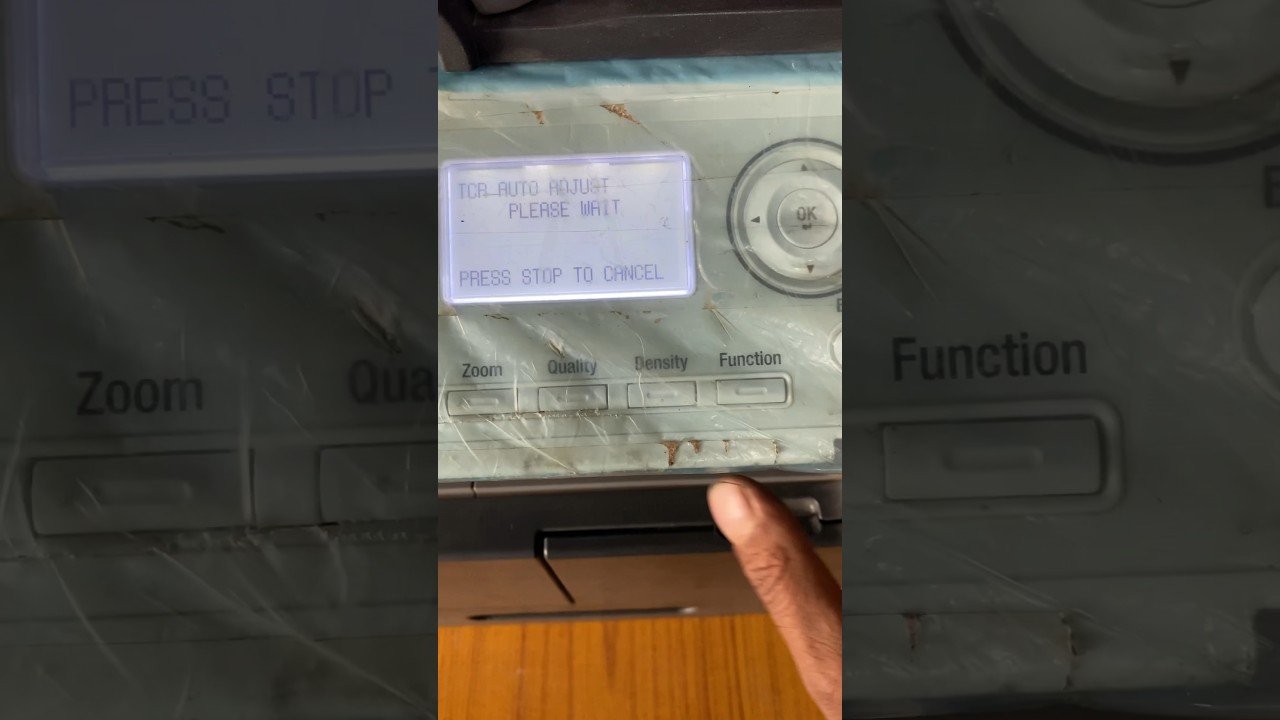

Auto Adjustment: Choose the option for "Auto Adjustment" or similar wording, and follow the on-screen prompts or instructions in your service manual. The copier will automatically adjust the TCR developer concentration based on its internal sensors.

Monitor TCR Value: Some Konica Minolta copiers will display the TCR value after the auto adjustment. Ensure that the TCR value is within the specified range mentioned in your service manual. If not, you may need to make further adjustments.

Manual Adjustment (if necessary): If the TCR value is not within the specified range, you may need to perform a manual adjustment. This involves adjusting the developer TCR concentration manually using the appropriate controls and tools. Follow the detailed steps in your service manual for manual TCR adjustment.

Exit Service Mode: After completing the adjustment, exit the service mode and restart the copier.

Test Copies: Print a few test copies to ensure that the image quality is satisfactory. If not, further adjustments may be required.

It's important to emphasize that adjusting the TCR developer concentration is a delicate task, and incorrect adjustments can lead to print quality issues or damage to the copier. Therefore, it's strongly recommended to refer to your copier's service manual and, if necessary, seek assistance from a qualified technician to ensure accurate TCR developer adjustment.
