Designing a Database Schema for Network Devices and Configurations

Managing network devices can be complex, especially when considering the relationships between different entities in your system. In this post, we will explore how to design a robust database schema to manage network devices, their interfaces, VLANs (Virtual Local Area Networks), and VNIs (Virtual Network Identifiers) effectively while ensuring that specific constraints are met.

Understanding the Problem

The problem we’re addressing involves designing a database schema for four entity types:

Interface

Device

VLAN

VNI

The Basic Relationships

The key relationships among these entities are:

Each Interface is tied to exactly one Device, but a Device can have multiple Interfaces.

An Interface may operate with multiple VLANs, and a VLAN can be associated with multiple Interfaces, but no VLAN can appear more than once on the same Interface.

Each VLAN may have zero or one VNI, while a VNI may reference multiple VLANs.

However, an additional constraint complicates this design: the tuple (VNI, Device, VLAN) must be unique. This means that every combination of these three entities can only occur once across the schema.

Proposed Database Design

We will elaborate on how to represent these entities and relationships in a structured manner through SQL tables.

Basic Tables Structure

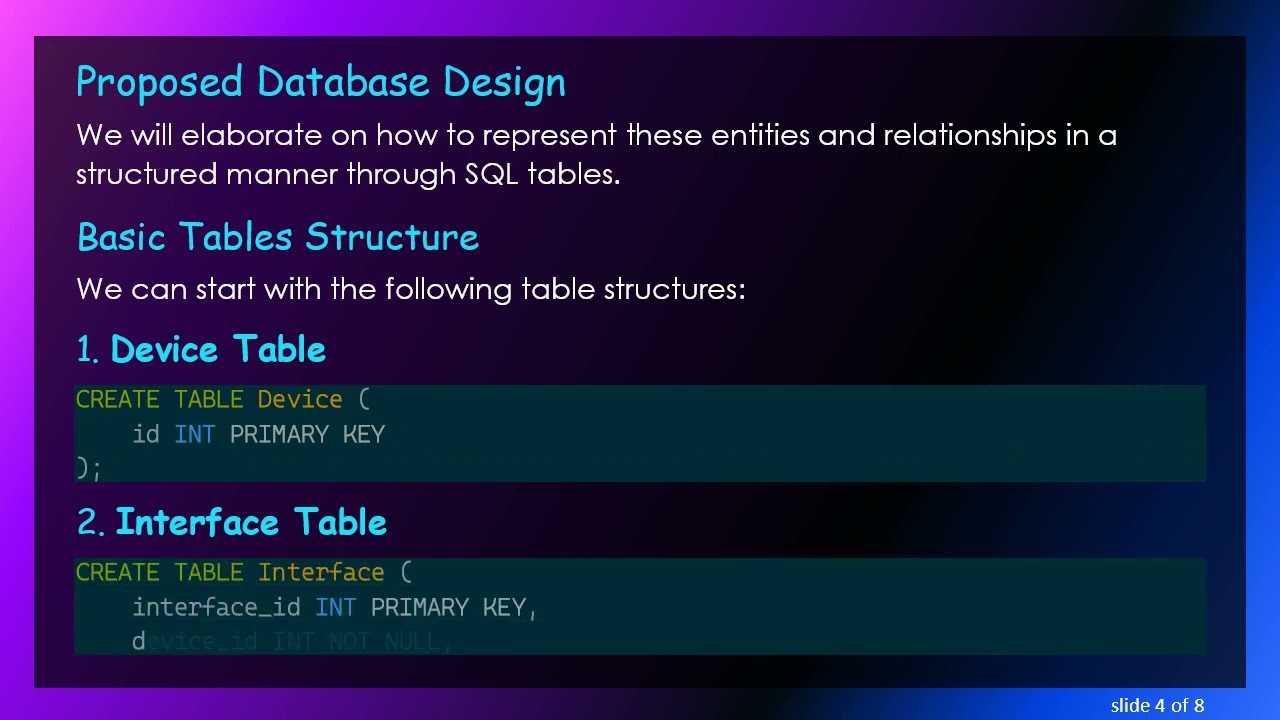

We can start with the following table structures:

1. Device Table

[[See Video to Reveal this Text or Code Snippet]]

2. Interface Table

[[See Video to Reveal this Text or Code Snippet]]

3. VLAN Table

[[See Video to Reveal this Text or Code Snippet]]

4. VNI Table

[[See Video to Reveal this Text or Code Snippet]]

5. InterfaceVLAN Mapping Table

[[See Video to Reveal this Text or Code Snippet]]

Adding Unique Constraints

Now that the basic tables are established, we will need to incorporate unique constraints to meet our additional requirements.

Unique (VNI, Device, VLAN) Constraint

To ensure that the combination of VNI, Device, and VLAN is unique, we create the following mapping table:

[[See Video to Reveal this Text or Code Snippet]]

The Logic Behind the Design

Each VLAN is mapped to at most one VNI, while a VNI can aggregate multiple VLANs.

We ensure that each device can have multiple Interfaces, and for each interface, we validate the maximum allowed relationships.

The mapping table InterfaceVlanVni implements our unique constraint that combines the Device, VLAN, and VNI to prevent duplicate entries.

Considerations for Implementation

Ensure that all fields marked as NOT NULL to enforce data integrity.

Use Primary Keys (PK) to uniquely identify each row in your tables, improving the performance of your queries.

Conclusion

Constructing a database schema for network devices and configurations is vital to effective network management. By following the outlined guide, you should be able to design a schema that not only represents the relationships among your entities but also adheres to critical constraints required by your application.

This structured approach helps ensure your database remains efficient, consistent, and able to support future growth.

Feel free to share your thoughts or any questions regarding this schema design. Let's build efficient networks together!
