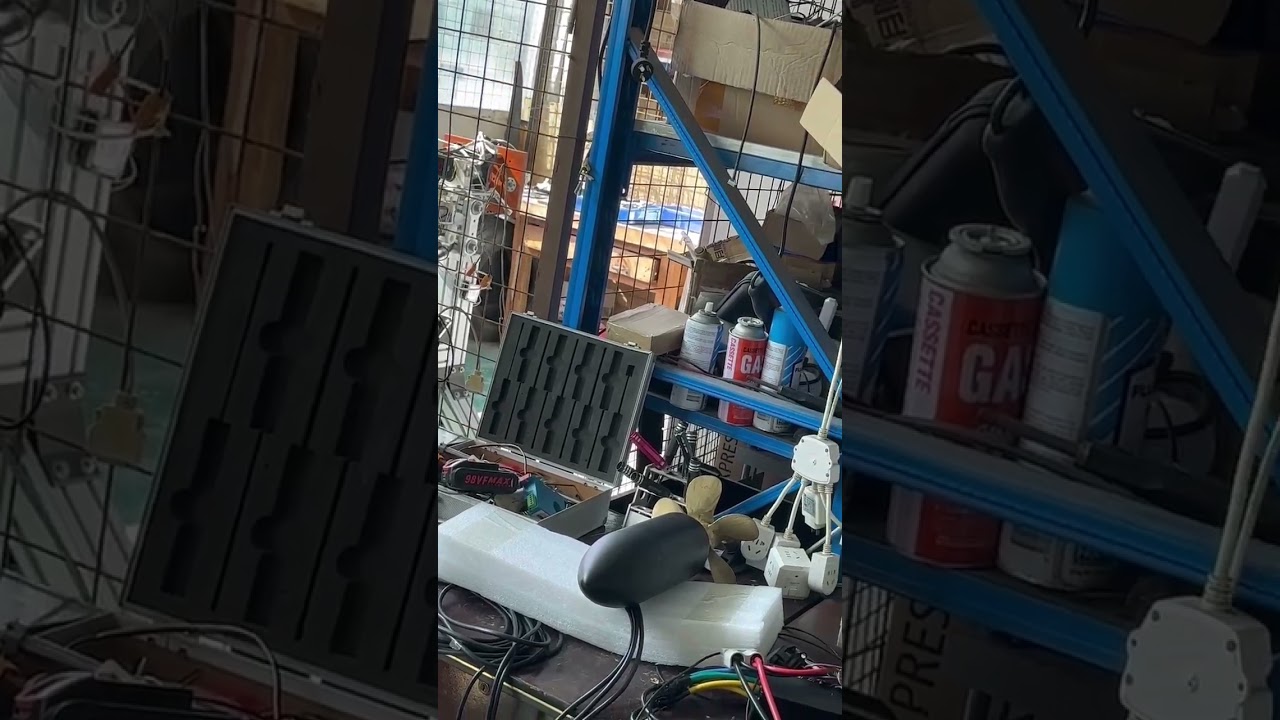

Check the video for our engineer test the 23850 brushless DC motor:
[email protected] ; [email protected]

Tech Specs

Item Value
Warranty 3 months
Place of Origin China Guangdong
Brand Name EV Craft Motor
Model NumberZero-G 23850 Propulsion System
Usage Heavy lift drone, cargo drone, multi-rotor drone, paramotor, paraglider, VTOL drone, search and rescue drone.
Type Brushless Motor
Construction Permanent Magnet
Commutation Brushless
Protect Feature Explosion-proof
Efficiency 89%
Dimension 238mm x 50mm
KV Availability 27 / 35 / 45 / 60 (Customizable)
ESC 24S 300A
Max. Torque 80N.m
Max. Thrust 98kg
Max. RPM 2420
Max. Voltage 90V
Peak Current 280A
Propeller AH-55
Lead 14 AWG silicone wire
Weight 6.6kg
Inside The Package Motor, ESC(motor controller), propeller
