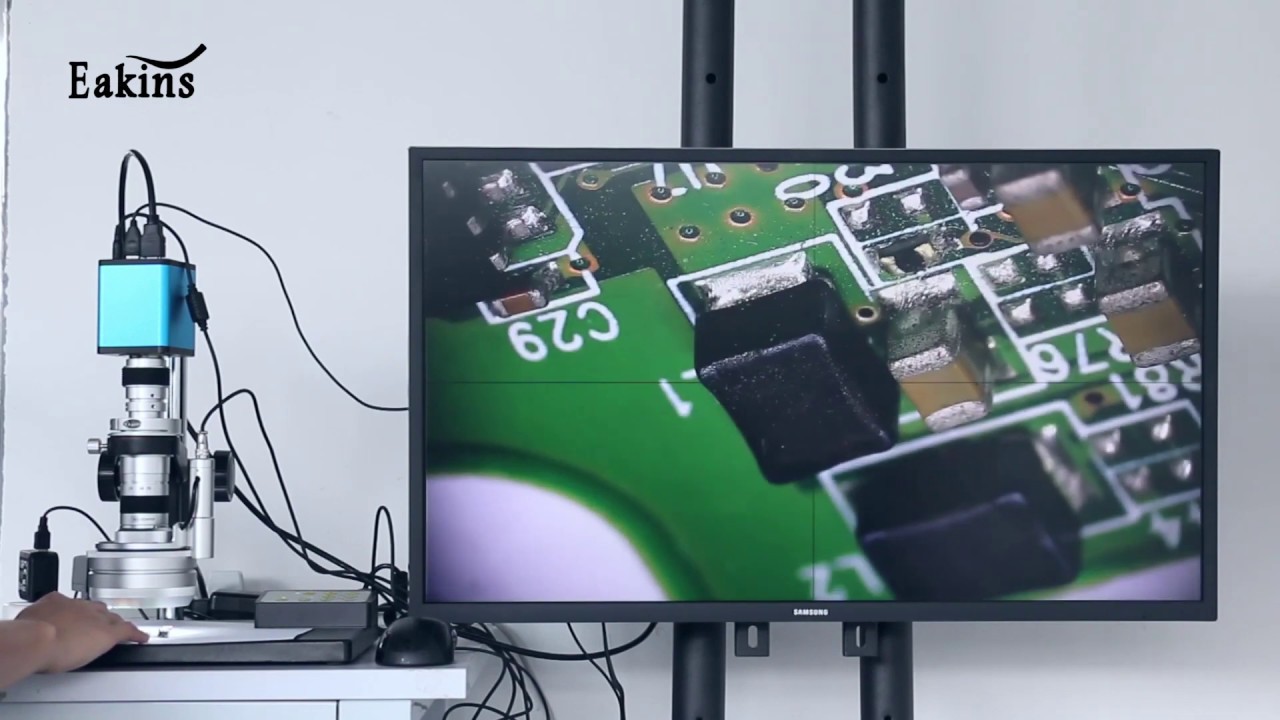

Скачать или смотреть Automatic Motorized Synchronous Motor Action 3D Stereo Industrial 25X - 150X C mount Zoom Lens

https://www.aliexpress.com/item/40010...

Coaxality and confocal
Magnification of the objective: 0.7X～4.5X, proportion: 6.4 : 1
Magnification of the objective: 1X~5X, proportion: 5 : 1
Magnification of the whole system can be improved to 50X~300X with a 1X CCD camera or improved to 25X~150X with a 0.5X
CCD camera
Working distance ：20mm with the 45°reflection module ; 32mm with the 30°reflection module.
Main fit dimension Φ48mm
Fine-tuning objective function and zoom location function are optional
Standard C connector(the distance between the bearing surface and the target surface of the CCD camera is
17.55mm).the size of The CCD camera thread connector is 1 inches and 32, the connector can be changed with CS
connector.
Servo motor or stepping motor, the rotation speed are 40r/min or 6r/min
Annular LED LAMP,the luminance is changeable
Transformer of the light source base:AC: 85V-265V, 50Hz-60Hz, DC: 12v, 5A
