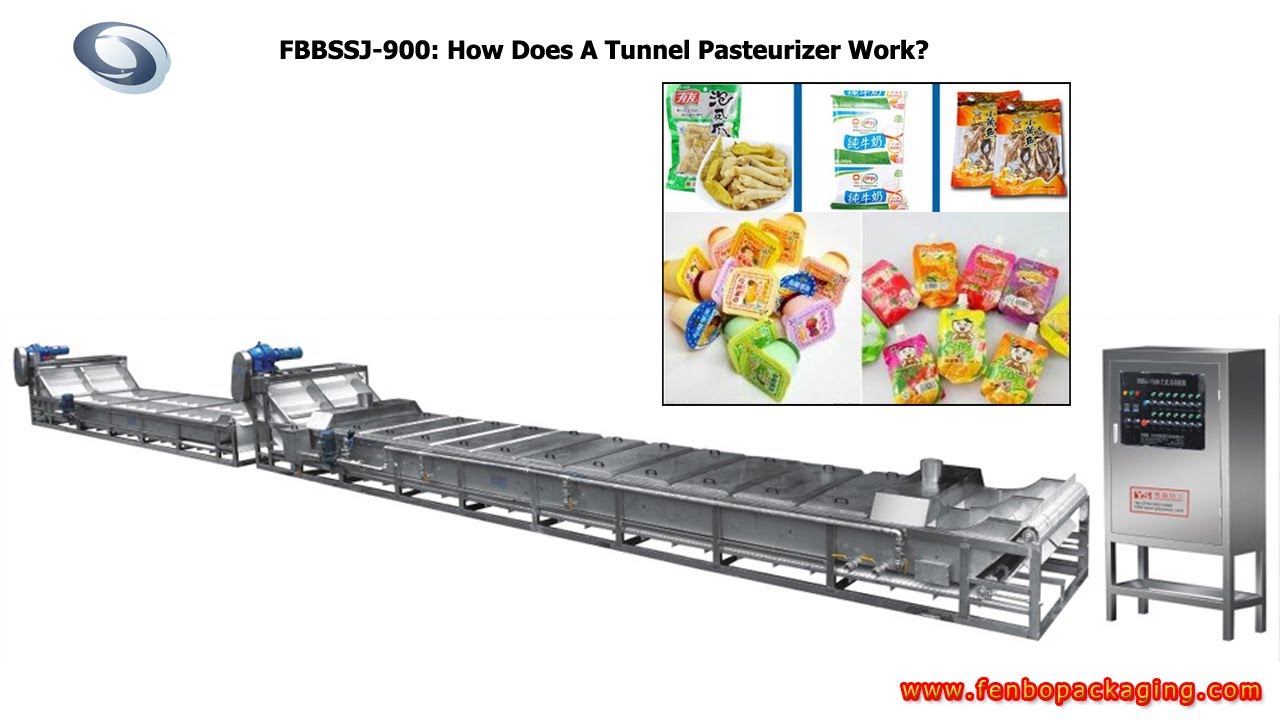

Скачать или смотреть FBBSSJ-900: How Does A Tunnel Pasteurizer Work?

tunnel pasteurizer,tunnel pasteurizer for sale,tunnel pasteurizer manufacturer,how does a tunnel pasteurizer work

web: www.fenbopackaging.com
Email: [email protected]
Whatsapp: +86-13556326469

Introduction
For the FB-BSSJ-900 tunnel pasteurizer, it is a kind of pasteurizer machine that adopt by the steam heating method for pasteurized the foods packaged applied by all kind of flexible packaging, the production output is up to 1.5~3.5ton/hour.

Feature
-Except the motor and bearings, other parts all are made of stainless steel, which fully meets the requirements of export food hygiene.
-This tunnel pasteurizer adopts 304 stainless steel mesh belt, which has the characteristics of high strength, small elasticity, not easy deformation and easy maintenance.
-This machine adopts steam or electrical heating. With automatic control steam inlet device, minimize energy waste.
-Adopt speed-regulating reduction motor to make the speed of conveyor belt adjustable.
-Reducer is driven by Planetary Bevel-type step less speed controller. Heat by steam and automatically control temperature. High efficiency. Low energy consumption and easy operation
-Drive method: the tunnel pasteurizer and cooling tunnel process adopt by the integrated drive,” forward type gear reducer” +” inverter motor”
-Heating system: heating by the external circulating steam, the temperature can be control within ±2℃;Controlled by the temperature controller, saving more steam volume; adopting by the pipeline steam mixer, the lower noise and the more precise temperature.
-Water source: adopting by the external circulating water pump, the intake sink included a filter.
-Heat preservation property: the heat preservation controlled by both side of the tunnel, upper of tunnel pasteurizer included the covers
-Frame of tunnel: The frame of tunnel is welding by the square tube of 80*40*3mm.
-Cooling tunnel: installing the forward type water drumming device, avoid the products to be sinke down.
-Drying tunnel: adopting by 3-section drying method of “air conditioning fan + air knife”.

Technical Parameters
Pasteurization temperature: 85℃~95℃(adjustable)
Pasteurization time: 10min~20min(adjustable)
Tolerance of pasteurization temperature: ±2℃
Method of temperature controlling: mechanical type temperature-compensated/closed-loop style automatic temperature control
Machine dimension (L*W*H): 19000*1500*1750mm
Length of pasteurizer tunnel: 7.5meter
Length of cooling tunnel: 4.5meter
Length of drying tunnel: 7meter
Available width of conveyor: 1200mm
Input conveyor format: single/double
Height of baffle: 150mm
Steam consumption (ton/hour): 0.5
Weight of machine: Approximate 5T
Total power (KW): 15
Power supply: 3 Phase / 380V /50Hz
Machinery material: Stainless steel # 304
Bearing material: Stainless steel SUS304
Conveyor material: MC plastic+ Stainless steel

Application
All kind of flexible packaging and plastic packaging container

How does a tunnel pasteurizer work in the workshop?
-products pasteurization 00:00
-products cooling 00:45
-products drying 01:06

Detailed information about FBBSSJ-900: https://www.fenbopackaging.com/tunnel...
Relative product model: https://www.fenbopackaging.com/tunnel...
