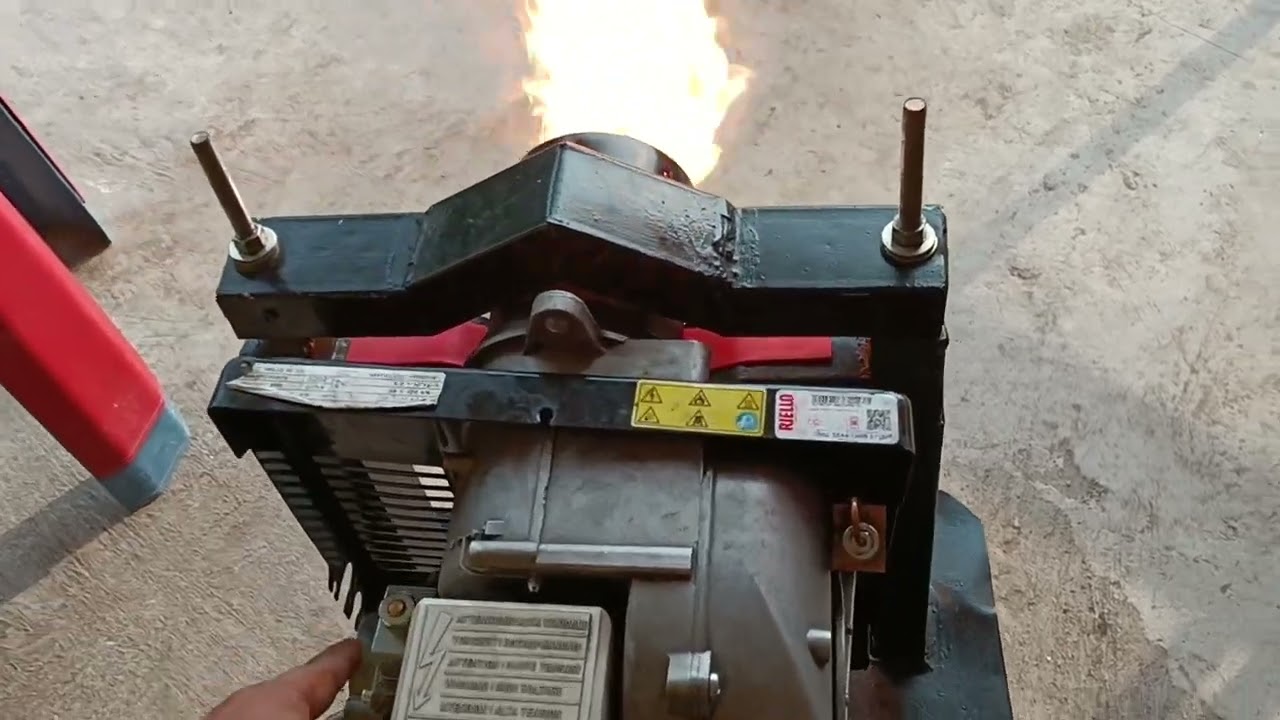

Riello R40 G10 - Service☎️✔081388666204🔥


RIELLO 40 G SERIES
The Riello 40 G series of one stage light oil burners, is a
complete range of products developed to respond to any
request for home heating. The Riello 40 G series is available
in ten different models, with an output ranging from 12 to
240 kW, divided into four different structures.
All the models use the same components designed by Riello
for the Riello 40 G series. The high quality level guarantees
safe working.
In developing these burners, special attention was paid to
reducing noise, to the ease of installation and adjustment,
obtaining the smallest size possible to fit into any sort of
boiler available on the market.
All the models are approved by the EN 267 European
Standard and conform to European Directives for EMC, Low
Voltage, Machinery and Boiler Efficiency.
All the Riello 40 G burners are fired before leaving the
factory.
G3 23,8 ÷ 35,5 kW
G3R 23,8 ÷ 35,5 kW
G3RK 15,0 ÷ 35,0 kW
G5 28,0 ÷ 60,0 kW
G5R 28,0 ÷ 60,0 kW
G5RK 12,0 ÷ 60,0 kW
G7 29,0 ÷ 69,0 kW
G10 54,0 ÷ 120,0 kW
G20 95,0 ÷ 213,0 kW
G20S 95,0 ÷ 240,0 kW

STATE OF SUPPLY
Specification
DESIGNATION OF SERIES
G 5 RK 1/230/50
Series : G
Size
Possible variations : R Light-oil pre-heater
K Cone shaped head
S Reduced output ignition
D Two stage output setting
Head length: ... standard head
TL extended head
Electrical supply to the system : 1/230/50 1/230V/50Hz
1/220/60 1/220V/60Hz
Completely automatic monobloc light oil burners, one stage operation, made up of:
Fan with forward curve blades
Metallic cover lined with sound-proofing material
Air damper, completely closed in stand by, with adjustment
Single phase electric motor 230 V, 50 Hz
Combustion head fitted with:
stainless steel head cone, resistant to high temperatures
ignition electrodes
flame stability disk
Geared pump for fuel supply, fitted with:
filter
pressure regulator
attachments for fitting a pressure gauge and vacuum meter
internal by-pass for preparing for single-pipe installations
Fuel feed solenoid valve incorporated in the pump
Photocell for flame detection
Electronic flame control equipment
Light oil nozzle
IP X0D (IP 40) protection level
Fuel pre-heater (optional)
Reduced output ignition mechanism (optional).
Standard equipment:
Two flexible pipes for connection to the light oil supply line
Two nipples for connection to the pump
Flange, screws and nuts for fixing
Thermal gasket
7-pin plug (on request)
Maintenance assembly
Instruction handbook for installation, use and maintenance
Spare parts catalogue.
