Simulating PSoC 5LP: A Guide for Strain Gauge Applications

When developing applications that involve sensors like strain gauges, especially in vehicles like ATVs, validating your design through simulation is essential. This is where the question arises: Which simulator should you use for the PSoC 5LP, especially if you've faced challenges with tools like Proteus? In this guide, we'll explore the solution to this dilemma and provide you with a clear path to effective simulation.

Understanding the Simulation Needs

What is PSoC 5LP?

The PSoC 5LP (Cypress Semiconductor) is a popular microcontroller used in various applications, including those requiring high-resolution ADCs. With a 20-bit ADC, it's particularly suited for acquiring accurate readings from sensors like strain gauges. However, to leverage its capabilities effectively, proper simulation beforehand is critical.

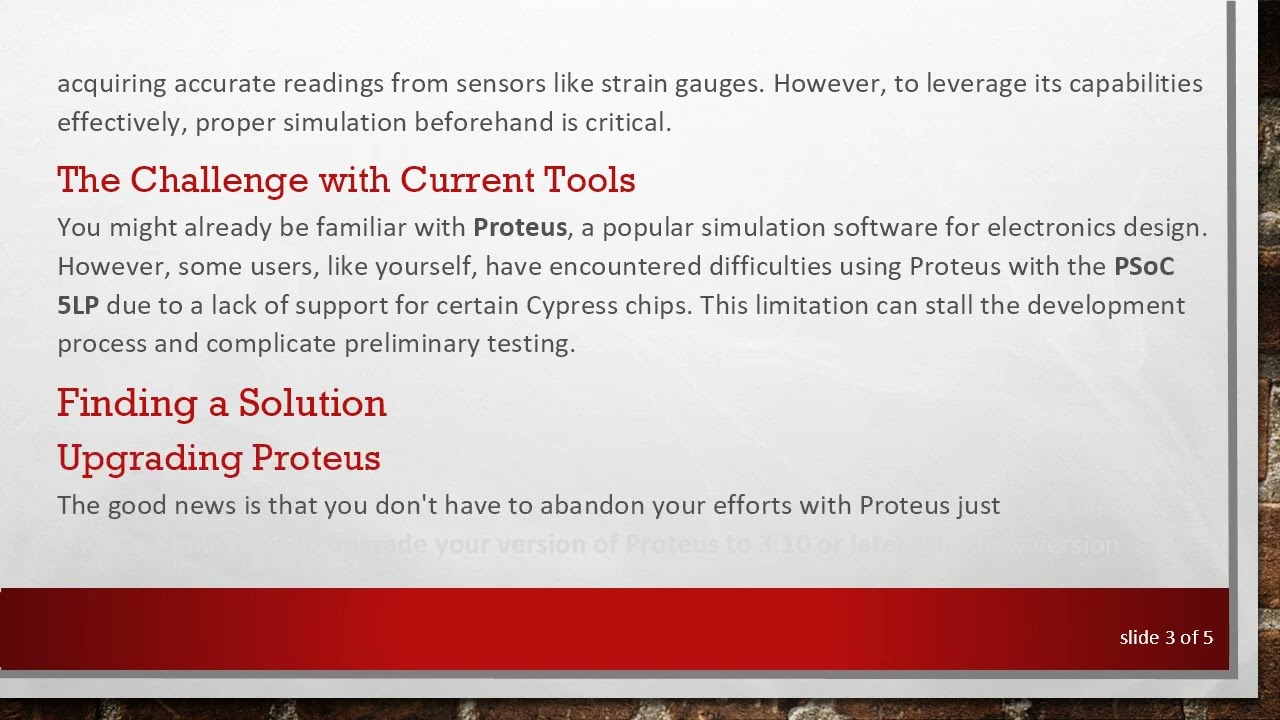

The Challenge with Current Tools

You might already be familiar with Proteus, a popular simulation software for electronics design. However, some users, like yourself, have encountered difficulties using Proteus with the PSoC 5LP due to a lack of support for certain Cypress chips. This limitation can stall the development process and complicate preliminary testing.

Finding a Solution

Upgrading Proteus

The good news is that you don't have to abandon your efforts with Proteus just yet! One effective solution is to upgrade your version of Proteus to 3.10 or later. This new version provides enhanced libraries and capabilities, specifically designed to accommodate a wider range of microcontrollers, including the PSoC series.

Steps to Upgrade and Enhance Simulation

Check Current Version: Ensure that your current version of Proteus is outdated and check for updates.

Download the Latest Version: Visit the official Proteus website or trusted software update platforms to download Proteus 3.10 or later.

Install and Configure: Follow installation prompts and, if necessary, download additional libraries that may be recommended for Cypress devices.

Access Library Resources: Many libraries can be found online, alleviating the need for manual searches. Make sure to review available libraries for components and features associated with the PSoC 5LP.

Test Your Setup: After upgrading, create a new simulation project and test your strain gauge readings to ensure everything is functioning as expected.

Conclusion

In conclusion, using PSoC 5LP for applications like acquiring strain gauge values on your ATV becomes feasible and efficient when you have the right tools at your disposal. By upgrading to Proteus 3.10, you can access a wealth of libraries and functionalities that will help you simulate accurately. Don’t get discouraged by initial setbacks; adjusting your tools can lead to successful results.

Thank you for reading, and happy simulating!
