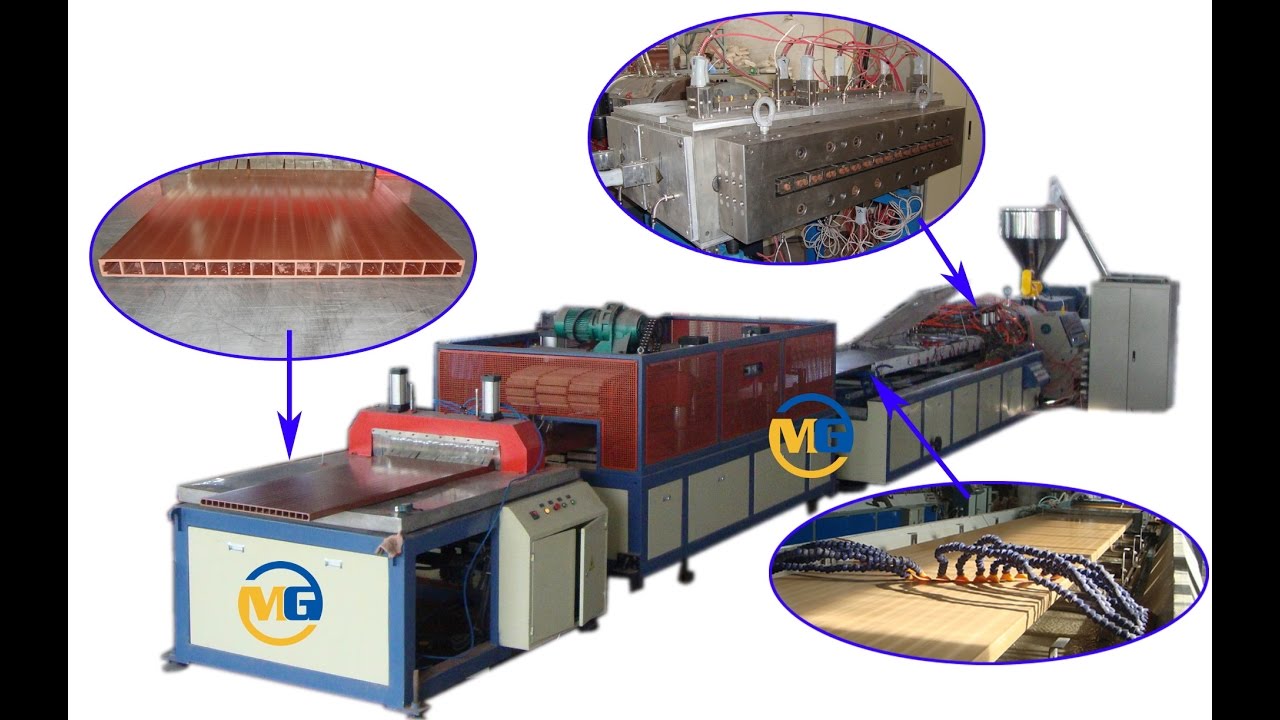

PE WPC door hollow board extrusion line
---MG PLas provides PE WPC door hollow board extrusion line and formula technology for the production of WPC door board profiles. www.mgplas.com

WPC is wood plastic composite, it is a composed product which is mainly made from wood powder or other cellulose materials, plastic and some necessary additives by extrusion process.
The complete PE WPC door hollow board extrusion line includes the following machines:
1, SJZ80 or SJZ92 conical double-screw extruder.
2, board moulds.
3,calibration table.
4, catapillar haul-off.
5, transverse cutter.
6, roller stacker.
And some auxiliary machines are necessary as following,
1, WPC materials mixer.
2, WPC material pelletizing.
3, WPC sanding machine。
4, WPC embossing machine(optional)
4, crusher and mill for reuse of waste WPC. Etc.
5, Air compressor and water chiller.

MG Plas’s PE WPC door hollow board extrusion line has excellent performance, for example, lower power consumption, high shaping ratio and output, stable and smooth extrusion, strong structure, high automation, etc.

Raw material for PE WPC door board:
Natural fibers: wood waste, saw mill waste, wood powder, wood flour, wood chips, bagasse, bamboo, coir fibers, rice husk, cotton stalks
Polymers: PE plastic
Additives: formula will be provided separately.

PE WPC door board size on SJZ92 extrusion line:
board width: 1250 mm (maximum).
board length: as per requirement through online cutting system.
board thickness: 10~40 mm(solid), 40~100mm (hollow).
board size: 600*20 mm, 750*40mm, 900*40 mm and many other customized sizes.
colors: multiple colors, as per requirement of customers.

Plant capacity(one set of SJZ92 extruder):
20m/hr or 300 kg/hr with a standard out size of 900*40mm WPC hollow board mould.

WPC door advantage
1, light weight structure
2, hollow door structure
3, with absolute strength
3, best to stand with high moisture and humidity level
4, high tensile strength
5, high screw holding capacity
6, better machinability
7, can be processed like natural wood, MDF plywood on any panel processing machine
8, 100% environment friendly
9, corrosion resistance
10, non-toxic and borer free
11, easy to cut and saves tooling life almost 30% than MDF and particle boards

Surface decoration of WPC door
Can be applied with PVC foil lamination or vacuum press
Paper lamination can be done easily
Printing can be done with high resolution
Foil transfer mechanism
PVC edge bending can be applied nicely
PU coating and UV coating can be donw
Surface can be painted
Moldings can be applied

Applications of WPC door
Covers master door to bathroom door
Main room doors
Bathroon doors
Hollow partition walls
Kitchen door
Cupboard door
Office applications
