Cropped to 14:9 (actually 19:12 to fit neatly into all YouTube resolutions) because the VHS is letterboxed, also lets you zoom in on the detail (or lack thereof) a little more.

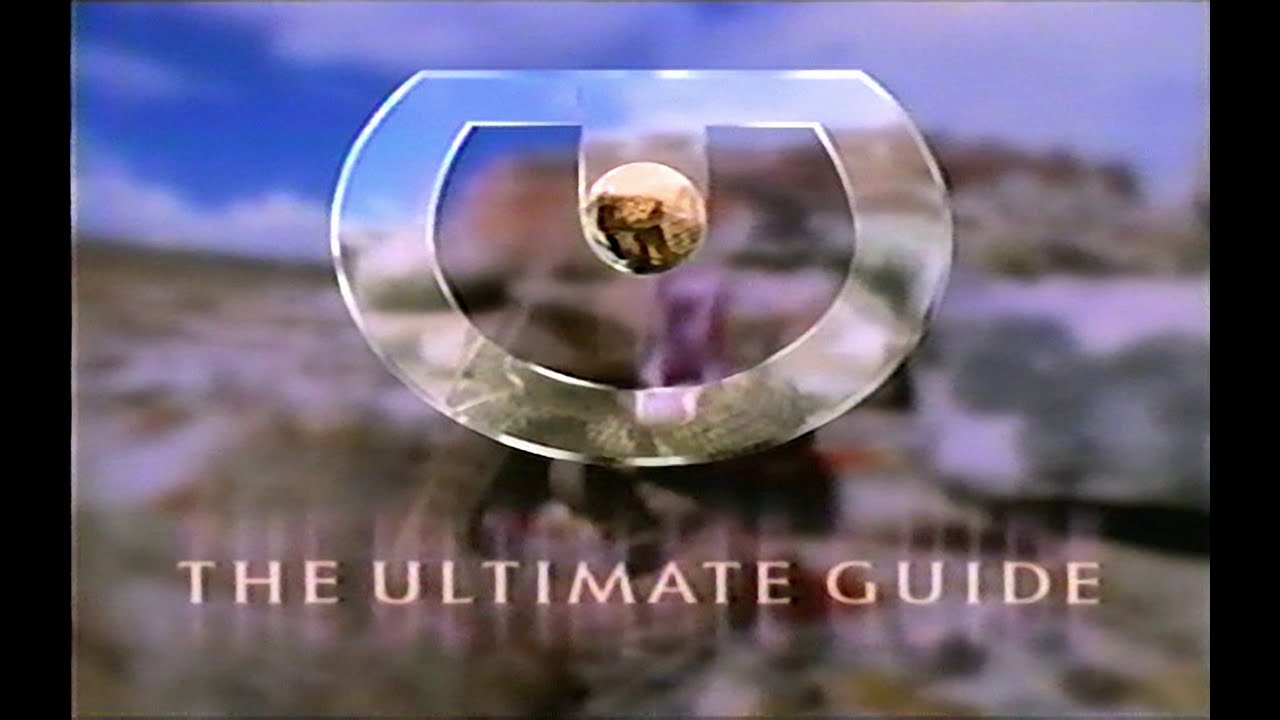

Footage taken from The Ultimate Guide to Snakes (1997 VHS). Footage belongs to the Discovery channel (now owned by Warner Bros.)

For the Domesday Duplicator, the capture at first looked out of phase. Browns looked red, cyan looked teal, etc. After researching a bit, I realized that gen_chroma_vid.sh (part of VHS-Decode) would not accept a command parameter for chroma gain and phase like ld_chroma_decode (part of LD-Decode and the VHS-Decode fork). So I went into the source code and modified it myself so it would accept those parameters. I did the most Linux thing you can do. 🐧🐧🐧🐧🐧🐧🐧🐧

Once I modified it, I did my best to make the colors on the Domesday capture look as natural as possible. When viewing it side by side, it almost makes the other ones look too saturated to be natural.

#DomesdayDuplicator #vhs

Comparison of three different capture cards used on this channel. All of them are processed the same way to level the playing field.

Canopus ADVC110 (On this channel August 2018 - February 2021, 720x480 4:1:1)
● Captures saved with VEGAS Video Capture

Blackmagic Intensity Pro 4K (On this channel February 2021 - July 2022, 720x486 4:2:2)
● Captures saved with Blackmagic Media Express

Domesday Duplicator (On this channel July 2022 - present, 760x488 4:2:2) domesday86.com
● Captured with Domesday Duplicator capture app
● Time-base corrected and decoded with vhs-decode (chroma gain 1.3, chroma phase 20) https://github.com/oyvindln/vhs-decode
● Audio recorded separately from the VCR using Audacity and my computer's motherboard's audio in. Only card not to use its own audio.

All cards:
● Output processed in AVISynth+ (see script below)
● Downscaled (Lanczos3) to 4560x2880 and saved to Apple ProRes (HQ 4) in Virtualdub2
● Assembled, normalized audio amplitudes and saved to GoPro Cineform "Best" quality in DaVinci Resolve
● Uploaded here (file size 23.8gb)

AVISynth+ script used for all captures:

SetFilterMTMode("DEFAULT_MT_MODE", 2)
FFMpegSource2("E:\folders I don't know\RF-Sample_2022-07-25_00-06-53.lds.mkv")
ConvertToYUV422()
AssumeTFF()
QTGMC( Preset="Very Slow", SourceMatch=3, Lossless=2, MatchEnhance=0.75, TR2=1, Sharpness=0.1) # Choose preset based on overall speed/quality you want. See Y below
Crop(6,42,748,404) # crop to 404 lines tall
nnedi3_rpow2(rfactor = 8)
Enable MT!
Prefetch(4)
