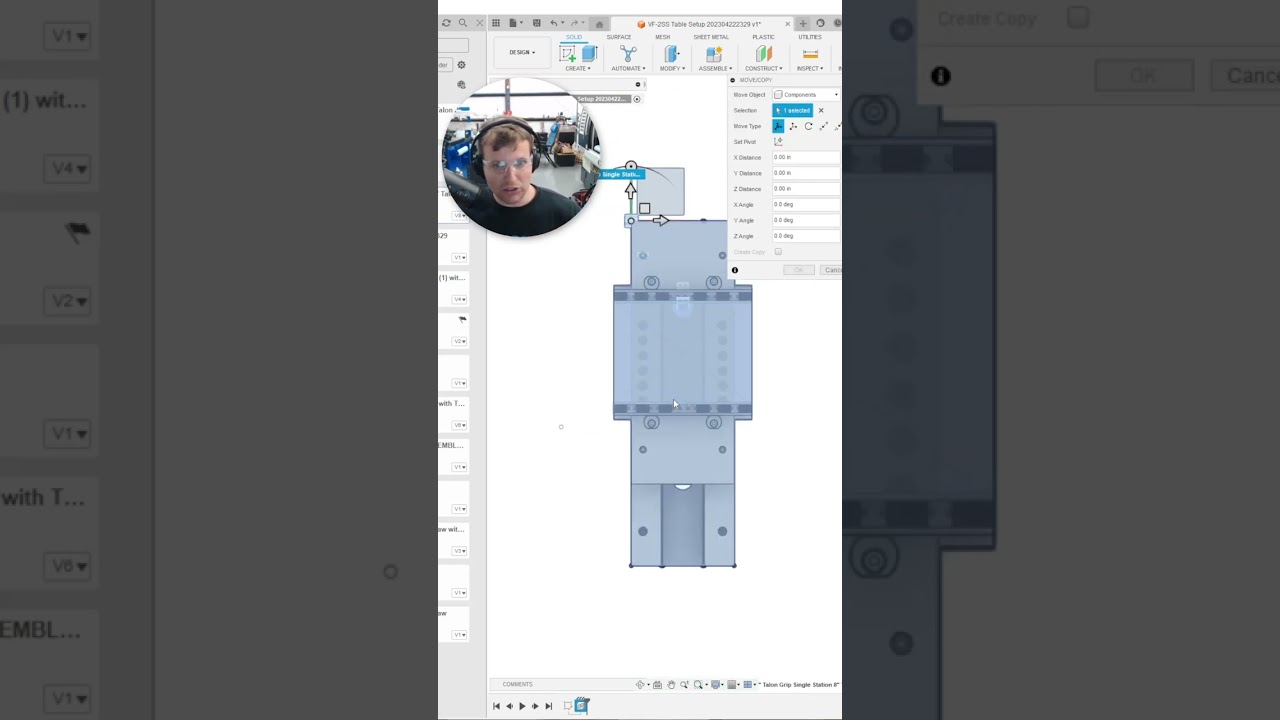

I'm going further down the rabbit hole of modeling my workholding. I modeled both of my vises. Being sure to put the origin of each vise model at the theoretical sharp corner on the back left of the vise body. Then I used the vise corner probing cycle with the 20" vise as G54 and the 17" as G55. Copying the machine coordinates from the work offset page, I inserted two points on a blank sketch and dimensioned them with the machine coordinates. Then I imported the vise models and moved their origins to those points. Checking with calipers I was within a few thousandths
