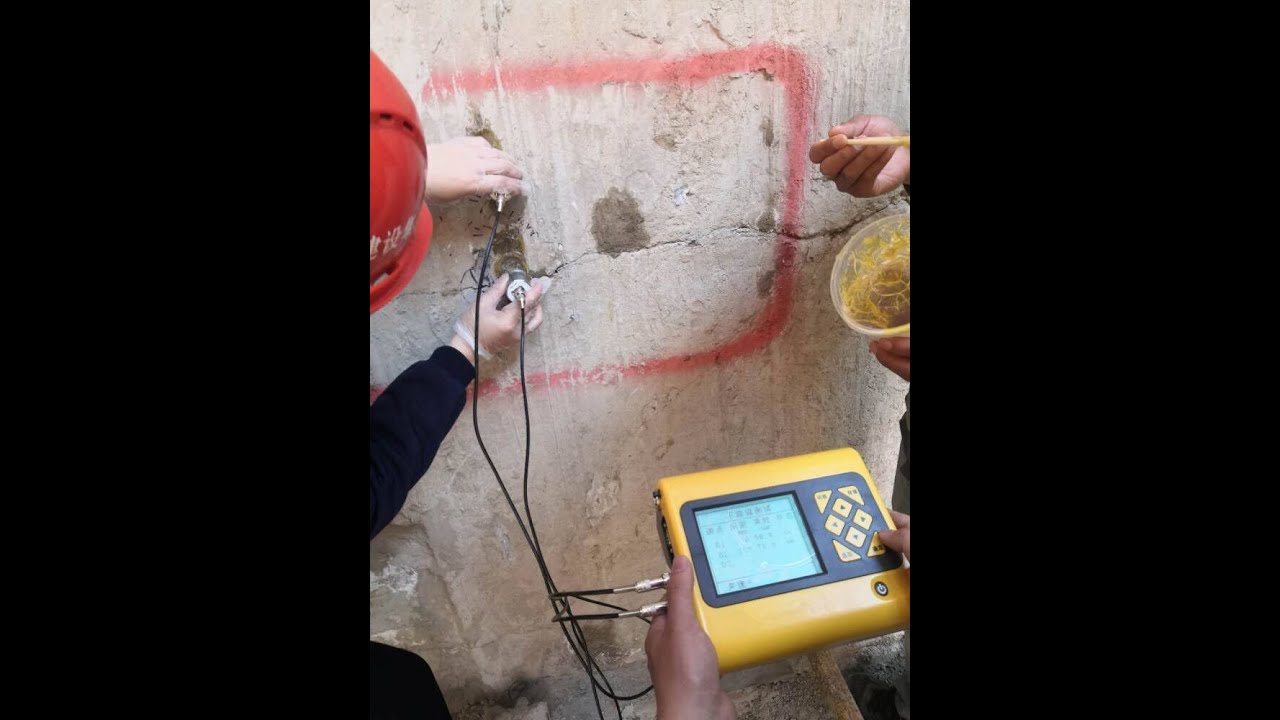

Скачать или смотреть Concrete Crack Depth Gauge/Medidor de profundidad de grietas en concreto

Introduction
Concrete crack depth tester mainly is used to test crack depth and sound wave propagation velocity in concrete according to sound wave diffraction propagation principle. It is a intelligent Instrument incorporating functions such as testing, saving and transmitting data.
Work Principle
Crack depth sounder composed of the signal transmitter, receiver, signal processor, display, keyboard, data transmission unit. The first signal transmission unit to the concrete internal launch ultrasonic receiver transducer receives the ultrasonic signal, the signal processing unit for processing the received signal, the transceiver spacing conversion depth of the cracks and display, storage.
Main Specification
Test range: 10mm-200mm
Detection accuracy: less than ± 10% relative error
Memory: 10 000 test point data
Operating environment: Ambient temperature: 0 ℃ -40 ℃
Relative humidity: less than 85%
Power supply: 9V DC/6 AA batteries
Working Hours: 30 hours
Instrument size: 225mm × 180mm × 80mm
Transducer size: Φ25 × 40mm
