Скачать или смотреть 2 Way Switch Wiring Diagram | Control One Bulb from Two Switches |

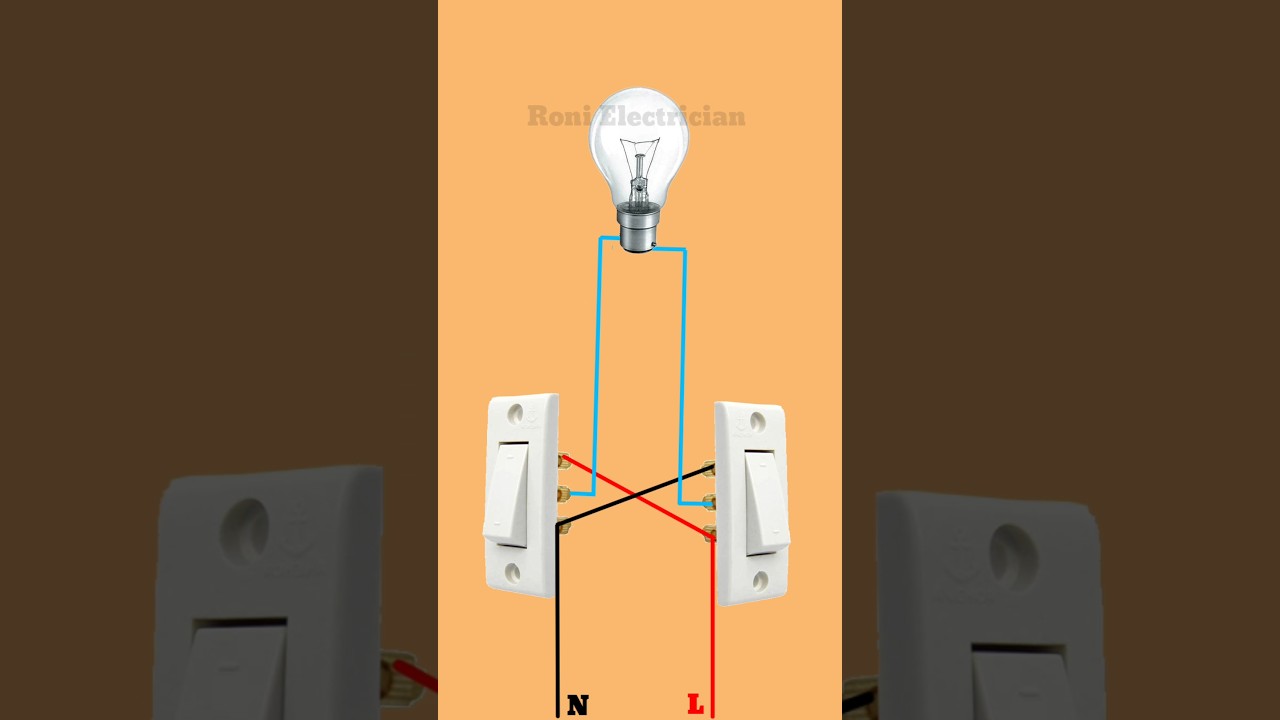

Is diagram me 2-way switch wiring dikhaya gaya hai jisme ek hi bulb ko do alag switch se control kiya ja sakta hai. Ye system staircase, bedroom, ya hallway me use hota hai jahan ek switch gate par aur doosra bed ke paas lagaya jata hai.

🔸 Live (L) wire first switch ke common terminal me jata hai.
🔸 Dono switches ke traveler terminals cross connection se jude hote hain.
🔸 Second switch ka common terminal bulb ke ek side me jata hai.
🔸 Bulb ka dusra terminal Neutral (N) se connect hota hai.

Jab dono switches ek position me hote hain to circuit complete hota hai aur bulb ON hota hai. Kisi ek switch ki position badalte hi circuit break hota hai aur bulb OFF ho jata hai.


---
