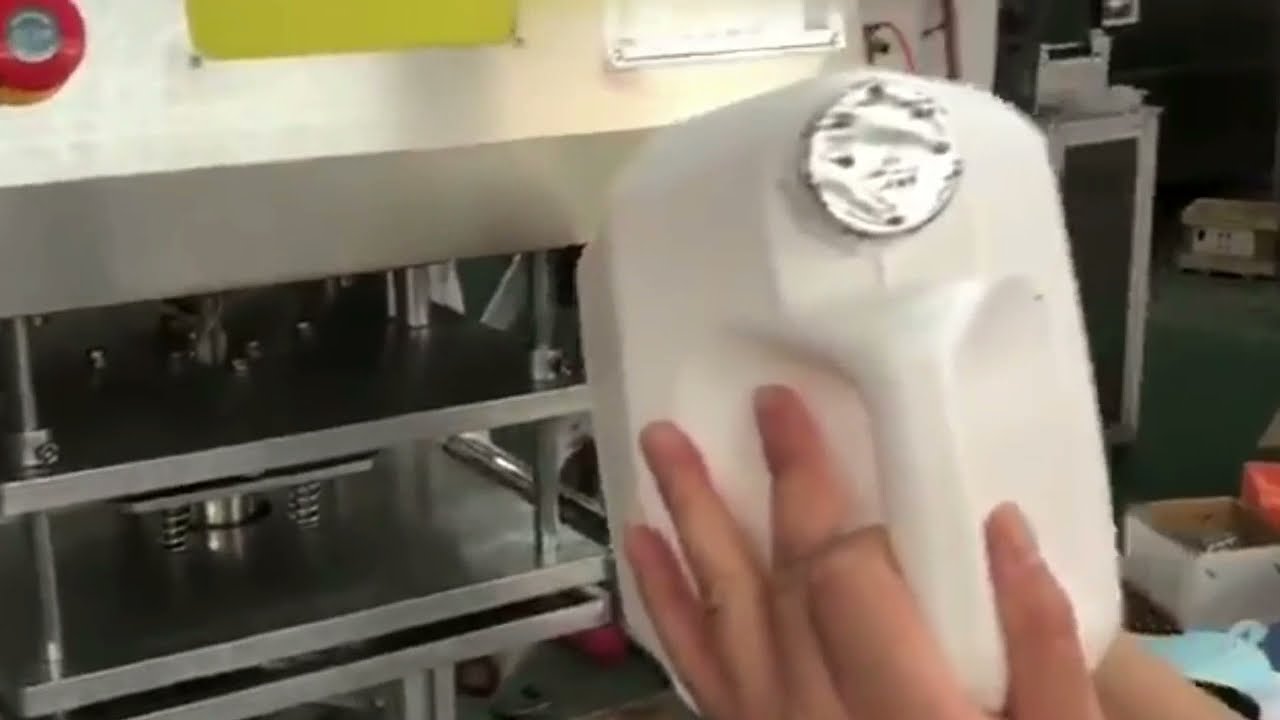

Tabletop semi automatic lubricant jerry can foil sealing closing machine
Performance and features
l. It adopts the newest type high-power transmission mechanism to
arrange the chain and drive the main driving shaft. The errors and
noises of other gear wheel transmission can be avoided
2. Brand controlling system is adopted; also it can be equipped
with detecting and rejection function device

according to the user s requirement.
3.It adopts photoelectrical controlling system to make PVC, PTP,
Aluminum/Aluminum material to be automatically fed and waste
side to be cut automatically to guarantee the Synchronous stability
of over-length distance and multi stations
4It can be optional equipped with photocell correction device
stepper motor traction and image- character register to
optimize packing grade.
5.The machine is suitable for industries of foodstuff, medicine
medical instruments, hardware, electronics and etc



Technical Parameters of liquid blister Packing Machine

Model AZ-80

Punching speed: 10-20 times/min

Production capacity: 2400 plates/hour

Forming area and depth:

105*70 (standard depth≤15mm) customized depth

Standard stroke range: 30-80 mm (can be designed according to customer requirements)

Standard plate: 80-57mm (can be designed according to customer requirements)

Air pressure: 0.4-0.6 MPa

Air consumption: (air compressor) ≥0.3m3/min

Total power of power supply: 220V 50Hz 1PH 2.8Kw or 110V 60HZ 1PH

Main motor power: 0.75Kw

PVC hard film: 0.15-0.5*110mm

PTP aluminum foil: 0.02-0.035*110mm

Dialysis paper: 50-100g*110mm

Mold cooling: tap water or Fuhuan water

Dimensions: 1840*900*1300 mm

Weight: net weight 480 kg, gross weight 550 kg

Noise: less than 750BA



Technical Parameters

Model AZ-150

Rush times: 15-40 times/min

Production capacity 1200-4200 editions/hour

Maximum forming area and depth 17011026 mm (m)

Standard stroke range 20-110 mm (can be designed according to customer requirements)

Standard plate 80*57mm (can be designed according to customer requirements)

Air pressure 0.6-0.8 MPa

Power supply total power 380V 50Hz 5.2Kw 3PH or 220V 60HZ 3PH

Main motor power 1.5Kw

PVC hard film: 0.15-0.5*140mm

PTP aluminum foil 0.02-0.035*140mm

Dialysis paper 50-100g*140mm

Mold cooling: tap water or circulating water

Dimensions 2300°650°1615mm

Weight 900 kg

Noise less than 75dBA
We are an experienced manufacturer and exporter of packaging machine, printing machine, mask machines and more.
For any enquiries, please contact us now
Shenzhen Azone Machinery Co.,Ltd
Contact:Steven Phang
Email :[email protected]
Tel/Fax: +86 755 2740 3482
Mobile/What'sapp/Wechat:+86 133 9215 7135
Company website:https://www.azonemachinery.com/produc...
