Rotating flaring machine for flare flange connection
37&90 degree flarings

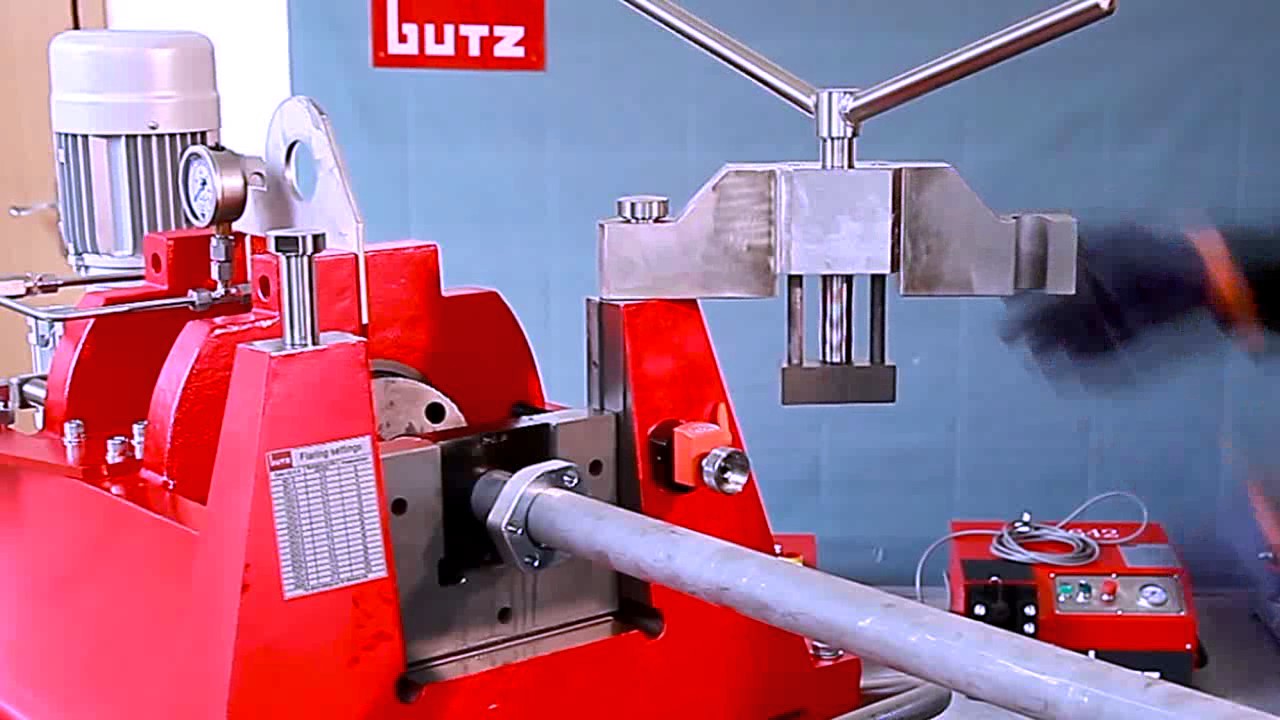

PFE170B is a simple 37 & 90 degree flaring machine for SAE/JIC flare flange connections, by this machine, tube can achieve an excellent sealing surface and a high-strength tube connection.
The equipment is very robust and easy to use. It saves time and effort compared to conventional welding of flange connections. PFE170B workcenter is ideal for workshop use and onsite installation.

Technical parameters
Model PFE170B
Tube OD. 6-170mm
Max tube OD and thickness 170x5mm
Cycle time 30-60s
Production capacity. Max 300 times/day
Dimension. 900x900x1600mm
Weight 750kg
Power supply 380v 3p 50hz or on request

For more information, please visit www.butz-fluid.com
