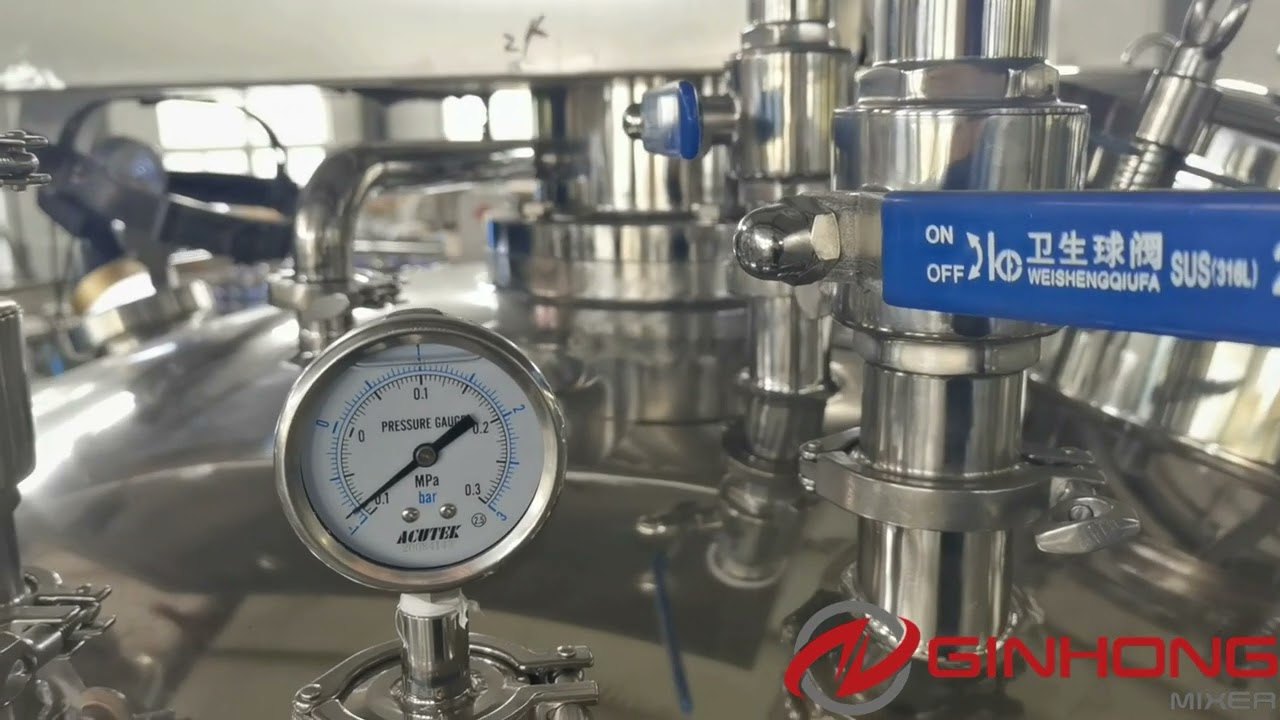

Скачать или смотреть YX-1000 vacuum mixing tanks with working platforms

https://ginhong.com/mixing-tanks-vess...

YX vacuum mixing tank is a stainless steel mixer machine for the manufacture of low-viscosity preparations and fluid in the cosmetics, pharmaceuticals, food and chemicals industries.

It has very similar design as YX closed mixing vessel except for the thickness of stainless steel and vacuum system.

Key Features
Complete process of dissolving, mixing, heating and cooling in one unit
Working capacity from 100L to 50000L
Suitable for shampoo and preparations below 10,000cps viscosity
Variable speed for agitator
Double jackets for heating and cooling
Different jacket designs available for steam and electric heating
Double temperature probes and controllers for electrical heating in mixer tank
Vacuum system to take out the air bubbles during mixing and to transfer the ingredients
All contact parts are made of SS304/316L and mirror polished
Three or four supporting legs
The specifications of the mixing tank comply with cGMP regulations
Push buttons control panel for easy operation
Power supply of 380V, 50Hz, 3 Phase

Machine Characteristic
Working
capacity (L) Agitator
power (kw) Speed
(rpm) Homogenizer
power (kw) Speed
(rpm) Vacuum
pump power (kw) Heating Method
200 1.1 0~65 2.2~4 3000 1.45 Steam;
Electric Heaters;
Hot Water
300 1.5 0~65 2.2~4 3000 1.45
500 2.2 0~65 5.5~7.5 3000 2.35
1000 3 0~65 7.5~11 3000 3.85
2000 4 0~53 11~15 3000 4
3000 5.5 0~53 18.5 3000 5.5
5000 11 0~42 22 3000 11
10000 15 0~42 30 3000 15

General Applications
Cosmetics & Toiletries: cream, lotion, wax, mascara, gel, toothpaste;
Pharmaceuticals: ointment, dental composite, syrup, injection;
Food: mayonnaise, dressing, jam, butter, margarine, wasabi;
Chemicals: polyester, synthetic fiber, shoe cream;

Mixer Options
Contra mixing design or other slow agitator and impeller designs available
Extra high speed disperser or batch homogenizer mounted from top or bottom to help dissolve, disperse, emulsify and homogenize
Cold mixing design is available
Platform for one or more vacuum mixing tanks
Delta, Panasonic or Siemens PLC for automation of mixing, dissolving, transferring, heating and cooling etc
Mettler-Toledo load cells
Pressure vessel design for different steam pressure
Spray ball can be equipped to connect to customer’s CIP system
SIP is available upon request
Explosion proof motors and electrics
Different power supply acceptable

If you want to learn more about our YX-1000 vacuum mixing tanks with working platforms , please feel free to contact me.
