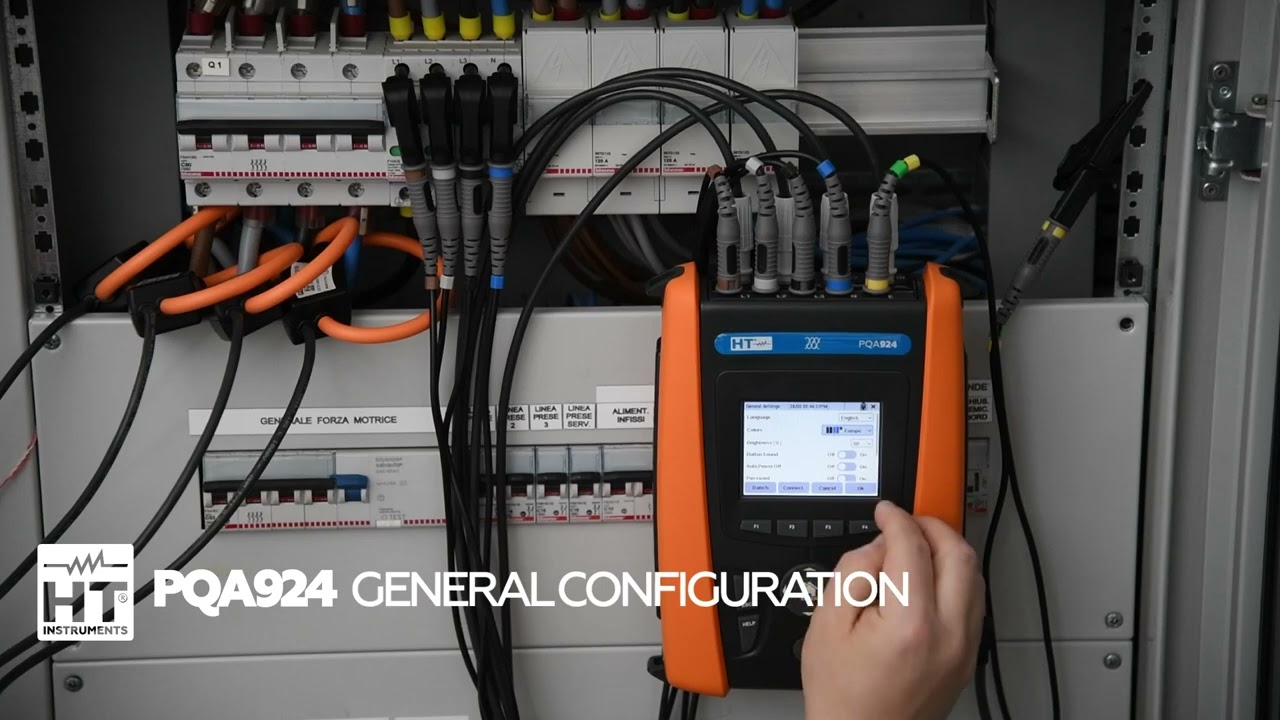

Скачать или смотреть HT PQA924 Tutorials (ENG)

PQA924

Power and Energy Quality Analyzer - Class S

› AC voltage in single-phase and three-phase systems
› AC current in single-phase and three-phase systems
› Cosphi, Power Factor, K-Factor
› Voltage unbalance
› Flicker
› Active, Reactive, and Apparent power/energy
› Voltage and current harmonic amplitude and phase up to the 63rd order with THD% calculation
› Power harmonic amplitude up to the 63rd order
› Voltage and current interharmonics up to the 63rd order with THI% calculation
› Voltage anomalies (dips, swells) with 10ms resolution (@50Hz)
› Fast voltage transients (8kV, 1µs)
› Inrush current for electric motors
› Event waveform recording (anomalies, fast transients, and inrush currents)
› Phase sequence detection
› Data transfer to PC via HTAgorà software
› Up to 3180 simultaneously recordable electrical parameters with programmable integration period
› USB, Ethernet, and Wi-Fi connection
› Memory card
› Color touchscreen display

Maximum accuracy and reliability with the auto-configuration (AUTOSET) function
The PQA924 features an advanced auto-configuration function designed to eliminate connection errors and optimize setup time. With the AUTOSET mode, the operator can ensure the correct assignment of clamp sensors, preventing incorrect measurements and discrepancies in recorded electrical values.

4 key reasons to use the AUTOTEST function
› Automatically detects connected current transducers, enabling instant configuration with zero margin for error.
› Prevents wiring errors that could compromise measurement accuracy.
› Avoids inconsistent electrical values and the need for repeated recordings.
› Automatically corrects reversed clamp connections, preventing misalignment between voltage and current that could lead to erroneous readings.
