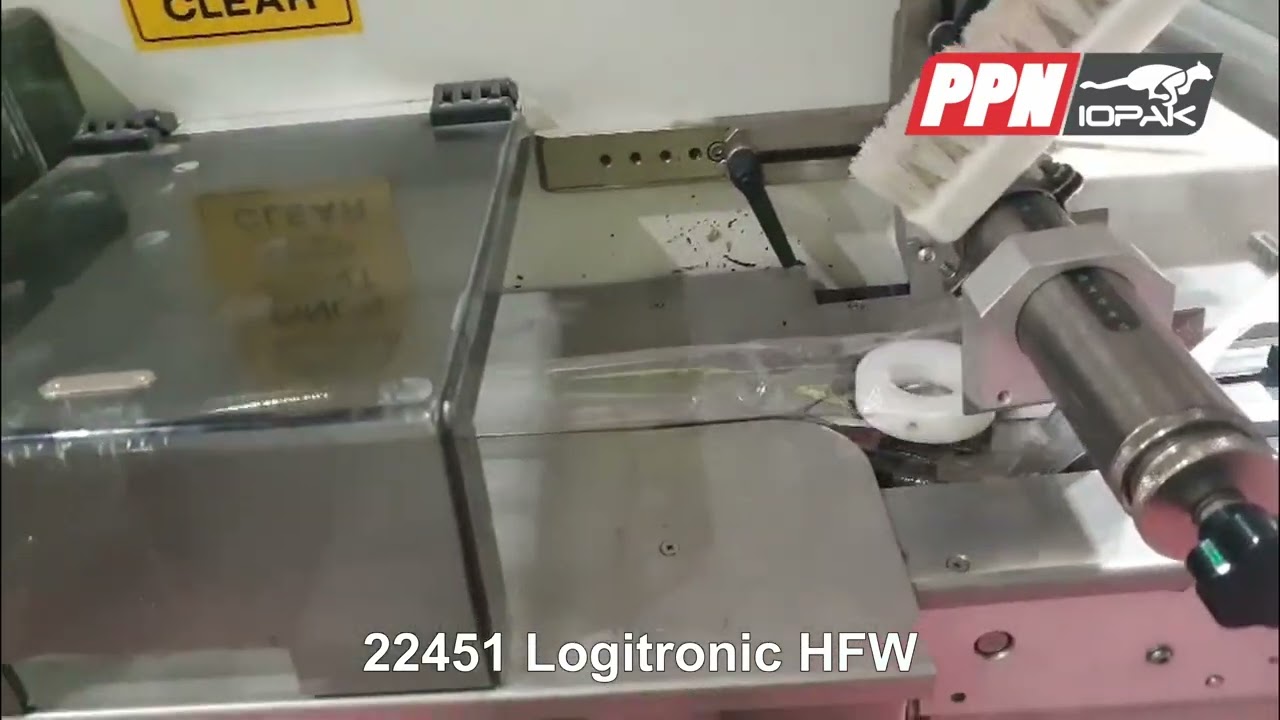

Logitronic Engineering Horizontal Flow Wrapper RPM500 SERVO

RPM 500 - Servo Packing machine with automatic feeding system for small chocolate bars and small plastic/cardboard trays

RPM 500 SERVO Features:

Pillow-Bag style packs Horizontal Flow-Wrapping Machine designed to make pillow-bag style packs from a roll of heat or cold sealable wrapping material.
Hygienic Cantilevered Design Manufactured with modular pre-assembled units designed to be easily accessible for cleaning and maintenance.
Fully servo control with axis motion controller and brushless servomotors for Infeed Conveyor, Fin-Seal Wheels and Rotary Sealing Jaws.
Operator Machine Interface: User friendly HMI with Colour Touch Screen to set and save all machine parameters (bag length, cut position, jaws motion profile, wrapping speed and others).

Sizes: Bars: 35Lx30Wx12H mm,
Trays: 142Lx65Wx35H mm

Capacity: Up to 180 packs per minute (product and length dependant).

Model: RPM500 SERVO
Stock Number: PHFF22451B
Size/Capacity: All Servo Driven

Sizes: Bars: 35Lx30Wx12H mm,
Trays: 142Lx65Wx35H mm

Capacity: 60-80 packs per minute
