Скачать или смотреть eHIROBO.com - WALKERA QR W100S FPV HD Camera UFO with DEVO F4 Transmitter RTF - 2.4GHz

WALKERA QR W100S FPV HD Camera UFO with DEVO F4 Transmitter RTF - 2.4GHz
http://www.ehirobo.com/shop/p12854/WA...

QR W100S Features:
‧Enlarged propeller for greater lifting power
‧Equipped with ratio gear for longer flight time
‧Support WALKERA DEVO series transmitters
‧The usage of 6-Axis gyro and intergration design of the flight status control, ensures the precise location of the flight performance
‧Adopting quad-motors driving system, stable flight, and can easily do the front and back, left and right rolls
‧The simple and compact modularized design, easy to install and maintain
‧Flight time will be up to 3 to 7 minutes on a 3.7V 600mAh Li-Po
‧The RX firmware can be updated online (required UP02 upgrade cable and adapter)
‧Support WALKERA Devention series radio include: DEVO 4, 6, 6S, 7, 7E, 8S, 10, 12S
‧View your video simultaneously

QR W100S Specification:
‧Main rotor dia.: 105mm
‧Receiver: RX2646H-DS
‧Gyro: 6-Axis
‧Drive motor: HS-8520
‧Flight time: 3-7 mins
‧Battery: 3.7V 600mAh Li-Po
‧Weight: 88.3g (Battery included)
‧Dimensions: 146*146*52mm

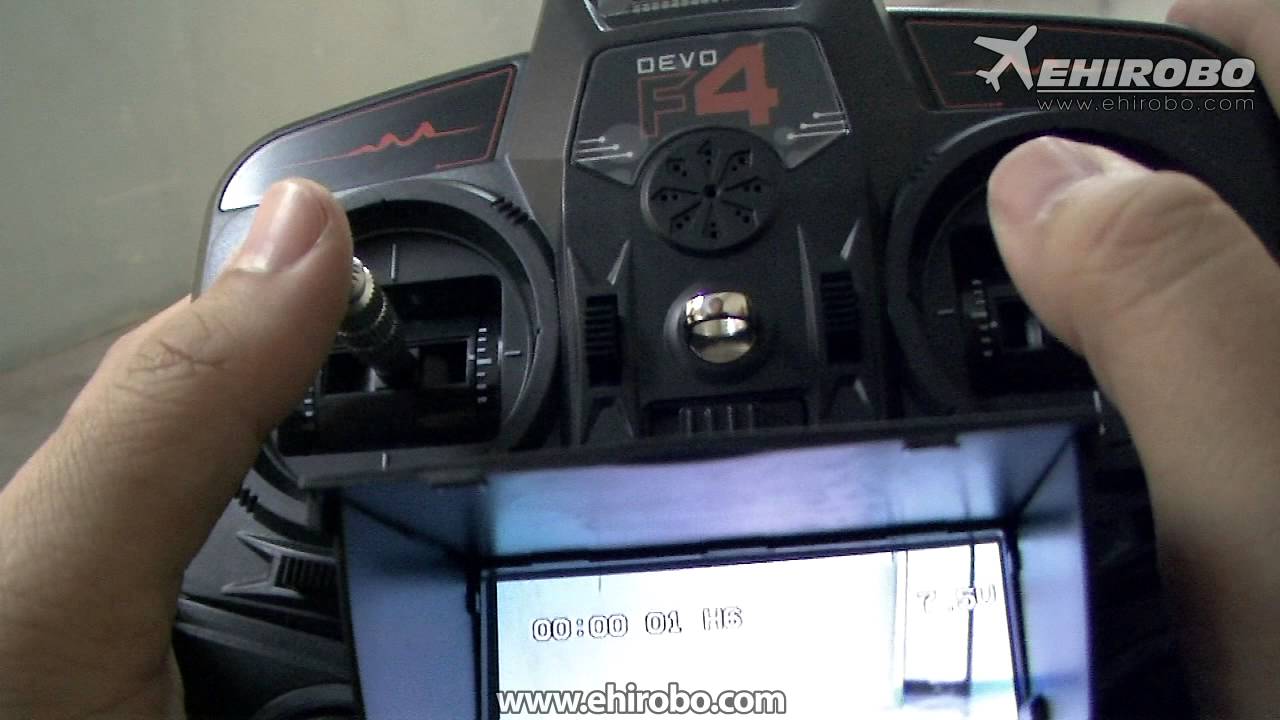

DEVO F4 Features:
‧DEVO F4 adopts 2.4GHz Direct Sequence Spread Spectrum (DSSS) technology and features automatic ID binding and ID assignment. It can also be customizedly set as fixed ID code
‧5.8G real time image transmission
‧USB online update makes you always enjoy the lastest firmware
‧Adjustability of hi-frequency output power enjoys more personality and friendly environment
‧Wireless data transmission between two DEVO F4 helps experience the training function
‧Up to 15-model data can be saved
‧Super large LCD dusplay features direct and convenient setting
‧Shape design accords to human engineering and provides comfortable holding
‧Both rhe length and tension of the sticks can be adjustable
‧DEVO F4 can be freely switched among Modes 1, 2, 3 and 4
‧Suitable for 4 channel helicopter and aeroplane

DEVO F4 Specification:
‧Encoder: 4-channel micro computer system
‧Frequency: 2.4GHz DSSS
‧Output power: ≤ 100mW
‧Current drain: ≤ 500mA (100mW)
‧Power supply: 7.4V 800mAh or 5#Battery 4*1.5V or NiMH 4*1.2V 1600 - 2000mAh
‧Output pulse: 1000 - 2000Ms (1500Ms Neutral)
‧Image receive: 5.8G
‧Channel select: 4 - 8 channels

TX5805 Specification:
‧Pixel: 200 mega pixel
‧System: PAL / NTSC
‧Resolution: 1280*720
‧Working voltage: 8V - 5V
‧Screen: Color
‧Definition: 420TVL
‧Working temperature: -40 - +80°C
‧White balance: Auto
‧Weight: 8g
‧Dimension: 48*22*9.5mm
