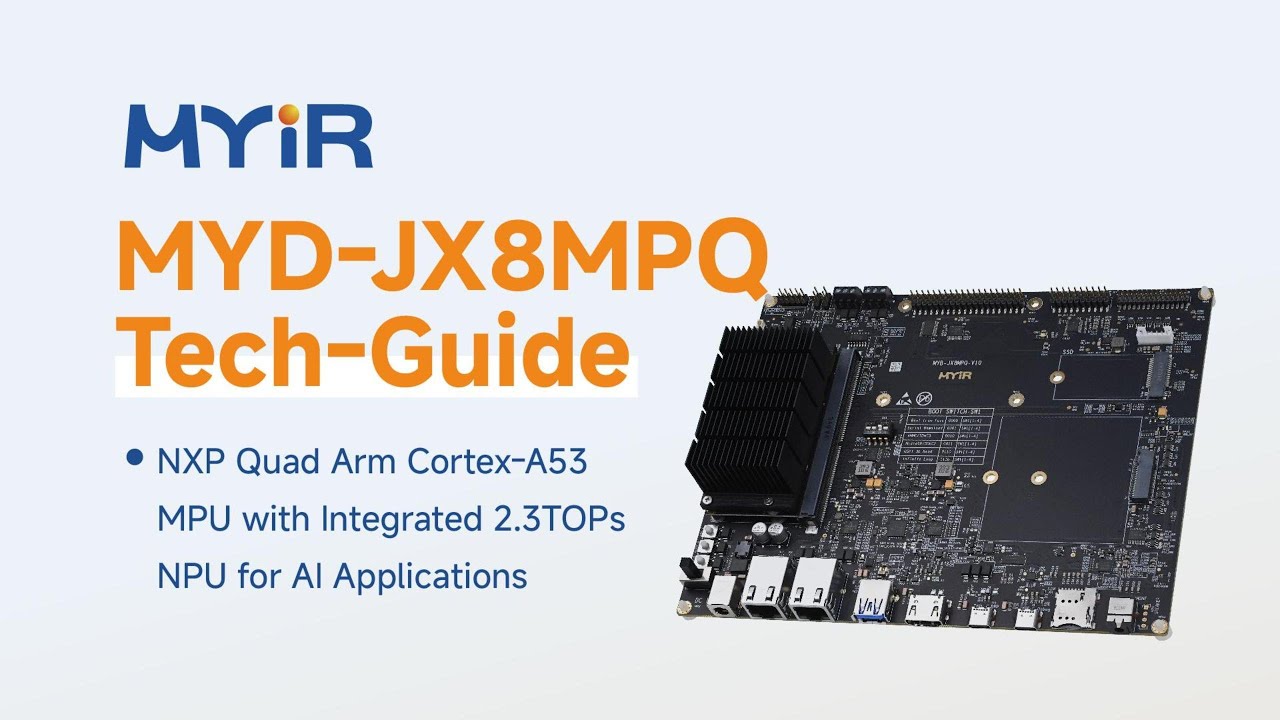

Скачать или смотреть i.MX 8M Plus based MYD-JX8MPQ Development Board Quick Start Guide

This video will guide you how to startup MYIR's MYD-JX8MPQ Development Board quickly.

MYIR offers MYD-JX8MPQ Development Board for evaluating the MYC-JX8MPQ SOM, the base board has taken great computing and multimedia capabilities of the i.MX 8M Plus processor to provide 2 x MIPI-CSI (4-lane) Camera Interfaces, 1 x LVDS (dual-channel)/2 x LVDS (single-channel) /1 x MIPI-DSI (4-lane), up to 800Mhz HiFi4 Audio DSP and HDMI with up to 4k resolution. It also has strong communication connectivity with 1 x Debug serial port, 1 x USB 3.0 OTG, 1 x USB 3.0 HOST, 2 x Gigabit Ethernet, 2 x CAN, 2 x M.2 Sockets (one for 5G LTE Module and one for PCIe SSD), 1 x 10-pin extension header for WiFi/Bluetooth module and one 2 x 20-pin UART/I2C/SPI/GPIO extension header which is compatible with Raspberry Pi interface, Micro SD card slot, etc.

Measuring 45mm by 82mm, the MYC-JX8MPQ is a high-performance embedded ARM SOM based on NXP's powerful quad Arm Cortex-A53 i.MX 8M Plus processor with 800MHz ARM Cortex-M7 Real-time co-processor. The i.MX processor features an integrated Neural Processing Unit (NPU) operating at up to 2.3 TOPS, combining advanced 14LPC FinFET process technology to provide more possibility and reliability in machine learning and vision, Artificial Intelligence (AI), advanced multimedia and industrial automation fields. It has 2GB/3GB/4GB LPDDR4, 8GB eMMC and 32MB QSPI flash default memory and storage configuration as well as PMIC. A number of peripheral and IO signals are access through one 0.5mm pitch 314-pin MXM 3.0 gold-finger-edge-card connector. It is capable of running Linux OS and provided with plenty of software resources.

More information about this board can be known from:
https://en.myir.cn/iMX8MPlus/58.html
