Understanding the Challenge: Drawing an Empty Cluster in Graphviz

When working with Graphviz to create complex diagrams, the need often arises to visually represent relationships or categories using subgraphs. However, there are instances where a subgraph does not contain any nodes, leading to a challenge: how do you draw an empty cluster? In this guide, we will dive into this obstacle and provide context around why this situation occurs, along with possible workarounds.

The Problem: Why Doesn't the Empty Cluster Display?

Graphviz utilizes a specific format known as DOT, which is essential for creating graph visualizations. An excerpt from a sample DOT file (shown below) illustrates an attempt to create a subgraph cluster that has no nodes:

[[See Video to Reveal this Text or Code Snippet]]

Despite the intention of displaying a cluster with a label, you might find that it does not render as expected. This brings us to two central issues that are inherent to Graphviz's design:

Size Concerns: An empty cluster lacks nodes to provide context on its dimensions. Graphviz doesn't have a way to determine how large the cluster should be.

Positioning Complexity: Without defined nodes, determining the cluster's location on the graph can become confusing, especially when multiple empty clusters are present.

Exploring Workarounds: Can an Empty Cluster Be Displayed?

Unfortunately, there isn’t a direct feature within Graphviz to create a truly nodeless cluster at this time. However, there are some possible strategies that may help achieve a similar effect:

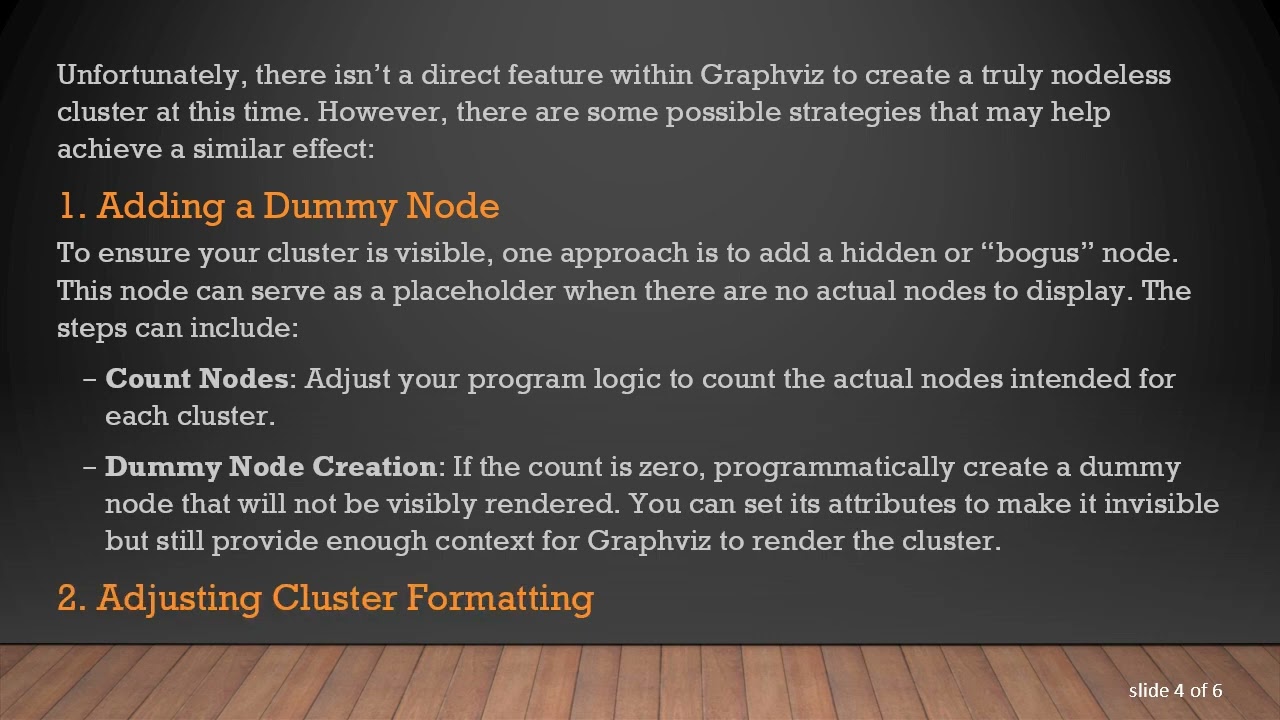

1. Adding a Dummy Node

To ensure your cluster is visible, one approach is to add a hidden or “bogus” node. This node can serve as a placeholder when there are no actual nodes to display. The steps can include:

Count Nodes: Adjust your program logic to count the actual nodes intended for each cluster.

Dummy Node Creation: If the count is zero, programmatically create a dummy node that will not be visibly rendered. You can set its attributes to make it invisible but still provide enough context for Graphviz to render the cluster.

2. Adjusting Cluster Formatting

While the dummy node may not be ideal, it's possible also to adjust the formatting of clusters to make them appear more noticeable, even when empty. Consider the following adjustments:

Set Fixed Dimensions: Instead of relying on Graphviz to determine the size, you can set a fixed width and height for clusters.

Modify Style Attributes: Use other attributes like style=dashed or style=invis on the subgraph to give it a different look.

3. Explore Alternative Graph Libraries

If Graphviz's limitations become too cumbersome, consider exploring other graph libraries or tools that might better fit your visualization needs, especially if displaying empty clusters is a frequent requirement.

Conclusion: Navigating Limitations in Graphviz

Graphviz is an incredible tool for creating graphs, but it does have some limitations, especially when it comes to visualizing empty clusters. Despite the inability to render an empty cluster directly, you can use strategies such as adding dummy nodes or customizing the cluster's attributes to achieve a similar effect.

By understanding these limitations and exploring potential workaround strategies, you can improve your Graphviz diagrams and convey the necessary information clearly.

Feel free to reach out or share your experiences in dealing with similar challenges in Graphviz!
