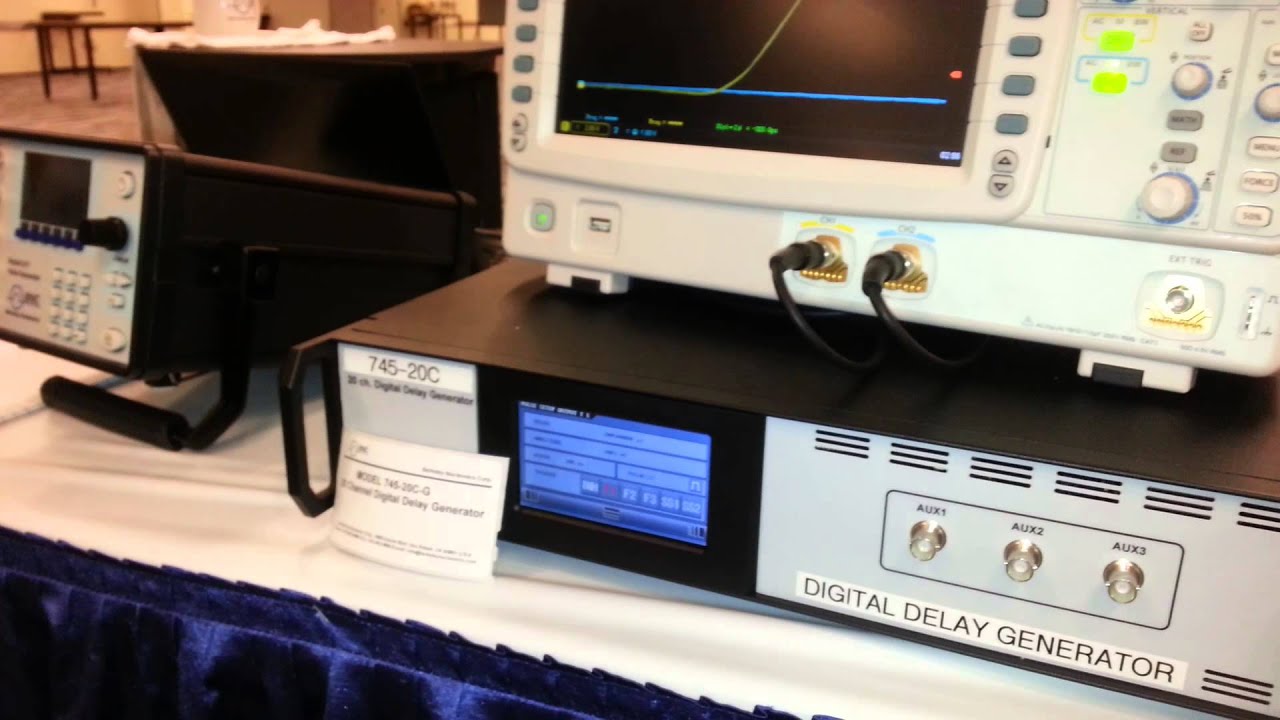

Скачать или смотреть ICALEPS 2013 - Berkeley Nucleonics Demos 20 Channel Digital Delay Generator

http://www.berkeleynucleonics.com/pro...

The Model 745-20C-T Digital Delay Generator provides users with an amazing twenty independent channels of delay and width. The delay resolution on the standard unit is 100 picoseconds with a optional 250 femtosecond timing upgrade on 10 channels. The jitter is also industry leading, with less than 5ps using short delays and an internal clock or less than 25ps with longer delays or external triggers. The Model 745-20C-T delivers 6V into 50 Ohms, meeting all TTL applications. The levels are adjustable on a channel-by-channel basis given you complete time and amplitude domain control. The fast outputs, with risetimes of 1nS, are on the rear panel for an elegant look to complex experiments. The front panel controls are accessed by a touchscreen interface with several programming options for remote control or repetitive test scenarios.
