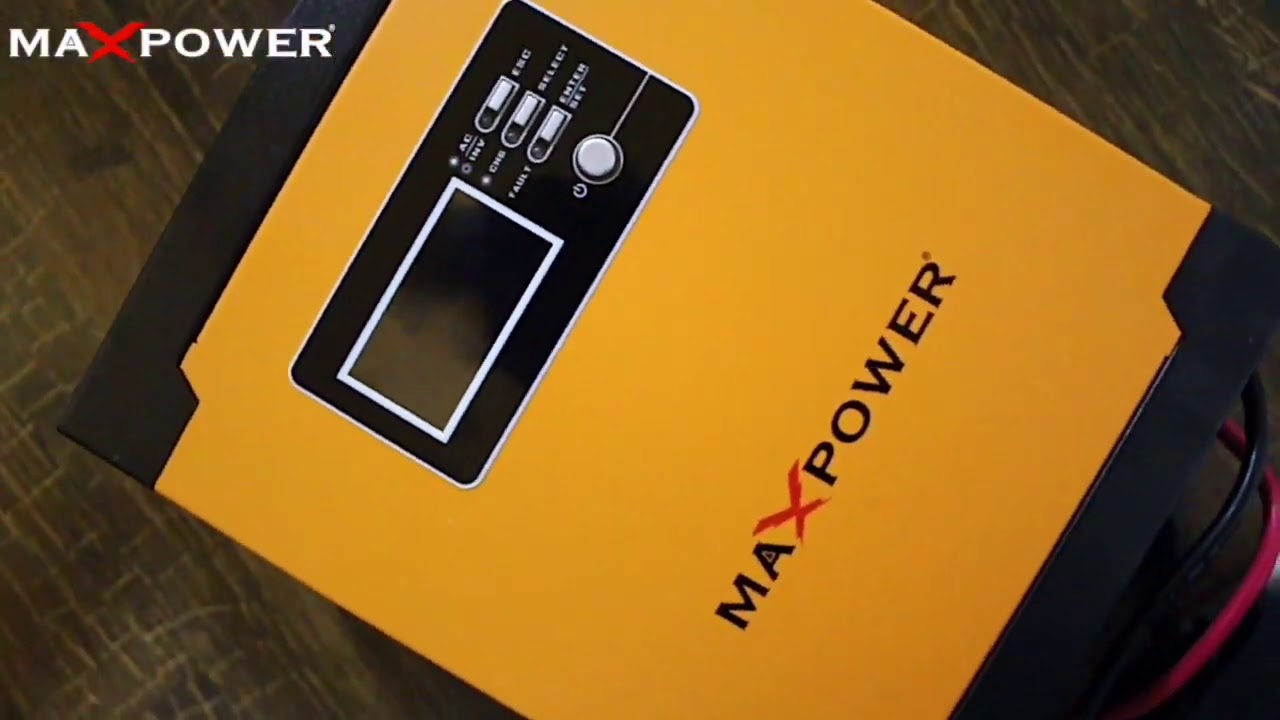

Скачать или смотреть MAXPOWER SG1212 PLUS REVIEW | BEST

CAPACITY 1200VA / 900W
INPUT Voltage 230 VAC
Selectable Voltage Range 90-280 VAC
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT AC Voltage Regulation (Batt. Mode)
230 VAC ±10%
Efficiency (Peak) 82%
Transfer Time 20 ms
Waveform
Simulated Sine Wave
BATTERY Battery Voltage
12 VDC
Floating Charge Voltage
13.7 VDC ± 0.5 VDC
Overcharge Protection
15.0VDC ± 0.5 VDC
SOLAR CHARGER & AC CHARGER Solar Charger Type
MPPT
Maximum PV Array Open Circuit Voltage
100 VDC
Maximum PV Array Power
1000 W
MPP Range @ Operating Voltage
15 ~ 80 VDC
Maxmum Solar Charge Current
40A
Maximum AC Charge Current
10A /20A (Selectable)
Maximum Charge Current
50A
PHYSICAL Dimension, D X W X H (mm)
270 x 212 x 127
Net Weight (kgs) 4.5
OPERATING ENVIRONMENT Humidity
0 to 90% Relative Humidity (Non-condensing)
Operating Temperature
0℃ to 40℃
Storage Temperature
-15℃ to 50℃
