So this is the Jonsbo HX6200D Black. I know there is a white version of this cooler, but I got a good price for this one and wanted it more at the time see how it performs. If I really like this cooler I figure I could get the white version. I also didn’t have the white power supply but now think maybe it would be neat to get more white parts to pure this thing out. This is the Gigabyte GeForce RTX 4060 OC Low Profile 8G graphics card.

I saw this cooler while I was looking at the Jonsbo V11 and N1 Mini-ITX cases. The biggest lure to this cooler was that it would pull air into the case compared to the Noctua NH-L12 Ghost Edition cooler that would push air outwards. This cooler is 63 mm in height, and the large chuck of fins have more mass so this cooler to me looks like it would dissapate more heat. This and the 6 heat pipes to me makes sense as it could possibly displace 200W of heat. Given the AMD 5600X is only a 65W TDP chip, this cooler should be overkill. With the 5800X3D which runs at 105W TDP this also would be an overkill cooler. I like The way this cooler gives memory its own space. This way if I want to I can swap out faster RAM for higher capacity RAM without too much trouble. It also has clearance to allow me to access the SSD.

Timeline
00:00 - Jonsbo HX6200D Black
01:43 - Jonsbo HX6200D Black Unboxed
07:26 - Added AM4 CPU Mount

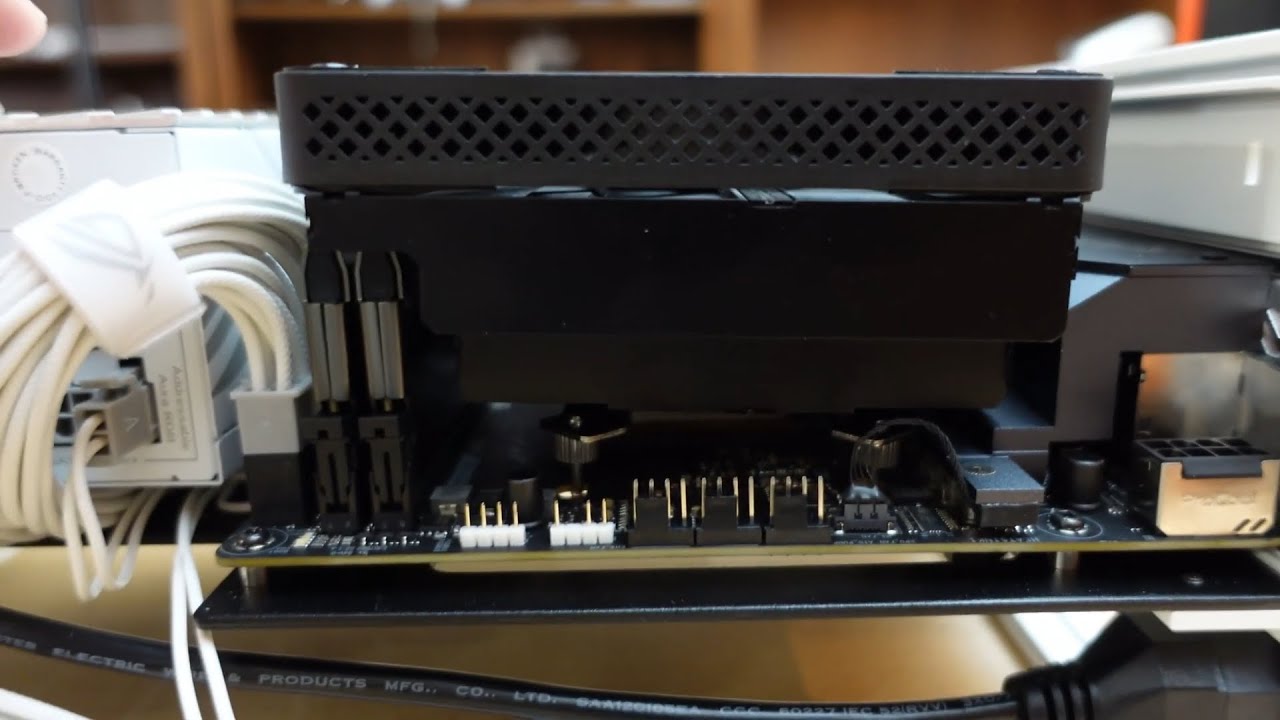

07:55 - Fail… RAM too tall

Jonsbo HX6200D Black
63 mm height / 6 Heatpipes / 200W TDP
Cooler Dimensions 120 x 120 x 63 mm
Intel LGA 1700/1200/115X & AMD AM4/AM5
Fan Dimensions 120 x 120 x 15 mm
Fan speed 700-1800 RPM
Airflow 13.1-62 CFM
Fan noise 18.6-29.7 dB(A)
Static pressure 0.2-2.0 mm H2O
Voltage 7-12V
Connector 4PIN PWM

Gigabyte GeForce RTX 4060 OC Low Profile 8G
182 mm length
2475 MHz / 3072 CUDA Cores
3rd Gen Ray Tracing Cores
4th Gen Tensor Cores / Ada Lovelace Arch
HDMI 2.1a / DisplayPort 1.4a
8GB DDR6 128 bit / 17 Gbps VRAM
PCIe 4.0
DLSS 3.0 & 3.5
Nvidia Encoder
