How an Excavator Main Relief Valve Works: Structure & Function Explained
"Ever wondered what protects your excavator's hydraulic system from overpressure? Meet the main relief valve​ – the system's pressure safety guardian! ⚙️🛡️

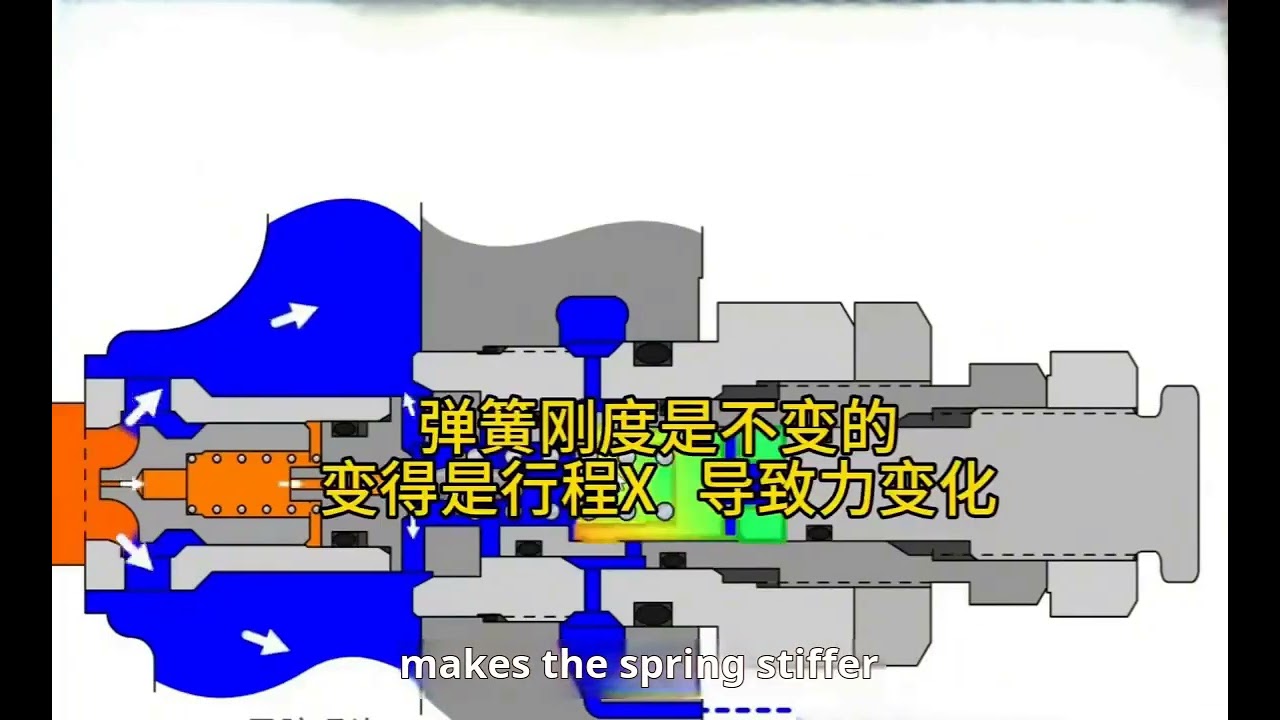

The Main Components:
🔹 Main Valve Body​ – The housing that contains everything
🔹 Main Spool​ – The primary moving part that controls flow
🔹 Spring​ – Provides the closing force
🔹 Spring Seat​ – Supports and positions the spring
🔹 Poppet Valve​ – The precision cone-shaped valve that opens first
🔹 Adjustment Screw​ – Lets mechanics set the pressure limit
How It Works - Step by Step:
Step 1: Normal Operation​
✅ Hydraulic oil pressure is below the set limit
✅ The spring force​ keeps the poppet valve closed​
✅ All oil flows normally to cylinders and motors
Step 2: Pressure Builds​
🔼 As hydraulic pressure increases from the pump...
🔼 The force on the poppet valve​ increases...
🔼 Until it overcomes the spring force!
Step 3: Safety Release​
🚨 The poppet valve opens first​ (at the set pressure)
🚨 This allows oil to flow around the main spool​
🚨 The main spool then shifts, creating a large bypass path​
🚨 Excess oil returns safely to the tank​
🚨 Pressure drops back to safe levels
Step 4: Reset​
🔄 When pressure decreases below the set point...
🔄 The spring pushes everything back closed​
🔄 Normal operation resumes automatically!
Key Points:
🎯 Adjustment screw​ changes spring pre-load = changes pressure setting
🎯 Two-stage opening​ – poppet opens first, then main spool
🎯 Automatic operation​ – no electronics needed
🎯 Critical safety​ – prevents hose bursts and component damage
Pro Tip: Always check and adjust your relief valves during regular maintenance! 🔧
