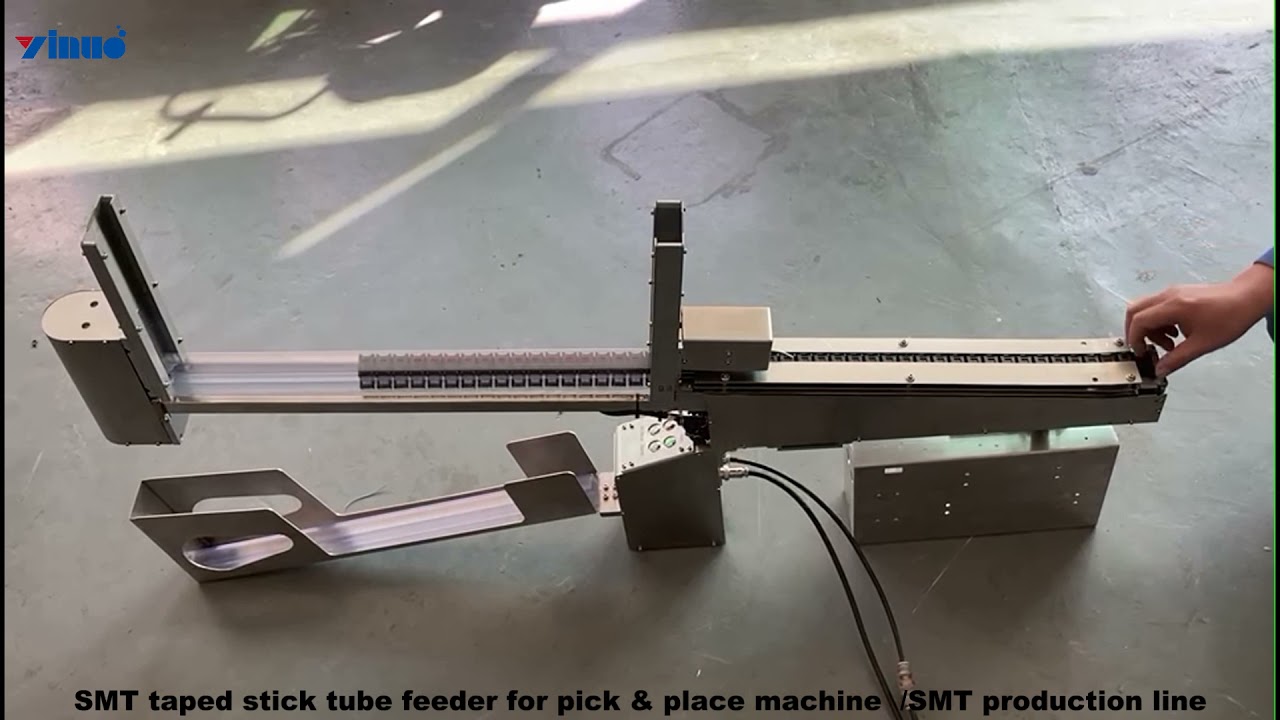

Скачать или смотреть SMT taped stick tube feeder-

The Horizontal Stacked Tube Feeders are high volume, high speed component feeding systems. The HTF feeds components such as connectors, relays, coils, power transistors, and other odd form components packaged in plastic extruded magazines/tubes to robotic cells and flexible placement machines. Tubes of components are stacked in the feeder’s tube handling hopper. A “pusher” tape pushes components from the bottom tube and onto a track leading to the pick point. Whenever a component is picked, the pusher tape advances the column of components until the lead component is in the pick position. Since the components only have to be pushed the length of a component, the cycle time is very short. Whenever the bottom tube is empty, the tape retracts, the empty tube falls from the feeder, and feeding resumes from the next tube. The feeder can handle components from 6mm to 60mm wide and from 6mm to 44.5mm tall.
