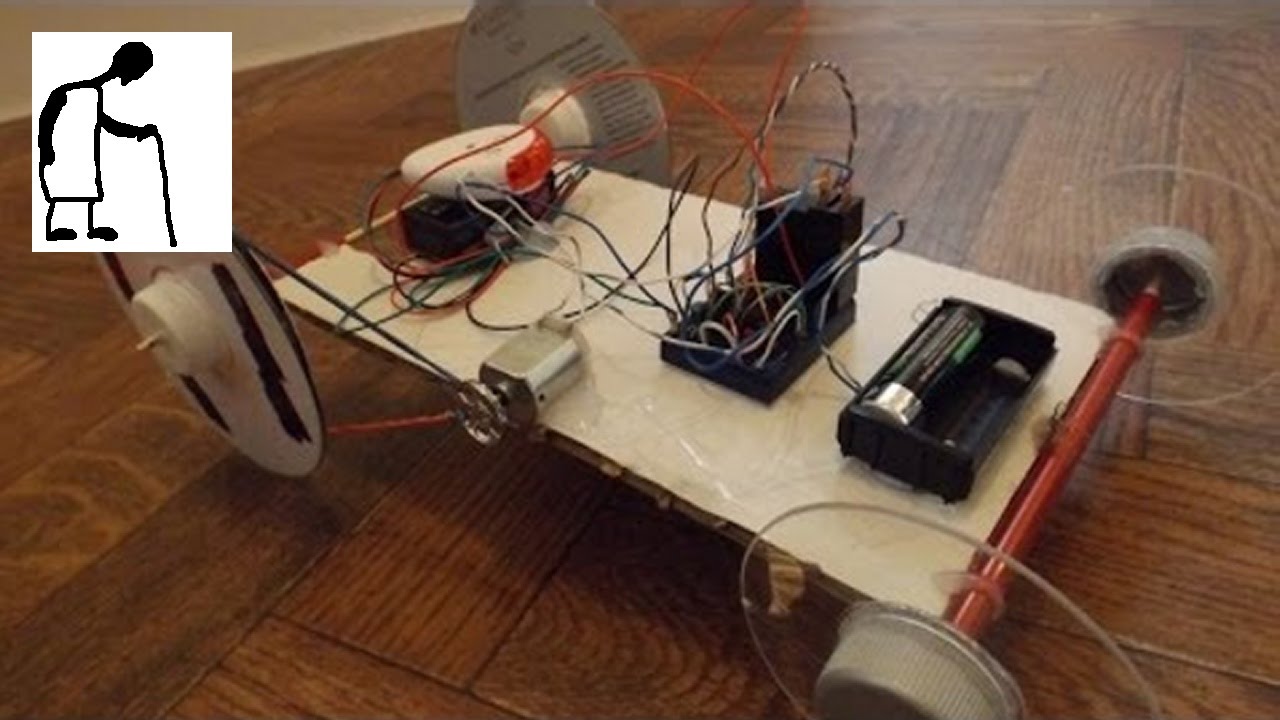

A few weeks back I made this Whistle activated Key Finder Electric Car with a very basic circuit taking the signal generated to make the key finder beep and using it to drive an electric motor. At the end of the video it was clear the circuit could be improved, certainly a short delay timer in the circuit to hold the motor on rather than just reacting to the pulsing beeps would make more sense. In tonight's episode I use a 555 timer to provide a delay to smooth out the pulses from the beeps.
The key finder uses a sequence of beeps that I could probably build a counter to combine into a single pulse, so there is still room for improvement but I probably will leave it alone and move on to something else.

If you have a question it is probably worth reading this video description first because the answer may already be here. To help you find my videos I made a YouTube search guide video    • YouTube App Search and Video Description   or checkout my playlists page https://www.youtube.com/user/GrandadI...

The first attempt at this project is here    • Whistle Activated Key Finder Electric Car

This is a handy video by El profe García on using a 555 timer if you can handle Spanish    • Circuito de Retardo - (Como se hace) Inversor

Main Components
-
Whistle Activated Key Finder
2 x 2N2222 transistor
1 x 555 timer
1 x 100K resistor
1 x 100K variable resistor
1 x 1K resistor
1 x 47 microfarad electrolytic capacitor
1 LED
1 diode
1 relay
1 small electric motor
1 x 9v battery
1 x AA battery and holder
I think that is about all the main items + the rubber band powered car I converted
