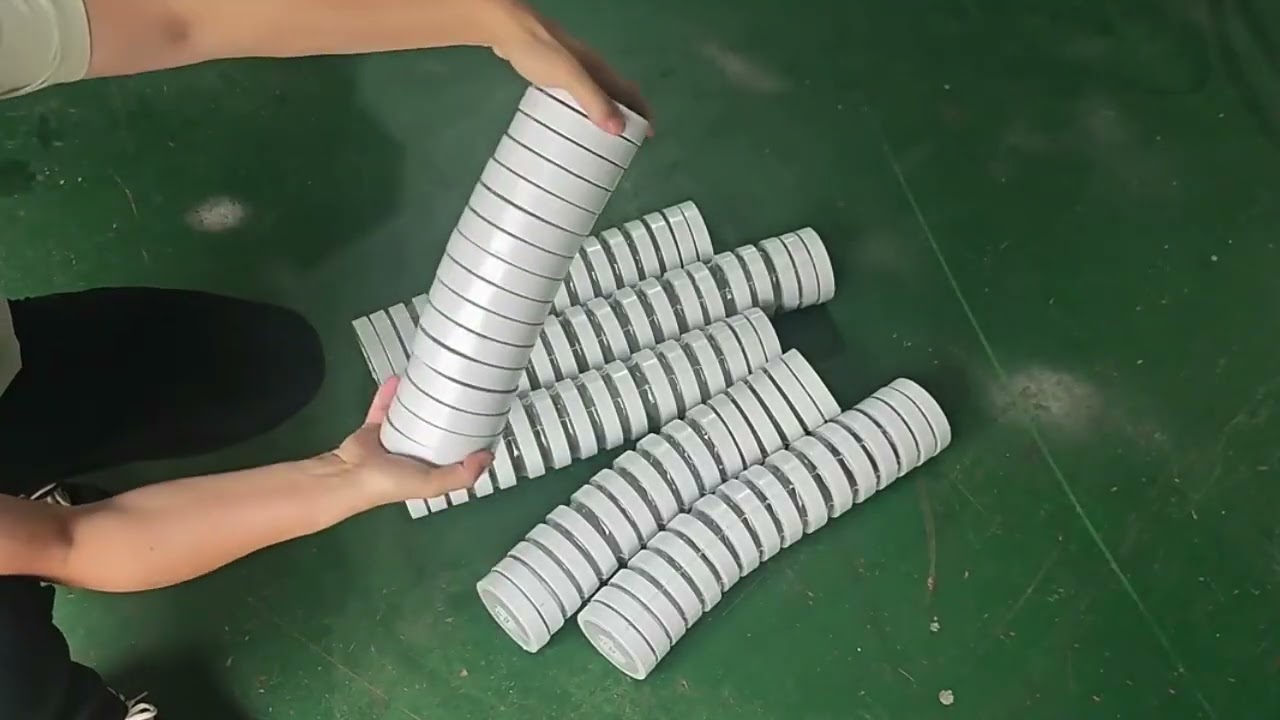

Скачать или смотреть Accordion Type Masking Tape BOPP Tape PVC Tape Sleeve Sealer Shrink Packing Machine

Email: jackdu999@penglaipacking.com
jackdu999@yahoo.com
WhatsApp: +8615811882441
Website www.penglaichina.com
www.penglaipacking.com
Performance Features

•TFZ6540L adopts the unique design and compact structure. It is very suitable for accordion type tapes packing.
•Adopts straight into and out design. Especially suitable for carton or larger items collection or single shrink wrapping.
•Sealing knife uses the special steel knife with Daikin Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking.
•Imported photoelectric sensor, positioning accuracy, fast response.
•Adopt Panasonic PLC programmable controller and WEINVIEW 7-inch man machine interface, simple operation.
• The user-friendly control box makes the operation much easier.
•Equipped with pressure device makes sure the position is stable even for the light product during the procession.
•The sealing blade itself is also quipped with automatic protection function which effectively prevent from accidental cutting.
•The entire machine realizes unmanned operation with the production line connecting.
•Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film.

•BS6040PE heat shrink tunnel adopts hot air circulation motor makes the hot air in the tunnel is even, constant temperature.
•The chain conveyor made of solid steel covered with imported durable silicone tube.
•The separate control box makes sure the electrical components with good ventilation.
•With cold wind equipment which play an effective role in cooling.
Application Range

This machine is mainly applied to the longer products, such as cartonspaper trays which contain drink, beer, water, canglass bottles collectionsingle shrink wrapping.
Technical Parameter
Model

TF6540L
Power supply

220/380V 3PH 50/60Hz
Working power

1.8KW
Max. Packing Size

(W)≤400mm;(H)≤100mm
Max. Sealing Size

(W)600mm
Table height

850mm
Packaging speed

5-15pcs/min(depend on product size)
Air source

6kgf/cm2
Shrink film

PE/PVC
Max film size

(W)≤580mm;(D)≤250mm;(weight)≤35KG
Sealing form

Sleeve type
Machine size

L1550×W1280×H1750mm
Overall dimension

L1720×W1380×H1820mm
G./N. weight

432/334kg
Model

BS6040PE
Voltage

220/380V 3PH 50/60Hz
Power

22KW
Table Height

800±50mm
Conveying Load

30KG
Tunnel size

L1800×W600×H400mm
Conveyor Speed

0-15m/min
Machine Size

L2800×W850×H1620mm
Package Size

L2900×W950×H1690mm
G./N. Weight

540/450Kg
