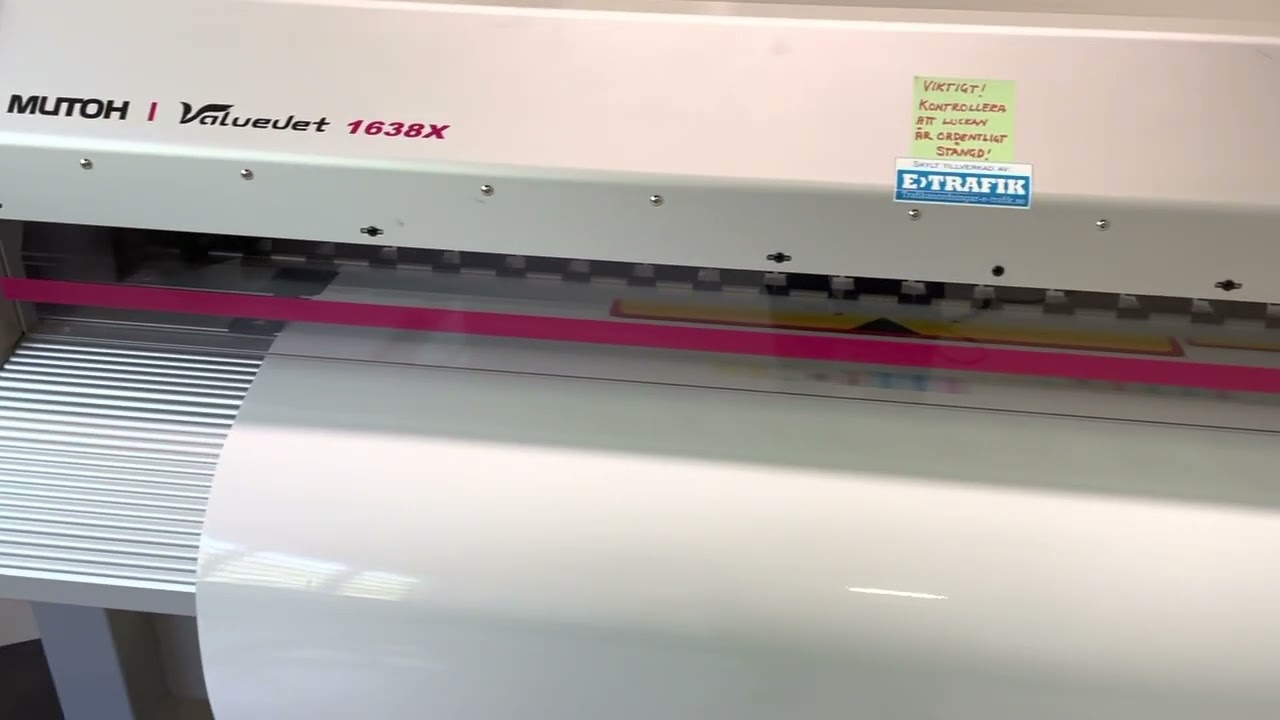

Storformatskrivare Mutoh VJ-1638X Traffic Jet Print System

Har använts för att skriva ut trafikskyltar, har varit i bruk fram till dagens datum.

Maskinen köptes in 2017 för ca 270000kr. Printern rekommenderas en genomgång och service innan den kan tas i bruk då den stått oanvänd några månader.



Model Name

VJ-1638X

Print Technology

Drop-on-demand Micro Piezo Inkjet Technology

Print Head

2 (staggered setup)

Head Heights

Low:1.5mm / Middle:2.5mm / High: 4.0mm

Max. Media Width

1625mm

Max. Print Width

1615mm

Ink Type

Eco-solvent ink

MSINK 3A ink

Ink Colors

KCMY - 4 colors or KCMYLcLmLk - 7 colors

Ink Volume

220ml / 440ml / 1000ml bag (Need dedicated adapters)
Lc, Lm and Lk are only 440ml.

Ultra Value ink

Ink colors

KCMY - 4 colors or KCMYLcLmLk - 7 colors

Ink Volume

1000ml bag (Need dedicated adapters)

Print Resolutions

1440/1080/720/540/360dpi (10 modes as standard + 19 modes as custom**)

Interface

Ethernet 1000BASE-T

Media Measurements*

φ150mm/ 2" & 3" / 30kg or less

Heater Control System

Pre-heater / Platen-heater / After-heater（30-50℃）, OFF

Power Supply

AC 100-120 V / AC 200-240V - 60/50 Hz

A-property Acoustic Power Level (Actual Measured Value)

69.8dB or less

Printer Accuracy Guaranteed Environment

Temperature: 20～30℃ Humidity: 40～60%RH (Non Condensing)

Power Consumption

Operating Status: 1100W or less (main), 1250W or less (heater)
In standby: 45W or less

Machine Measurements

W 2698 x D 885.5 x H 1261mm

Packing Size

Printer: W 2880 x D 1150 x H 851mm, Weight: 249kg

Stand: W 2245 x D 395 x H 250mm, Weight: 38kg

Take-up system: W 2336 x D 341 x H 409mm, Weight: 30kg

Printer Weight

187kg including a stand

Option

Feed and take-up system VJ-16TUP80 (80kg)

1,000ml cartridge adapter VJ-HCIPADPT

Cutter blade VJ-CB



Länk för specifikationer från tillverkaren klicka här.
