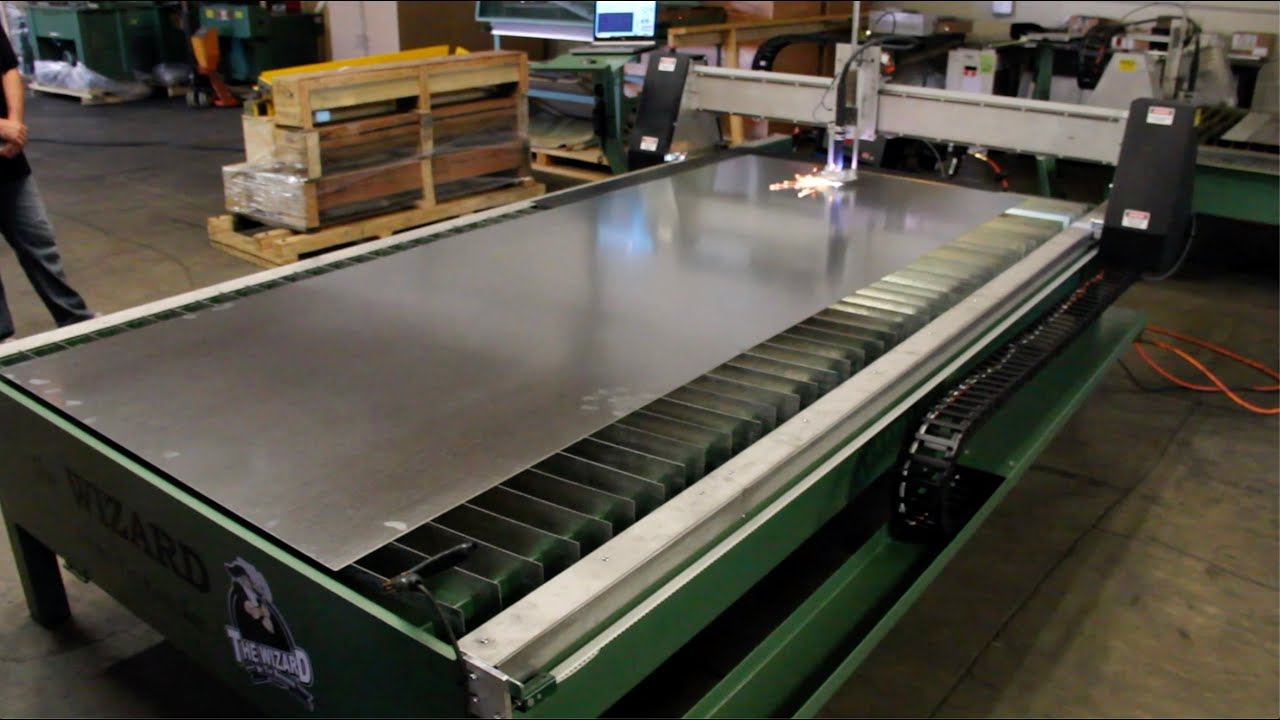

Demonstration of the The Wizard 5×10 HVAC Plasma System.

The Wizard plasma cutting system was developed specifically for the HVAC contractor/fabricator. It is designed to do all that a user could want and meet the user’s budget. Nothing has been sacrificed except cost to our customer.

YOU WILL NOT FIND GREATER VALUE IN A NEW PLASMA MACHINE!

CUTTING TABLE FEATURES:
Heavy duty 5’x10′, all-welded steel construction capable of a 2000 lb load (full sheet of 1″plate)
2 1/2″ x 60″, 16 ga. slats for economical replacement
Efficient down-draft exhaust design, activated & deactivated automatically as cutting starts & stops
Hinged cleanout doors at both ends makes cleanout easy; slat removal not necessary
X-axis has dual-drive motors and simple maintenance-free roller guides for smooth travel
Y-axis has low-maintenance V-Groove Wheels and Rails
Homing feature that automatically squares the gantry
Direct-drive, high-torque motors to eliminate position error
Solid 4″x 6″ thick wall tube gantry
Aluminum gantry construction means less moving weight, great acceleration, and enhanced repeatability
Gantry drive with 3/4″-wide rust and grease free, industry-proven open-gear belt drive used on robotic applications
Drive system delivers position repeatability of approx. +/- .0005in
Cutting speed 300 IPM, rapid speed 600 IPM
Gantry has been tested to speeds of 1000 IPM
Precision Drop Head Control
Magnetic break-away torch protection

The Wizard is a full-featured machine with all the capabilities of the more expensive plasma cutting systems, but it is affordably priced.

MADE IN THE USA!!

Available from your local distributor.
