Made this video for someone but figured that some of you might find it interesting.
Basically this is another Chip in the X-Boost line of drivers i make that can be used to run 638nm Mitsubishi diodes off of 3V or like a 2x AA 1.5V setup. Pen style or something.

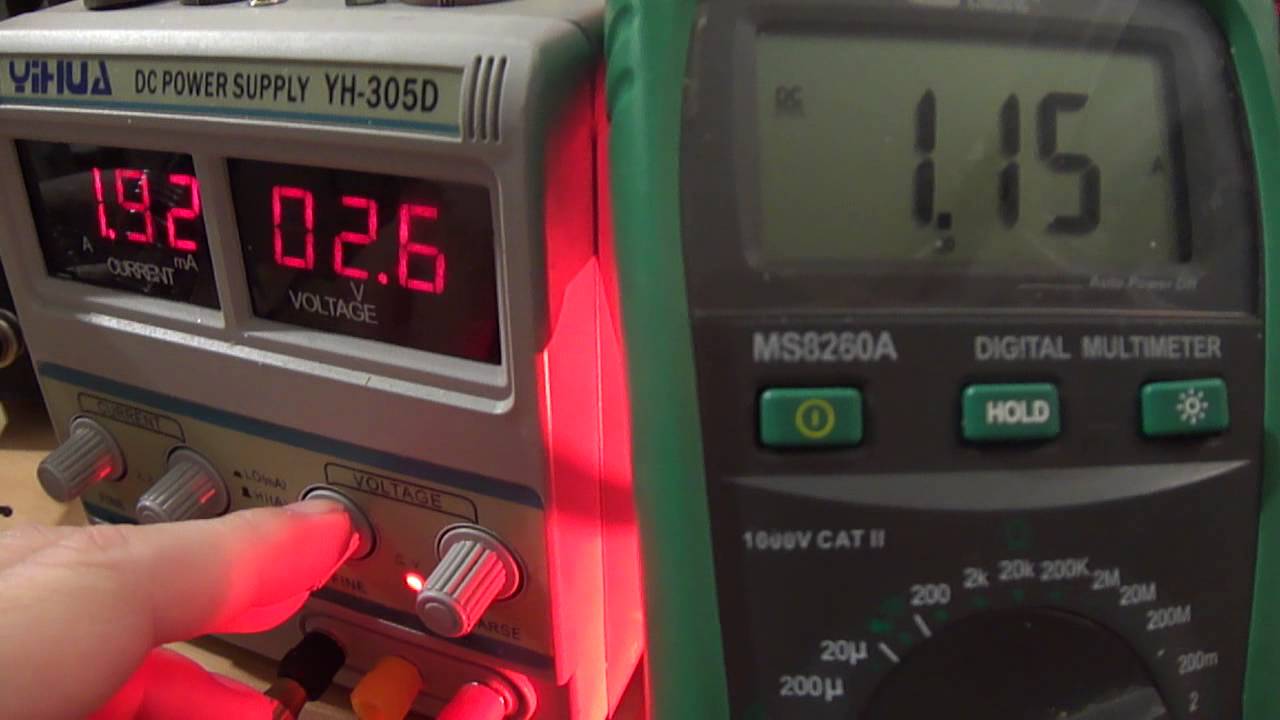

Normally you would run a Mitsu "73" diode at 1.1A so as you can see from this video it will have no problem running the 500mW diode at 1.1A for ~1W of power. You can run it also of a lifepo4 cell that are 3V too which usually charge up to ~3.6v.

Also you can run the 300mW "71" diodes too at 900mA if you want with this same setup.

So basically in short if you want to run a Mitsubishi 300mW/500mW 71 or 73 diode off of 2x 1.5v AA or a single 3V cell you can now do it. Iam sure you can also use 2x 1.5v AAA cells but at a lesser currant.

Thanks for watching.:)

Ill probably be making a X-Boost Switch with this chip for you guys soon.:)
