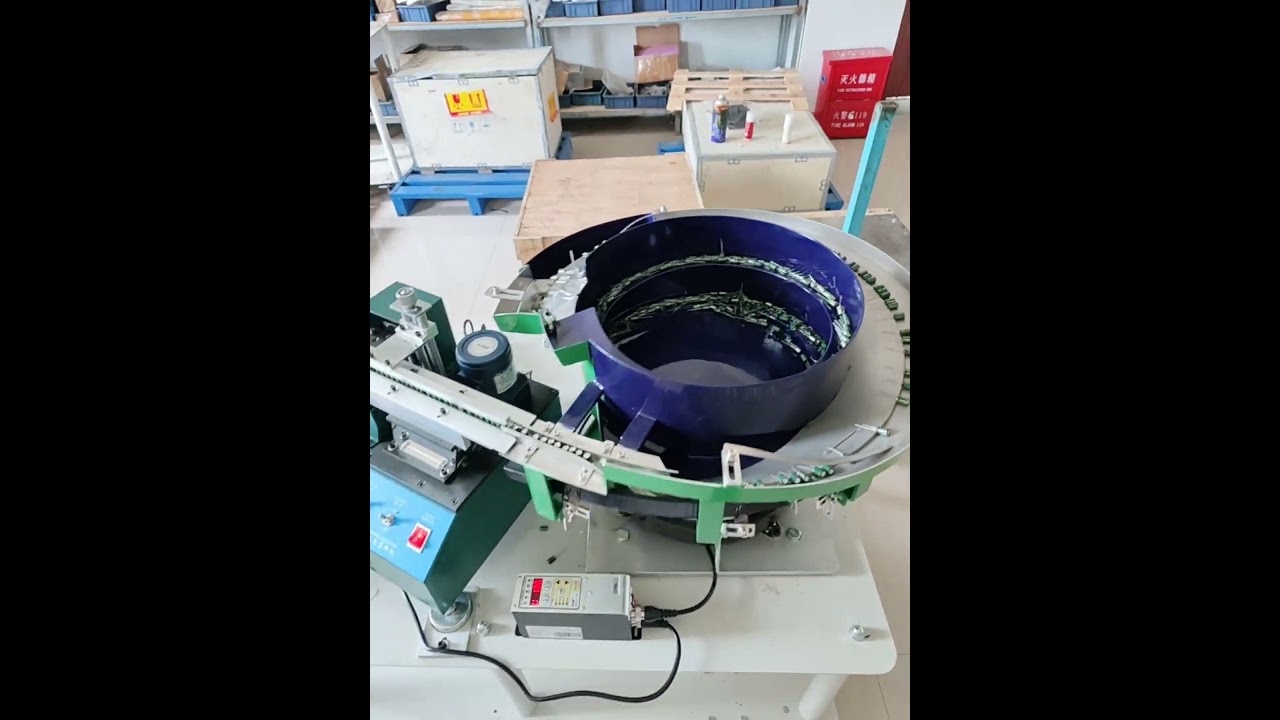

Скачать или смотреть XYR-104C Fully Automatic Bulk Electrolytic Capacitor Lead Cutting Machine/XYR-104C全自动散装电解电容剪脚机

Suitable for cutting the pins of bulk radial parts, such as capacitors, crystals, LEDs, MOS tubes, etc.
1. Suitable for mass production, saving manpower.
2. The shortest can be cut to 3mm (shorter needs to be customized).
3. The pin cutting machine can be used in combination with the feed tray, or separately.
4. Both the machine body and the feed tray adopt a split double positioning method to avoid damage caused by collision at the interface.
5. The vibration shrapnel of the feed tray adopts imported fiberboard, which has a long service life and is not easy to break and age.
Tool material: SKD11

Detailed description:
Voltage: 220V AC 60HZ/50HZ 250W
Dimensions: L880*W700*H900 (Unit: MM)
Weight: 125KG
Efficiency: 8000~10000pcs/H

适用于散裝径向零件切脚作业，如电容，晶体，LED，MOS 管等。
1、适合大量生产，节省人力。
2、最短可切至 3mm（更短则需訂制）。
3、切脚机与送料盘結合使用，也可分开使用。
4、机身与送料盘均采用分体双定位方式，可避免介面处碰撞造成的损
坏。
5、送料盘震动弹片采用进口纤维板，寿命长，不易断裂老化。
刀具的材质：SKD11

详细说明：
电压：220V AC 60HZ/50HZ 250W
尺寸：L880＊W700＊H900 (單位：MM)
重量：125KG
效率：8000~10000pcs/H
