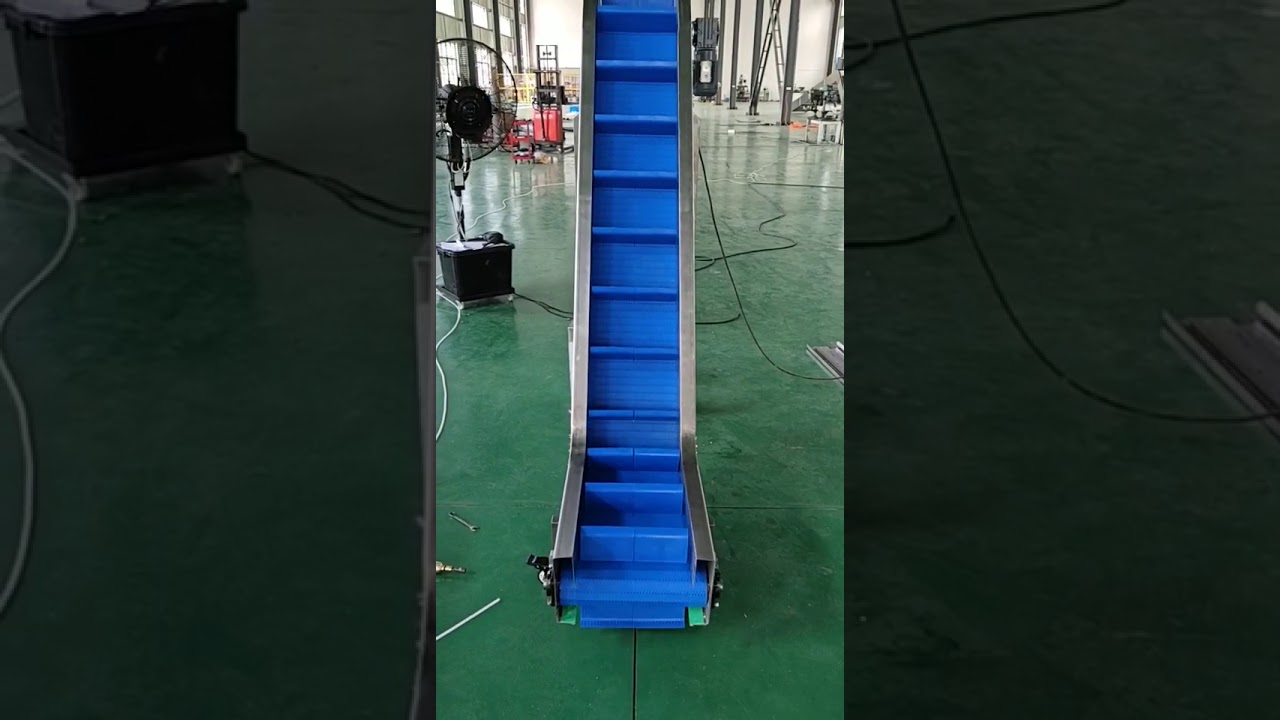

Скачать или смотреть Blue modular belt inclined conveyor Z conveyor artical conveyor testing in MAXSEN conveyor factory

Modular belt conveyor are a middle ground option between belt conveyors and chain conveyors.There are straight belt conveyor,curved modular belt conveyor,modular belt inclined conveyor,modular belt spiral conveyor etc. A modular belt consists of individual plastic modules usually linked together with joint rods. This modular belt is driven by chain spockets,the base frame of the conveyor is constructed on standard profile supports.The characteristics of modular belt conveyor system as followings:

1.Dimension(L*W*H): customized size,various lengths & configurations to suit application.
2.Belts are available in plastic POM or stainless steel, cross flights optional
3.Fixed or variable speed.
4.Application: food and beverage production,production line,assembly line.
5.Simple, open construction makes for fast easy cleaning and low maintenance demand.
6.It addresses important aspects of today's packing processes: easy to clean, smooth handling of products, safe for operators, robust design, long life, and easy to maintain with a low cost of ownership.
7.The modular and standardized design ensures fast set up, and facilitates rapid future extensions and changes.
8.The conveyor belt consists of plastic hinged links connected by plastic rods.
9.Widths of belt can be delivered: 50.8mm,75mm,76.2mm,80mm,101.6mm,105mm,135mm,150mm,152.4mm,160.3mm,303.4 mm,304.8mm,330mm. 10.Picth:12.7mm,15.2mm,19.05mm,25.4mm,27.2mm,38.1mm,50.8mm,57.17mm,46mm,
10.Plain bends offered up to 90°. The assembled belt forms a wide, flat, and tight conveyor surface.
11.Modular belt model: MX100, MX200, MX300,MX400,MX410,MX420,MX430,MX440,MX450,MX460,MX470,MX480,MX500,MX510,MX600,MX610,MX700,MX710,MX720,MX730,MX740,MX800,MX900 etc.
12.Three standard configurations are available in the multiparts range:
The S-type conveyor
The “walking stick-type conveyor”
The U-type conveyor

For further information, please write to us by [email protected].
