The Challenge of Point Cloud Clustering in ROS

If you're diving into the world of robotics and using the Robot Operating System (ROS) along with the Point Cloud Library (PCL), you may encounter certain challenges. One frequent problem is visualizing clustering results correctly in tools like RViz or PCL Viewer. Many newcomers find that their data appears empty or they don’t receive the expected cluster data. In this post, we’ll discuss this common issue and walk through a solution that can help you visualize your point cloud clusters effectively.

Understanding the Problem

A user expressed their struggle to display the result of clustering point clouds:

After implementing a clustering algorithm, they found that nothing was being displayed in the visualization tools.

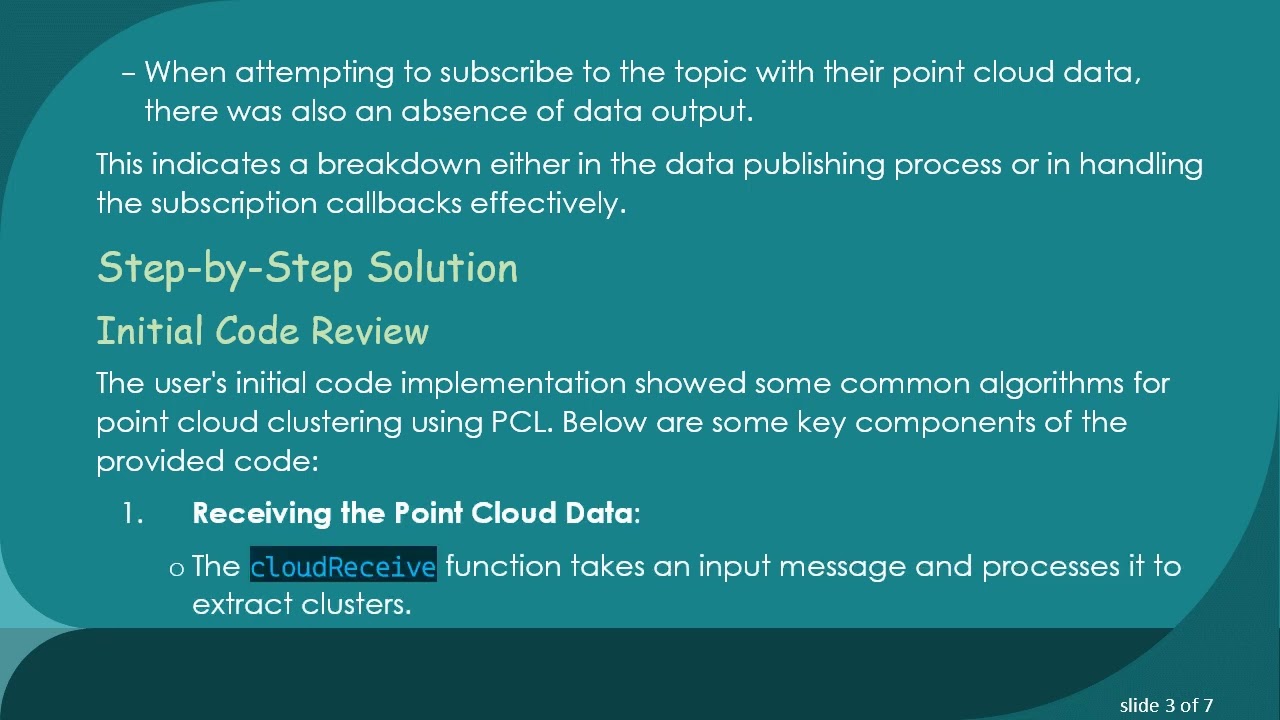

When attempting to subscribe to the topic with their point cloud data, there was also an absence of data output.

This indicates a breakdown either in the data publishing process or in handling the subscription callbacks effectively.

Step-by-Step Solution

Initial Code Review

The user's initial code implementation showed some common algorithms for point cloud clustering using PCL. Below are some key components of the provided code:

Receiving the Point Cloud Data:

The cloudReceive function takes an input message and processes it to extract clusters.

Clustering Process:

Using the pcl::EuclideanClusterExtraction, various parameters like ClusterTolerance, MinClusterSize and MaxClusterSize are set to define how clusters should be formed.

Publishing Clusters:

Individual clusters were then intended to be published to unique topics, but the way topics were named may have led to issues.

Identifying the Key Issue

The main problem surfaced in the method of forming the topic names for publishing clusters. The original implementation was using ASCII values to convert integers to string, which often led to unfavorable results or incorrect topic naming.

Implementing a Better Approach

To resolve this issue, a solution was proposed to replace the ASCII conversion with a more reliable method using boost::lexical_cast. This allows converting integers to strings effectively without worrying about ASCII manipulation. Here’s the revised code snippet:

[[See Video to Reveal this Text or Code Snippet]]

Why This Works

Reliability: The boost::lexical_cast is a robust and easy way to convert numbers into a string, ensuring that your topic names are correctly formatted and prevent any misinterpretation.

Separation of Clusters: By using unique topic names, each cluster can be sent separately and visualized independently, enhancing clarity in RViz or other visualization applications.

Conclusion

By addressing the method of topic naming and replacing ASCII conversion with boost::lexical_cast, your point cloud clustering implementation in ROS can become more efficient and effective. This improvement ensures clearer visual output, making it easier to work with point clouds and clusters in robotic applications.

For anyone learning PCL and ROS, remember to double-check how you manage data and topic structures. Implementing small changes could vastly improve how your clusters are visualized and handled.

Hopefully, this guide sheds light on the issue and provides a clear pathway for newcomers in the field facing similar challenges. If you have any questions or further concerns, feel free to reach out!
