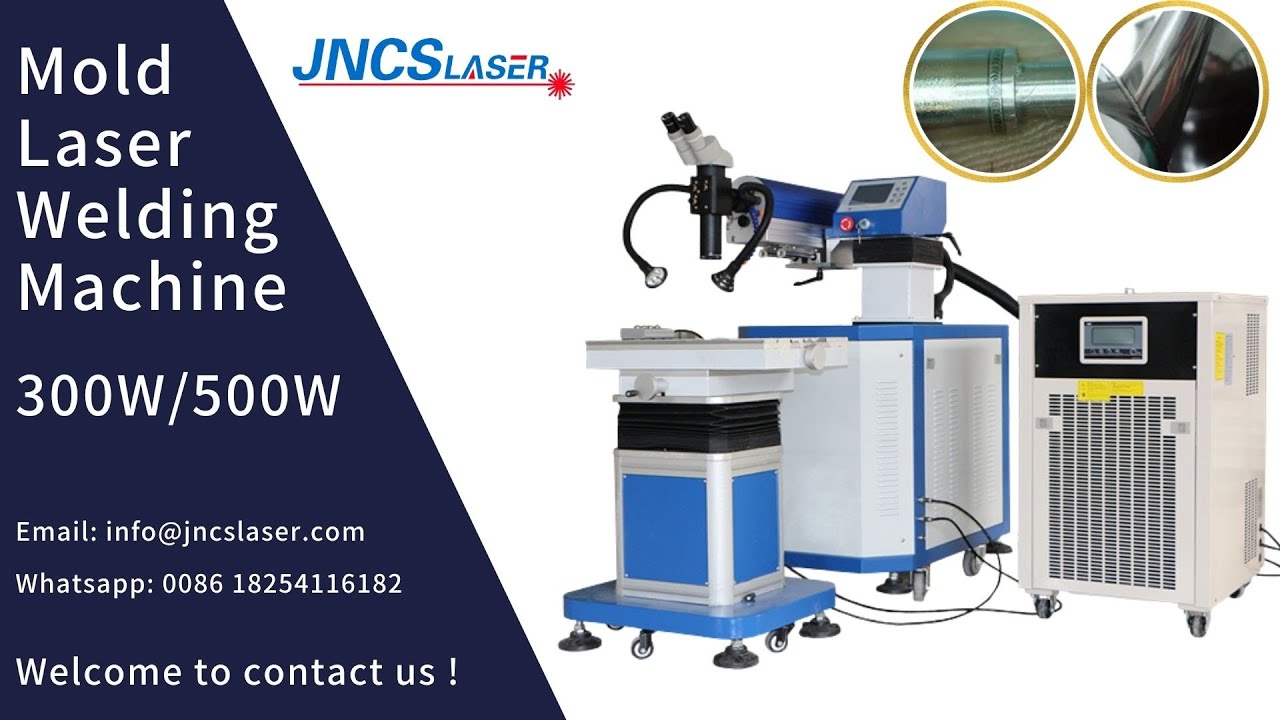

Скачать или смотреть Laser Welding Machine for repairing mold

Laser welding machine for repair mold, mold laser welding machine Jinan Consure Electronic Technology Co.,Ltd Whatspp/Mobile:0086-18254116182 | Skype: consurelaser Web.: www.jncslaser.com | Email: [email protected] Facebook:   / jncslaser
  / consurelasercnc   Youtube:    / @consurelasermachine

Features:
1. The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects.
2. Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.
3. Large welding depth, firm and beautiful appearance, full melting, no traces , no bulges or dents
4. Small heat affected zone, won't cause deformation of the mold.
4. It is able to work 24 hours continuously, stable performance
5. Human-based design accords with ergonomics, no fatigue after long time working.
Application Materials:
mould repair laser welding machine can be widely used in many fields, such as as mold laser welding machine widely used in molds, precision injection molding, die casting and punching mold, stainless steel products and other hard materials cracks, chipping, grinding and wear seal repair, welding, cell phones, jewelry, electronics, sensors, precision machinery, communications, crafts and other industries.

Model CS-300
Laser working substance Nd3+：YAG ceramic cavity
Max. single-pulse energy 50J
Max. peak power 7kW
Laser wavelength 1064nm
Focal beam diameter Ф 0.2-3.0mm adjustable
Ф 0.2-3.0mm adjustable 300W
Min. molten pool 0.3mm
Pulsed width 0.3-20ms adjustable
Pulse depth 0. 5-1mm
Pulse frequency ≤50Hz adjustable
Electricity 220V,50HZ,60A
Power cooling system internal air cooling
YAG cavity cooling external water chiller
Controlling system PLC programming
Observing system Microscope
Machine package size 1100*800*1300mm
Machine Gross weight 150KG
Water chiller package size 800*680*1000mm
Water chiller Gross weight 80KG
#laserweldingmachine #moldwelding #welding
