Press Feeding System with Straightener and Decoiler

Press Feeding feature by PLC program from Schneider
Press Feeding is carried out by NC Servo. Operating with Computerized Numerical Control by PLC program from Schneider
The electrical parts from Schneider, including Servo motor, driver, encoder, interface screen, and so on.
High precision feeding: to meet the coming of hi-tech industry, controlled by computer closed-circuit feedback system to keep precision degree within +/-0.15mm
Feeding function: input 20 sets of different feed lengths, each group provides 999 times for punching or cutting to satisfy the processing of special products.
High-efficiency release device, match with adjustment of signal from the cutter or press machine through a cable wire.
The setting of feed length: directly input feed length on the control plate, and then it can reach needed distance, feed length max 9999.99mm. speed max 100m/min

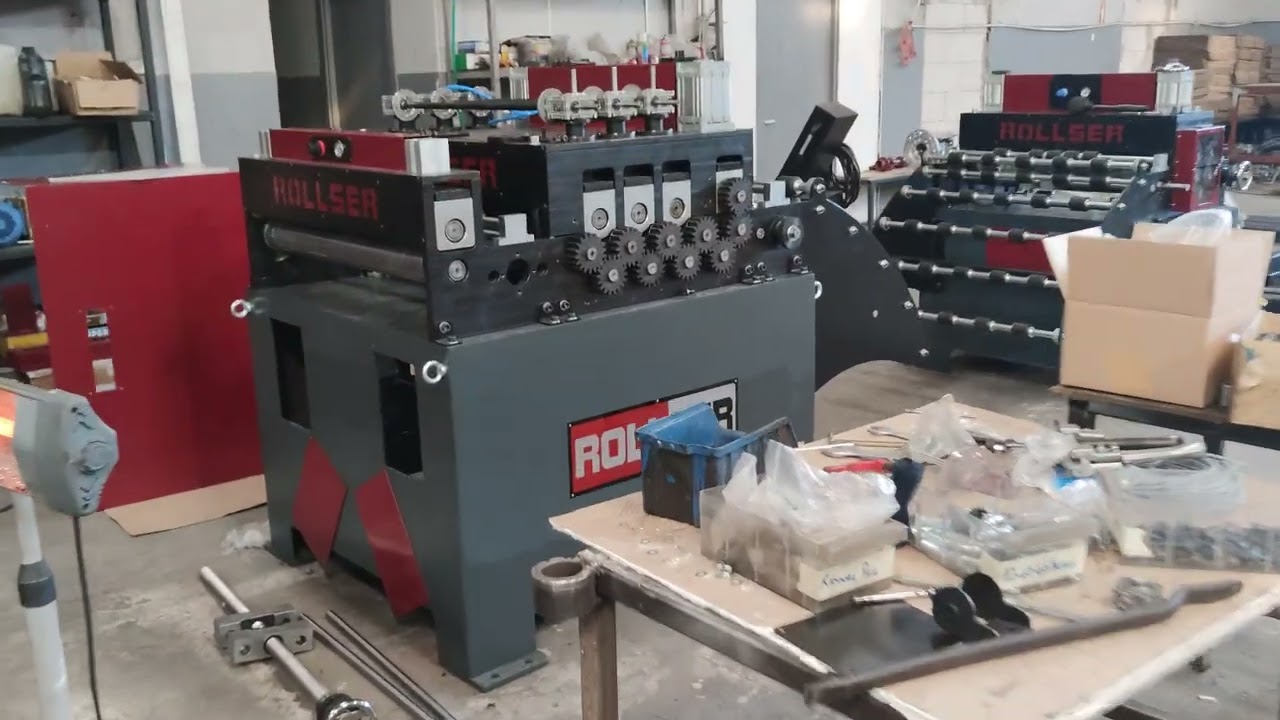

II. Straightener
3 in 1 decoiler and straightener save space and increase productivity.
Straightener and thickness adjustment by 4 worm gear micro-adjuster with reading 0.1mm advance reference indicator.
Feed and straightener roll with hard chrome plated.
High rigid mechanical design sturdy construction, and high power output to secure proper straightening and feeding during the speed increasing efficiency.
Electric loop control system.
Power hold down arm device
Inverse curve roll, easy to set up the curve up or down of feeding exit direction.
Feeding line easily adjusted by advanced worm gear screw Jacks device
Coil Material Entry support Assembly can bring the material into pinch rollers Automatically to save manpower and increase safety,
Coil side guide
Outgoing catenary to assist and support the material
A Cluster gear set maximizes the transmission of horsepower.
Transformer
