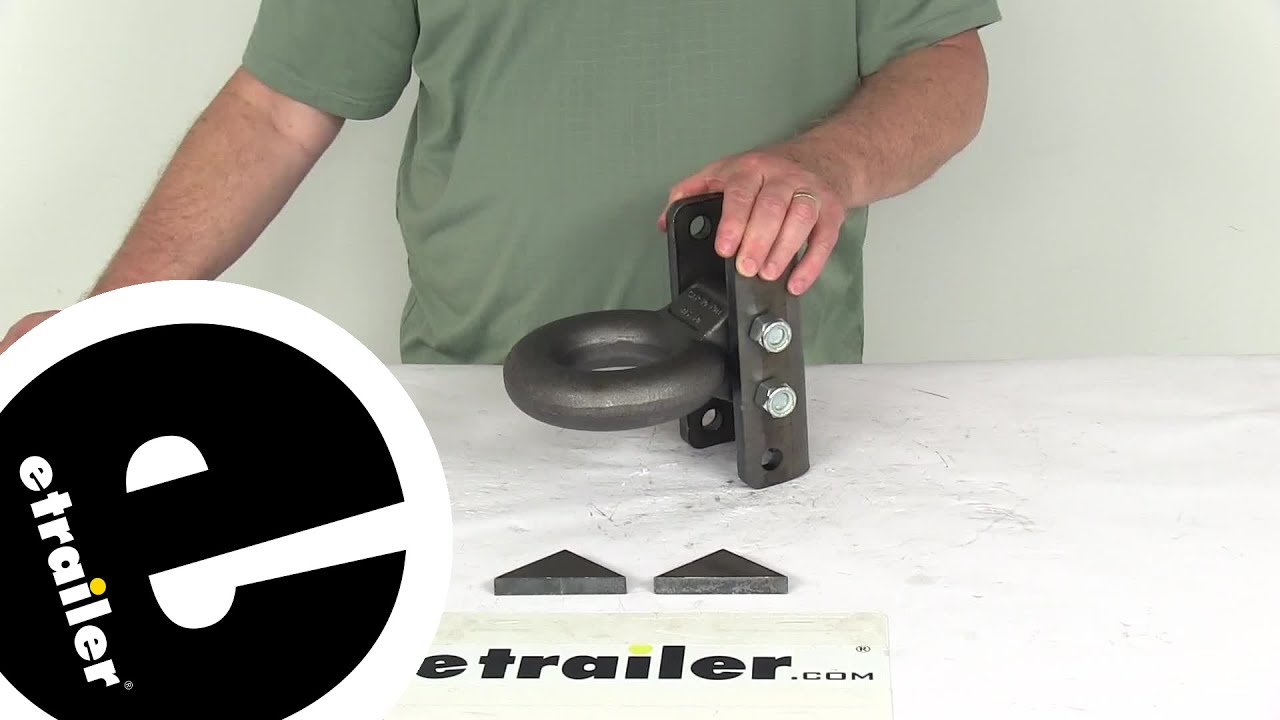

Speaker 1: Today we're going to look at the three position adjustable lunette ring with the 3 inch heavy-duty channel. It has a 20000 pound weight capacity. Now this adjustable lunette ring will allow you to adjust of the tow line for level towing. It comes with a forged steel eye with the 3 inch interior diameter, and a three position formed steel heavy-duty channel bracket.And the three positions would be if you have it here, here or here. Common use for this is construction trailers or equipment haulers. Basically you just simply bolt the eye into the channel bracket at the position that will fit your need and then connect to the pinto hook on your truck.

As you can see the fasteners are included with this. The three position bracket will come with even gussets right there that you can weld on for even greater support.All these parts have a plain finish to them. The maximum gross trailer weight capacity is 20000 pounds. Maximum vertical load or towing weight is 2000 pounds. Now I'm just going to give you a few measurements.

I'm going to start with the channel. The channel height is going to be right at 7 5/8 inches. The overall width of the channel from from outside to outside is is going to be right at 4 inches. Inside is right at 3 inches.And then the mounting holes on the side, the measurement from the center of one to the center of the other, is going to be right at 2 inches. The ring itself, is going to have 3 inch inside diameter.

The overall diameter, edge to edge, is going to be right at 6 1/4 inches. And the depth, is we measure from the very front to the very back of the channel is going to be right at 8 1/2 inches deep.And that should do it on the review on the three position adjustable lunette ring with the 3 inch heavy-duty channel and a 20000 pound weight capacity.
